High-Power IP65 RGBL Moving Head Wash with Pixel Control

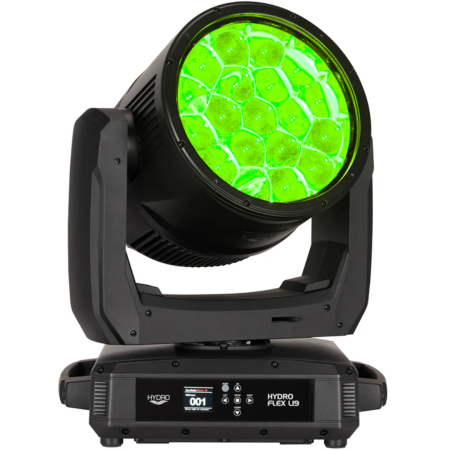

The American DJ Hydro Flex L19 is a 1,140W professional moving head wash fixture designed for festivals, concerts, and large-scale productions. Featuring nineteen 60W RGBL LEDs, it produces up to 17,000 lumens of output with precise pixel control, linear white CCT adjustment (2,700K–10,000K), and a motorized zoom. Its IP65-rated housing makes it a reliable solution for both indoor and outdoor environments where durability and high performance are essential.

American DJ Hydro Flex L19 Competitive Differences

19x 60W RGBL LEDs with 50,000-hour rated lifespan
Massive 17,000-lumen output with calibrated color consistency
IP65-rated rugged housing for outdoor use
Motorized zoom: 8°–56° (beam: 5°–38°, field: 8°–56°)
Individual pixel control with built-in pixel effect programs
Virtual CMY DMX control and virtual color wheel

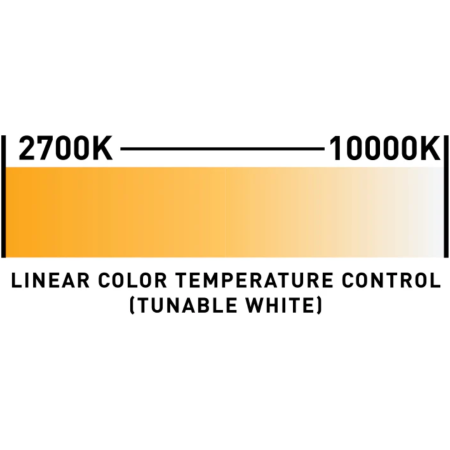

Wide linear white color temperature control (2,700K–10,000K with presets)
Aria X2 wireless management system with over-the-air updates
DMX, ArtNet, sACN, KlingNet, and RDM compatibility
Selectable LED refresh rates (900Hz–25kHz) and multiple dimming curves

American DJ Hydro Flex L19 Description

The Hydro Flex L19 is built for lighting professionals who demand power, precision, and reliability. Its nineteen 60W RGBL LEDs provide extraordinary brightness with finely tuned color calibration for consistent results across multiple units. With a motorized zoom range of 8°–56°, this fixture transitions seamlessly between tight beams and wide washes, making it an adaptable choice for diverse stage designs.

Advanced features include virtual CMY mixing, built-in macros, and linear white color control with presets from 2,700K to 10,000K. Pixel mapping capabilities with effect programs add creative flexibility, while smooth 0–100% dimming and selectable dimming curves provide refined control for different applications including stage, TV, and theatre.

Its IP65-rated housing offers protection against dust, sand, moisture, and liquids, ensuring reliable operation in outdoor environments. The integrated Aria X2 wireless management system enables remote configuration and firmware updates, streamlining production workflows. With support for DMX512, ArtNet, sACN, KlingNet, and RDM, the Hydro Flex L19 is a powerhouse wash light ready for demanding professional use.

Hydro Flex L19 Features

Moving head pixel wash with 19x 60W RGBL LEDs
17,000-lumen total output
Individual pixel control with built-in pixel effect programs
Motorized zoom: 8°–56° (beam: 5°–38°, field: 8°–56°)
Linear white CCT control: 2,700K–10,000K with presets
Virtual CMY DMX control modes and virtual color wheel
Built-in color macros and calibrated pixels
Electronic strobe and smooth 0–100% dimming
Selectable LED refresh rates: 900Hz–25kHz
Selectable dimming modes and 4 dim curves (Square, Linear, Inv. Square, S-Curve)
Pan: 540°/630°, Tilt: 243° with 16-bit fine control

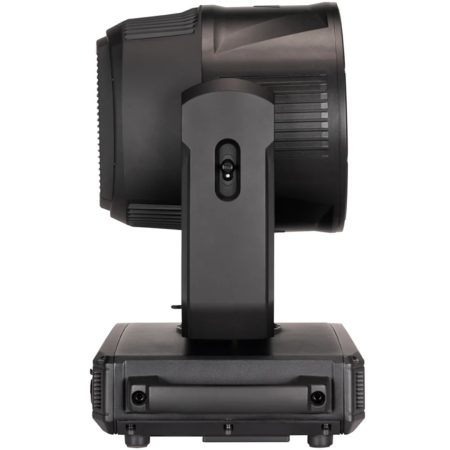

Pan/Tilt locks for secure handling
Aria X2 wireless management system with OTA updates
DMX512, ArtNet, sACN, KlingNet, and RDM protocols

Hydro Flex L19 Specifications

LED Source: 19x 60W RGBL LEDs (50,000 hrs)
CRI: 84.2
TM30 Rf: 71.1 | TM30 Rg: 119.8
Output: 17,000 lumens (zoomed out, full on)
Lux: 54,400 @ 5m (4.3° beam); 2,090 @ 5m (28.3° beam)
Color Temperature: 2,700K–10,000K with presets
Beam Angle: 5°–38°
Field Angle: 8°–56°
Pan/Tilt: 540°/630° x 243°, 16-bit resolution
Dimming: 0–100% with 4 curves
Control Protocols: DMX512, ArtNet, sACN, KlingNet, Aria X2 wireless, RDM
DMX Modes: 22, 31, 40, 104, Standard CMY 31, Extended CMY 34 channels

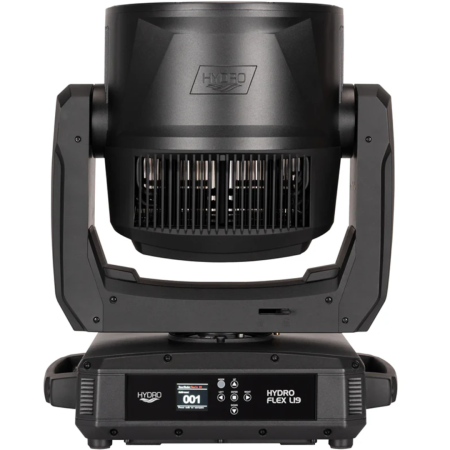

Display: Color LCD with 6-button function menu

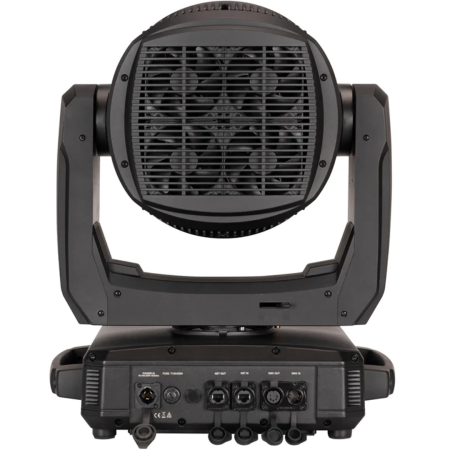

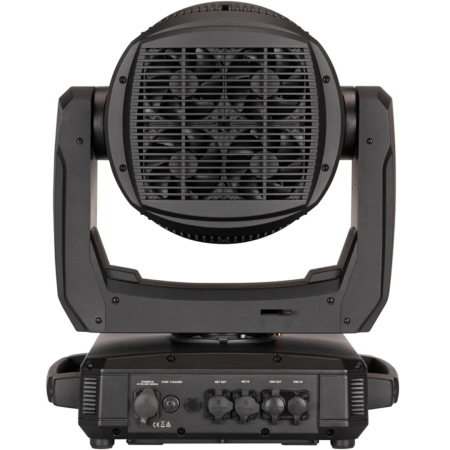

Connections: IP65 locking power, 5-pin DMX, RJ45 network
Electrical: 100–240V, 50/60Hz, max 1400W @120V / 1350W @220V
Cooling: Fan cooled
Housing: IP65-rated metal construction
Dimensions (L x W x H): 12.5" x 17.04" x 20.36" (318 x 433 x 517 mm)
Weight: 60.8 lbs. (27.6 kg)
Operating Temperature: -4°F to 113°F (-20°C to 45°C)
Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Certifications: cETLus (Control # 4010765), CE, FCC, UKCA
UPC: 810087373801

What's In The Box

(1) American DJ Hydro Flex L19 Fixture
(2) 180mm Omega Brackets
(1) 1.83m IP65 locking power cable
(1) Safety Cable

American DJ Hydro Flex L19 (ADJ HYD346)

Beam Angle	5°–38° degrees
Frequency Response	900Hz–25kHz Hz
IP Rating	IP65
LED Type	19x 60W RGBL LEDs
Lumen Output	17,000 lumens lumens
Power Rating	1,140W W
Wattage	1140W W

Brand	American DJ
Name	American DJ Hydro Flex L19

Color Mixing	Virtual CMY DMX control and virtual color wheel
CRI	84.2

Control Interfaces	DMX512, ArtNet, sACN, KlingNet, Aria X2 wireless, RDM
Preset Storage	Built-in pixel effect programs and color macros
Wireless Capabilities	Aria X2 wireless management system with OTA updates

Dimensions	12.5" x 17.04" x 20.36" (318 x 433 x 517 mm)
Weight	60.8 lbs. (27.6 kg) kg

Warranty Length	Not specified years

The Hydro Flex L19 offers powerful 17,000-lumen output with precise pixel control and versatile motorized zoom, housed in a rugged IP65-rated enclosure suitable for demanding indoor and outdoor professional lighting applications. Its advanced wireless management, multiple control protocols, and extensive color and dimming options make it ideal for festivals, concerts, and large-scale productions.

The fixture uses nineteen 60W RGBL LEDs with individual pixel control and built-in effect programs to create dynamic lighting effects. It features motorized zoom and pan/tilt movement with fine control, linear white color temperature adjustment, and selectable LED refresh rates for flicker-free operation. Wireless Aria X2 system enables remote configuration and firmware updates, while multiple DMX and network protocols allow seamless integration into professional lighting setups.

The Hydro Flex L19 combines high power RGBL LEDs with pixel-level control and a wide motorized zoom range in an IP65-rated housing, making it one of the few moving head wash fixtures designed for both indoor and harsh outdoor environments. Its integration of virtual CMY color mixing, multiple dimming curves, and wireless management with OTA updates distinguishes it in the professional lighting market.

19x 60W RGBL LEDs with 50,000-hour lifespan, 17,000-lumen output, IP65-rated rugged metal housing, motorized zoom with beam angles from 5° to 38°, individual pixel control with built-in effect programs, virtual CMY DMX control and color wheel, linear white color temperature presets, electronic strobe, smooth dimming with four curves, pan/tilt with 16-bit fine control, and multiple control protocols including wireless Aria X2.

LED Source: 19x 60W RGBL LEDs; CRI: 84.2; Output: 17,000 lumens; Beam Angle: 5°–38°; Field Angle: 8°–56°; Pan/Tilt: 540°/630° x 243°; Dimming: 0–100% with 4 curves; Control Protocols: DMX512, ArtNet, sACN, KlingNet, Aria X2 wireless, RDM; Display: Color LCD with 6-button menu; Connections: IP65 locking power, 5-pin DMX, RJ45; Electrical: 100–240V, 50/60Hz, max 1400W @120V; Cooling: Fan cooled; Housing: IP65 metal; Dimensions: 12.5" x 17.04" x 20.36"; Weight: 27.6 kg; Operating Temp: -20°C to 45°C; Certifications: cETLus, CE, FCC, UKCA.

(1) American DJ Hydro Flex L19 Fixture, (2) 180mm Omega Brackets, (1) 1.83m IP65 locking power cable, (1) Safety Cable
