Chauvet Pro COLORado PXL Curve 5

Motorized RGBW Beam/Wash Batten

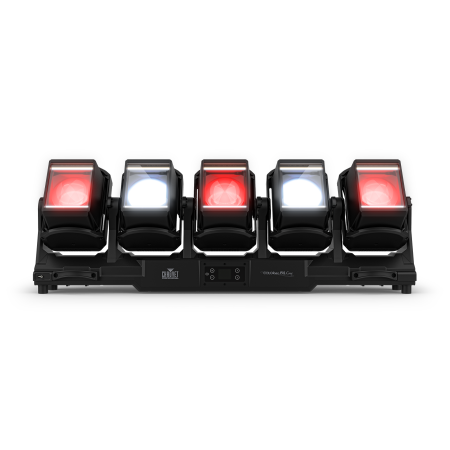

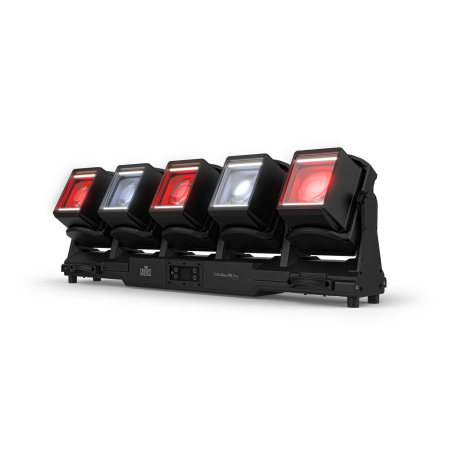

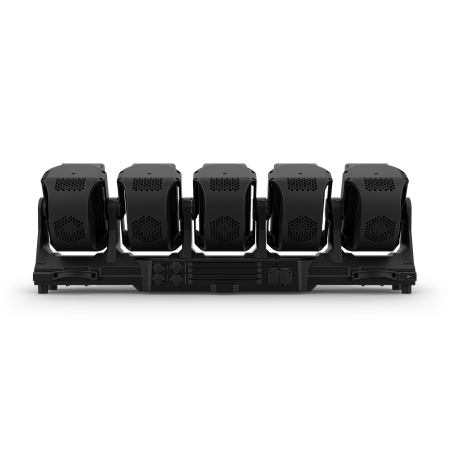

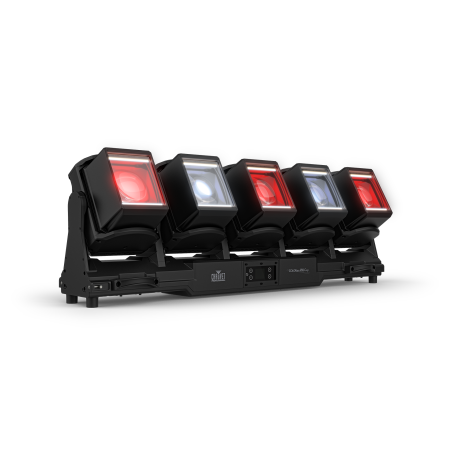

The CHAUVET Professional COLORado PXL Curve 5 is an IP65-rated motorized LED batten featuring five independently controlled 120W RGBW heads with pan, tilt, and zoom, plus dedicated cool white and warm white linear strobe cells. Its arrayable design, individual pixel control, and high-output beam/wash performance make it well suited for touring stages, theatrical productions, festivals, and temporary outdoor events where coordinated movement, color, and strobe effects are required.

CHAUVET Professional COLORado PXL Curve 5 Competitive Differences

• Five independently controlled heads, each powered by a single 120W RGBW LED
• Individual motorized pan, tilt, and zoom provide moving beam and wash effects from a single batten
• Each head includes two linear four-cell cool white and warm white strobe sections for added visual impact
• Eight-section control of the warm white and cool white strobe cells per head enables detailed effects programming
• Alignment pins and arrayable construction help maintain consistent pixel pitch when multiple fixtures are mounted side by side
• IP65 construction supports temporary outdoor and wet-use applications
• DMX, Art-Net, sACN, and RDM control provide flexible integration into professional lighting systems
• IP65-rated 5-pin XLR and Seetronic etherCON data connections support production environments

CHAUVET Professional COLORado PXL Curve 5 Description

The CHAUVET Professional COLORado PXL Curve 5 combines the flexibility of a moving wash and beam fixture with the visual continuity of an arrayable LED batten. Five rectangular heads can be controlled independently, with each head providing 60° of pan and 200° of tilt along with motorized zoom. This makes it possible to create coordinated waves, curves, aerial effects, pixel-mapped looks, and wide washes from a single fixture.

Each moving head uses a 120W RGBW LED and is complemented by dedicated linear cool white and warm white strobe cells. Eight-section control of the white strobe cells per head allows detailed chase, strobe, and accent effects beyond the fixture's RGBW color output. The system produces up to 42,172 lumens and offers adjustable color temperatures from 3200K to 7500K.

The fixture is designed for scalable lighting systems. Alignment features help maintain consistent spacing when multiple units are installed side by side, while its rectangular heads and color blending are designed to integrate visually with other COLORado PXL fixtures. Control options include DMX, Art-Net, sACN, and RDM, with four control personalities ranging from 120 to 355 channels.

An IP65-rated housing constructed from aluminum diecast, high-impact flame-retardant polymer, and steel provides durability for touring and temporary outdoor use. IP65 power and data connections, slotted Omega mounting brackets, selectable PWM frequencies, and an auto-ranging 100–240 VAC power supply further support professional concert, theater, festival, and event production workflows.

COLORado PXL Curve 5 Features

• Five independently controlled 120W RGBW LED heads
• Individual motorized pan, tilt, and zoom on each head
• 60° pan and 200° tilt range per head
• Dual linear four-cell cool white and warm white strobe sections per head
• Eight-section control of warm white and cool white strobe cells per head
• Electronic dimmer and shutter/strobe
• 0 to 25Hz strobe rate
• Built-in automated programs
• Color temperature presets
• 3200K to 7500K color temperature range
• Alignment design helps maintain pixel pitch between multiple fixtures
• Designed for seamless pixel mapping with COLORado PXL Curve 1
• DMX, Art-Net, sACN, and RDM control protocols
• Four control personalities: 120, 155, 195, and 355 channels
• Selectable PWM frequencies for different production and camera requirements
• IP65-rated housing for temporary outdoor and wet use
• IP65-rated 5-pin XLR and Seetronic etherCON data connections
• Seetronic Powercon IP65 power input and output
• Slotted Omega bracket mounting system
• NFC functionality listed by the manufacturer as coming soon
• Bluetooth software updating listed by the manufacturer as coming soon

COLORado PXL Curve 5 Specifications

• Light Source: 5 x 120W RGBW LEDs
• LED Life Expectancy: 50,000 hours
• Output: 42,172 lumens
• Color Temperature Range: 3200K to 7500K
• Beam Angle: 8.3° spot, 30.4° flood, 14.7° at 50% zoom
• Field Angle: 10.3° spot, 115.8° flood, 24.1° at 50% zoom
• Cutoff Angle: 10.7° spot, 155.1° flood, 132.2° at 50% zoom
• Zoom Range: 8.3° to 155.1°
• Single Head Beam Angle Without Strobe: 3.2° to 30.3°
• Single Head Beam Angle With Strobe: 3.2° to 32.3°
• Single Head Field Angle Without Strobe: 3.7° to 38°
• Single Head Field Angle With Strobe: 3.7° to 88.7°
• Single Head Cutoff Angle Without Strobe: 4° to 39.8°
• Single Head Cutoff Angle With Strobe: 4° to 145.1°
• Single Head Zoom Range Without Strobe: 3.2° to 39.8°
• Single Head Zoom Range With Strobe: 3.2° to 145.1°
• Illuminance: 18,062 lux at 5 m spot; 2,166 lux at 5 m flood
• Pan/Tilt: 60° / 200°
• Strobe Rate: 0 to 25Hz
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Dim Modes: 2
• Selectable PWM: 600, 1200, 2000, 4000, 6000, and 15000Hz
• Control Protocols: DMX, Art-Net, sACN, RDM
• DMX Channels: 120, 155, 195, or 355
• Control Personalities: 4
• Data Connectors: 5-pin IP65 XLR and Seetronic etherCON IP65
• Input Voltage: 100 to 240 VAC, 50/60Hz, auto-ranging
• Power and Current at 120V, 60Hz: 1136W, 9.49A
• Power and Current at 208V, 60Hz: 1105W, 5.44A
• Power and Current at 230V, 50Hz: 1113W, 4.87A
• Power Linking: 1 unit at 120V; 2 units at 208V; 2 units at 230V
• Power Input: Seetronic Powercon IP65
• Power Output: Seetronic Powercon IP65
• Power Cable Length: 5 ft (1.5 m)
• Housing Material: Aluminum diecast, high-impact flame-retardant polymer, and steel
• Exterior Color: Black
• IP Rating: IP65, temporary outdoor/wet use
• Operating Temperature: 14°F to 113°F (-10°C to 45°C)
• Certifications: CE, MET, UKCA, FCC
• Dimensions: 39.33 x 8.86 x 13.50 in (999 x 225 x 343 mm)
• Weight: 71.4 lb (32.4 kg)

What's In The Box

• COLORado PXL Curve 5 fixture
• Seetronic Powercon IP65 power cord
• 2 Omega brackets
