American DJ iKon LED Gobo Projector
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

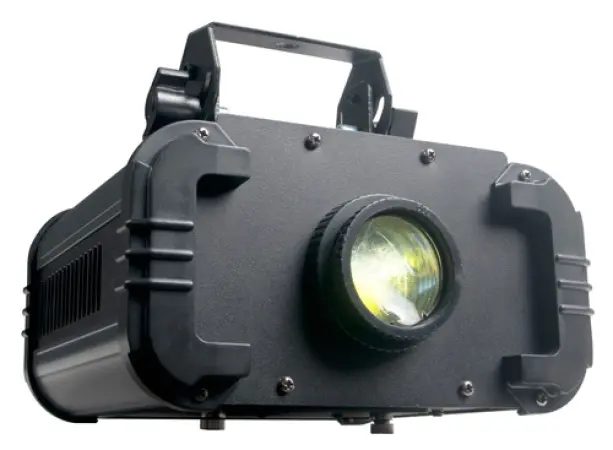

American DJ iKon LED Gobo Projector (ADJ Gobo Projector iKon LED)
Ikon LED
The Ikon LED is a high output single Gobo Projector powered by a bright 60W
(7500K) white LED. This fixture used high quality optics for crisp, clear
projection. User can adjust the LED brightness and Gobo rotation on the rear of
fixture or by the included wireless RF remote control.
The Ikon LED includes 4 metal Gobos. Users may also insert custom Gobos in
the fixture. This projector also comes with three interchangeable lenses that
produce different beam angles (25, 32 or 43 degrees) making it versatile for a
wide variety of applications.
Specifications:
• Bright white 60W LED indoor Gobo Projector
• High quality optics - Clear powerful output
• Adjustable dimmer and rotate knob on rear panel
• Includes 4 replaceable metal Gobo patterns
• Gobo size: 54mm; Viewable size: 33mm
• Run all night – No Duty Cycle
• Easy Gobo replacement access
• Manual focus
• Ideal for Mobile DJs, Clubs, Bars, Retail Stores and Promotional Events
• Very low heat output
• Beam Angle: 25, 32 or 43 degrees (Includes 3 different lenses)
• Long life LED (Rated at approximately 50,000 hrs.)
• IEC AC outlet on side to daisy chain power (up to 4 Ikon LED’s @ 120V and 7
Ikon LED’s @ 230V)
• Color Temperature: 7500K
• Includes yoke to mount on a wall or hang from trussing
• Includes RF Wireless Remote
• Multi-voltage: 100-240V, 50/60Hz
• Power consumption: 83.6W max
• Dimensions (LxWxH): 9.5” x 8” x 8.5”/ 236 x 227 x 215mm
• Weight: 8 lbs. / 3.6 kg.
This Projector is very bright and works great! Also, you can make your own gobos for this unit...
I purchased this unit after a trial run with the entry level ADJ GOBO LED. The concept is very similar and efficient however the light source is notably more powerful. For the price I am satisfied with the brightness difference between the two units. The unit is perfect for wedding projections or high quality events where the best of the best isn't needed but entry level won't cut it. Gobos are easily changed by opening a slide secured by hand screws. The slide has a metal ring that holds the gobo in place. I personally prefer metal gobos in this unit as transparency film often bleeds through the black. Plug and play with a remote and a few different lenses to create different size projections. -1 Star as many other gobo projectors provide an efficient ground stand option where this is made primarily for hanging or you would need to prop up with another piece.
very happy with this product, and price. i will be ordering a few more.
DANIEL CLINE: I would love to know how to make my own, it seems impossible for me.<br />
