ADJ Jolt Bar FX IP | 112 White + 448 RGB LEDs | IP...
$1,329.99

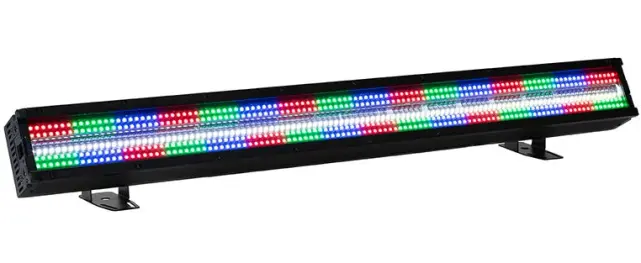

The ADJ Jolt Bar FXIP is a high-output linear LED fixture that combines cool white strobe and blinder effects with RGB washes, chases, and animated pixel effects in a single 39.4-inch unit. Its IP65-rated construction supports temporary outdoor use, while extensive zone control and multiple control protocols give lighting designers flexibility for concert stages, festivals, touring productions, and large-scale events.
The ADJ Jolt Bar FXIP uses a central strip of 112 x 5-Watt cool white SMD LEDs surrounded by 448 x 0.5-Watt RGB SMD LEDs. This dual-source design allows the fixture to produce bright white strobe and blinder effects as well as saturated RGB washes, color strobes, and animated chase patterns from the same unit.
The LEDs are divided into 16 cool white zones and 32 RGB zones for detailed programming and dynamic effects. Lighting designers can choose from 17 DMX modes and use built-in RGB and white program macros for faster programming. DMX, RDM, and integrated Aria X2 control are supported, while the selectable 900Hz to 25kHz LED refresh rate makes the fixture adaptable to live production and camera-sensitive environments.
A robust metal housing and IP65-rated locking power and 5-pin DMX connections make the fixture suitable for demanding touring and temporary outdoor applications. Its 39.4-inch linear form factor, 19.2 lb weight, and mounting system make it practical for truss or floor-based configurations, while multiple units can be aligned side by side for continuous chase and pixel effects.
The included frost filter provides an additional visual option by diffusing the individual LED pixels. With a 76.6-degree beam angle, 92-degree field angle, smooth dimming, adjustable strobe speeds, and extensive zone control, the Jolt Bar FXIP is designed for concert stages, festivals, dance events, rental applications, and other large-scale lighting productions.
| App Control | Integrated Aria X2 management suite for wireless setup, data distribution, and OTA updates |
| Control Interfaces | DMX, Aria X2, RDM |
| Physical Controls | OLED display with 4-button touch menu |
| Preset Storage | 67 built-in color temperature presets, 25 built-in RGB LED program macros, 9 built-in cool white LED program macros |
| Beam Angle | 76.6° degrees |
| IP Rating | IP65 |
| LED Type | 448 x 0.5-Watt RGB SMD LEDs + 112 x 5-Watt cool white SMD LEDs |
| Wattage | 214W at 120V; 208W at 230V W |
| Brand | American DJ |
| Name | American DJ Jolt Bar FX IP | 112 White + 448 RGB LEDs | IP65 Strobe, Wash & Chase Bar |
| Primary Category | LED Strobe and Wash Fixture |
| SKU | JOL687 |
| CE Certified | Yes |
| ETL Listed | cETLus |
| Color Mixing | RGB and cool white LEDs with 32 RGB zones and 16 cool white zones |
| CRI | 86 |
| DMX Channel Modes | 6, 9, 13, 16, 18, 20, 32, 34, 38, 43, 45, 64, 78, 80, 112, 127, 129 |
| LED Refresh Rate | 900Hz to 25kHz Hz |
| Dimensions | 39.4 x 3.9 x 6.1 in (1000 x 100 x 154 mm) |
| Included Accessories | IP65 locking power cable, frost filter, 2 x 107mm Omega receiver brackets |
| Mounting Options | 180-degree mounting bracket system, alignment bracket for positioning fixtures side by side |
| Weight | 19.2 lb (8.7 kg) kg |
