American DJ Revo 4 IR
DISCONTINUED
2 Photos
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

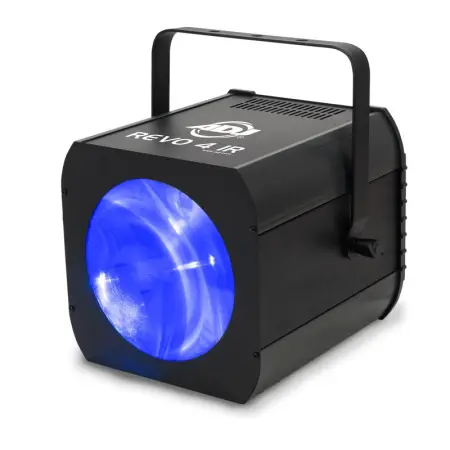

One of ADJ most popular Moonflower effects, the American DJ Revo 4 IR now includes wireless control options compatible with the UC-IR and Airsteam IR remotes (sold separately). The ADJ Revo 4 IR produces a matrix grid of 256 LEDs that creates dozens of different patterns as the red, green, blue and white LEDs are turned on and off and kick up the excitement for any type of party with or without the use of fog.

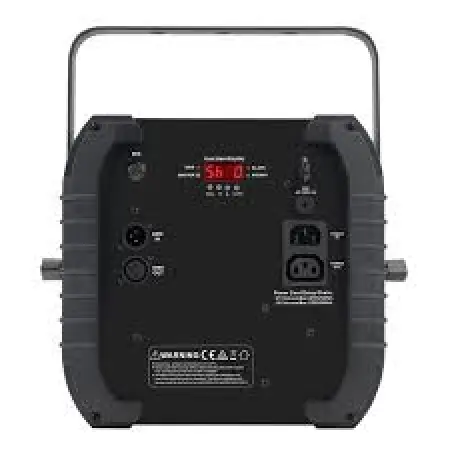

The rear panel features a 4-button LED menu display, 3-pin DMX in/Out to link units together and IEC power In/Out to daisy chain the power from one fixture to another.
ADJ Revo 4 IR Specifications:
• LED DMX-512 Moonflower from the popular REVO Series with 256 razor sharp Red, Green, Blue & White Beams
• Produces unique and exciting LED patterns that may be projected on a wall, ceiling or dance floor – great with or without fog
• 256 total 5mm LEDs : 64 Red, 64 Green, 64 blue and 64 White
• 2 DMX Channel Modes (4 Channel mode or 256 Channel mode)
• 4-Button LED DMX Display
• Linkable via XLR connections
• Wide beam spread covers a large area
• 3 operation modes: DMX, Sound Active & Master/Slave
• Sound active from built-in programs
• Strobe function
• Beam angle: 35 degrees
• Runs extremely cool! - NO Duty Cycles! – Run all night!
• Includes hanging bracket & safety loop
• Power Consumption: 34W maximum
• Extreme long lifetime of the LEDs (50,000 hr. rating)
• Compatible with ADJ UC IR Remote and Airstream IR (sold Separately)
• IEC AC IN/OUT on rear to daisy chain power (up to 12 fixture’s @ 120V and 21 fixture’s @ 230V )
• Multi-voltage Operation: AC 100-240V, 50/60Hz
• Dimensions (LxWxH): 12.25”x 12” x 13.25” / 312 x 306 x 334 mm
• Weight: 11 lbs. / 4.9 kgs.
I use a pair of Revo 4 IRs at Senior Centers when the need arises for overkill retro Disco Style lighting. Unless you are playing a large venue, one of these lights should be sufficient. They are bulky, bright and easy to configure as Master/Slave via a DMX cable using their internal DMX Controller. As such, the lights can be synchronized or contrasted without the need for a seperate DMX Controller or knowing how to use DMX. I use Master/Slave1 in Master Show Mode 0 with high sound sensitivity for light patterns that are randomly sound triggered and the effect is awesome whether the lights are showing on the dance floor or ceiling. Thought I'd want the fairly in-depth IR control capability but letting the light(s) do their own thing has been beyond my expectations and so far the most I have used the (not included with light) IR remote control for is for Blackout/Light on.
I really love this ADJ light (s) and Customer Service from KPODJ is just fantastic and Prices are Great. I'm a very Happy customer from this company. Thank you very much KPODJ. ??? Attn: DJ beep sounds ®️™️ Jaime or JC
