High-Precision RGBL LED Pinspot Lighting Fixture
The
American DJ Saber Spot RGBL is a powerful yet compact LED pinspot designed for precision lighting in clubs, theaters, and production environments. Featuring a 20W RGBL LED and tight 5.7° beam angle, this fixture delivers vibrant, sharp color projection with advanced control options and versatile mounting capabilities.
American DJ Saber Spot RGBL Competitive Differences
- 20W RGBL LED with 30,000-hour life expectancy for bright, energy-efficient performance
- Extremely narrow 5.7° beam with ACL lens, ideal for focused effects
- Two interchangeable frost filters for 10° and 45° beam angles
- Advanced white color temperature presets (2700K–7000K)
- DMX and RDM compliant with 12 DMX channel modes
- 63 built-in color macros and 13 color-changing programs
- Electronic dimming (0–100%) and 3.6kHz refresh rate for flicker-free operation
- Lightweight at only 3.2 lbs, with versatile yoke for mounting or floor use
American DJ Saber Spot RGBL Description
The
American DJ Saber Spot RGBL is engineered for professionals seeking compact and reliable spotlight solutions. Its bright 20-watt RGBL LED provides rich color output and a narrow 5.7-degree beam angle, making it ideal for accent lighting, truss warming, and precise visual effects.
Equipped with an ACL lens and two frost filter lenses (10° and 45°), this unit gives users the flexibility to tailor beam dispersion as needed. The Saber Spot RGBL includes a 4-button digital display for easy navigation and control, offering 12 different DMX channel modes. With RDM support and a refresh rate of 3.6kHz, it's optimized for modern video production as well.
This pinspot is ready for a wide range of installations thanks to its scissor yoke mount and power linking capability (up to 57 units at 120V). With built-in macros, white color temperature presets, and low power consumption, it’s a smart addition to any lighting rig.
Saber Spot RGBL Features
- 20-Watt RGBL LED light source
- ACL lens with narrow 5.7° beam
- Two interchangeable frost filters (10° and 45°)
- Electronic dimming: 0 – 100%
- 63 built-in color macros and 13 color-changing programs
- 6 white color temperature presets (2700K–7000K)
- RDM and DMX compliant with 12 DMX channel modes

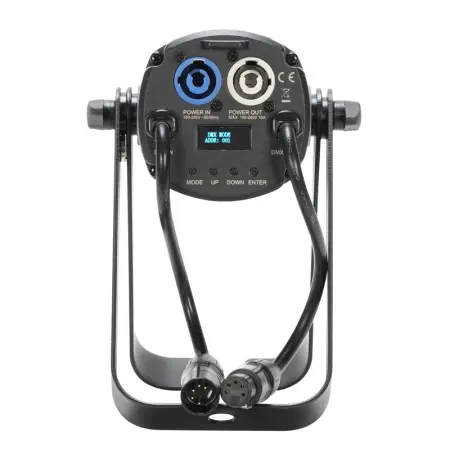

- 4-button digital display for control and navigation
- Includes scissor yoke for mounting or floor placement
- Flicker-free operation with 3.6kHz refresh rate
Saber Spot RGBL Specifications
- Input Voltage: 100–240V AC, 50/60Hz (auto sensing)
- Power Draw: 16.7W @120V, 0.243A | 16.7W @230V, 0.147A
- Power Output Current: 1.2A (14W)
- Power Linking: 57 units @120V | 95 units @230V
- DMX In/Out: 5-pin pigtails
- Control Protocol: Wired digital communication (DMX, RDM)
- LED Life Expectancy: 30,000 hours
- Housing: Black finish, IP20 rated
- Certifications: CE, cETLus (Control #4010765)
- Dimensions: 6.69" x 5.31" x 8.46" (170 x 135 x 215 mm)
- Weight: 3.2 lbs (1.45 kg)
What's In The Box
- 1.83m indoor locking power cord
- 2 frost filter lenses (10° and 45°)
- Metal clip ring for frost filter lens
ADJ SAB673
(American DJ SaberSpot RGBL)
