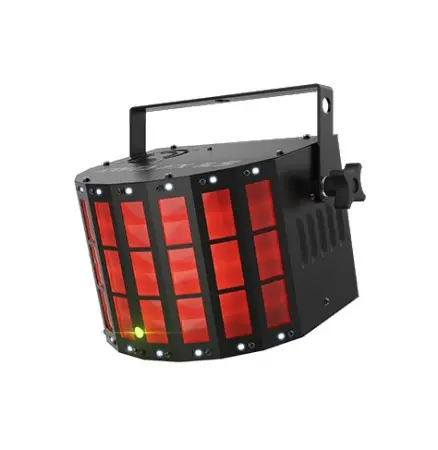

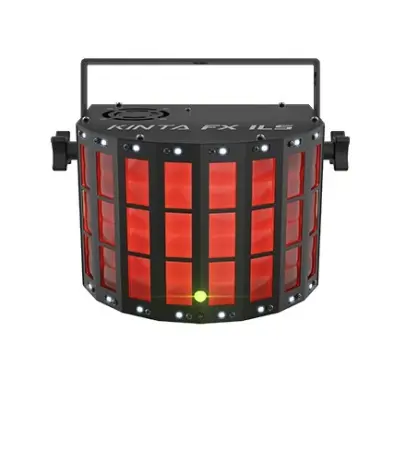

Chauvet DJ Kinta FX ILS

Multi-Effect Light with Kinta, Laser & Strobe

$179.99 In Stock!

Multi-Effect LED Light

Chauvet DJ Kinta FX ILS is an all-in-one compact lighting fixture that delivers an impressive variety of effects in a single unit. Combining razor-sharp Kinta-style beams, vibrant laser patterns, and high-impact SMD strobe chases, it’s the perfect centerpiece for DJs, mobile entertainers, and small venues looking to create high-energy shows without the hassle of multiple fixtures.

Chauvet DJ Kinta FX ILS Competitive Differences

  • 3-in-1 effect: Kinta, laser, and SMD strobe in one compact unit
  • ILS and D-Fi USB compatibility for wireless, coordinated light shows

Chauvet DJ Kinta FX ILS Description

The Chauvet DJ Kinta FX ILS blends three exciting effects—colorful Kinta beams, red and green lasers, and powerful white strobe LEDs—into a single fixture designed to energize any space. Thanks to its compatibility with ILS (Integrated Lighting System), it easily syncs with other ILS-enabled lights for fully coordinated shows, while D-Fi USB compatibility allows for wireless DMX or master/slave operation (D-Fi USB sold separately). Its wide 118° coverage angle projects countless multicolor beams from its RGBW LED engine, while hundreds of red and green laser dots add dynamic movement and visual interest across dance floors and walls. The strobe effect, powered by 16 SMD LEDs, delivers high-intensity flashes and chase patterns to match any beat. Control is flexible and easy via DMX (2 or 9 channels), IRC-6 remote (optional), Master/Slave, or onboard digital display. Designed for plug-and-play operation or as part of a larger system, this fixture is a smart choice for mobile rigs or fixed installs that want big effects in a small footprint.

Model Features

  • All-in-one fixture with Kinta, laser, and strobe effects
  • D-Fi USB compatibility for wireless control
  • ILS compatibility for synchronized light shows
  • Projects razor-sharp, multicolor beams
  • Red and green lasers cast hundreds of moving dots
  • 16 SMD LEDs produce bright strobe effects and chases
  • Control via DMX, Master/Slave, IRC-6, or digital display
  • Power linking saves time during setup

Model Specifications

  • DMX Channels: 2 or 9
  • Light Sources:
    • Kinta: 4x 7.5W LEDs (RGBW)
    • Strobe: 16x SMD LEDs (white, 5W)
    • Laser: 100mW Red (650nm), 30mW Green (520nm)
  • Strobe Rate: 0–20 Hz
  • Coverage Angle: 118°
  • Power and Current: 25W, 0.5A @ 120V | 24W, 0.2A @ 230V
  • Power Linking: 17 units @ 120V | 33 units @ 230V
  • Input Voltage: 100–240V AC, 50/60Hz (auto-ranging)
  • DMX Connectors: 3-pin XLR
  • Dimensions: 7.4 x 10.3 x 7.4 in (187 x 261 x 187 mm)
  • Weight: 3.8 lb (1.7 kg)
  • Approvals: CE, FDA, RoHS, UKCA
  • Laser Classification: EN/IEC 60825-1:2014

What's In The Box

  • Kinta FX ILS fixture
  • Power cord
  • Warranty card
  • User manual

Chauvet KintaFXILS (Chauvet DJ Kinta ILS)

Beam Angle 118° degrees
Connectivity Protocols DMX (2 or 9 channels), ILS, D-Fi USB
Frequency Response 0–20 Hz Hz
IP Rating Not specified
LED Type RGBW LEDs for Kinta, SMD LEDs for strobe
Power Consumption 25W at 120V, 24W at 230V W
Voltage Range 100–240V AC, 50/60Hz V
Wattage 4x 7.5W LEDs (Kinta), 16x 5W SMD LEDs (strobe) W

Brand Chauvet DJ
Name Chauvet DJ Kinta FX ILS
Primary Category Multi-Effect LED Light

CE Certified Yes
RoHS Compliant Yes
Warranty Length Included (length not specified) years

Control Interfaces DMX, Master/Slave, IRC-6 remote (optional), onboard digital display

Dimensions 7.4 x 10.3 x 7.4 in (187 x 261 x 187 mm) inches
Weight 3.8 lb (1.7 kg) kg

DMX Channel Modes 2 or 9 channels

This fixture offers a versatile all-in-one lighting solution combining beams, lasers, and strobe effects in a compact unit. Its wireless compatibility and multiple control options make it ideal for dynamic, coordinated light shows in small venues or mobile setups.

The Kinta FX ILS projects multicolor beams, laser dots, and strobe flashes controlled via DMX, remote, or onboard display. It syncs wirelessly with other ILS-enabled devices or via D-Fi USB for coordinated shows, with power linking simplifying setup.

Combines three distinct lighting effects—Kinta beams, red and green lasers, and SMD strobe LEDs—in one compact fixture. Offers wide 118° coverage and wireless control compatibility, making it a versatile centerpiece for energetic lighting setups.

3-in-1 effect: Kinta beams, laser, and strobe. Compatible with ILS for synchronized shows and D-Fi USB for wireless control. Control options include DMX (2 or 9 channels), Master/Slave, IRC-6 remote, and onboard display. Power linking supports up to 17 units at 120V or 33 units at 230V.

Light sources include 4x 7.5W RGBW LEDs for Kinta beams, 16x 5W white SMD LEDs for strobe, and lasers with 100mW red (650nm) and 30mW green (520nm). Strobe rate ranges from 0 to 20 Hz. Dimensions are 7.4 x 10.3 x 7.4 inches, weight is 3.8 lb (1.7 kg). Input voltage is 100–240V AC, 50/60Hz.

Kinta FX ILS fixture, power cord, warranty card, user manual.
