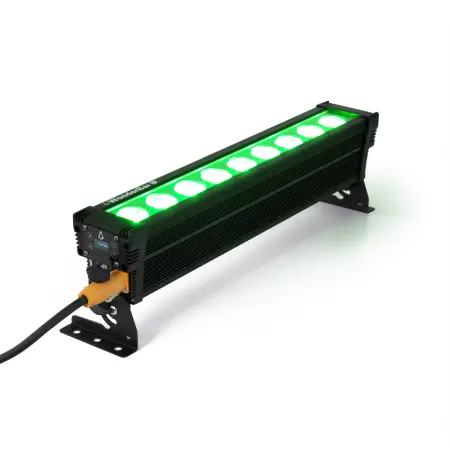

Prost Lighting Wonder Bar IP | 162W Hex Outdoor Wash Light Bar
Key Facts:
- Light source: 9x 18W RGBAW+UV (Hex) Color LEDs
- Beam angle: 25°
- Control: DMX-512, Sound Active, Auto Program, Presets, Remote Control
- Outdoor Rated: IP65
- Photometric Data: 13,320 Lux @ 1m / 3,870 Lux @ 2m
Competitive Differences:
- Built to CE & UL Specs
- "No Fan" Technology for Ultra Low Noise

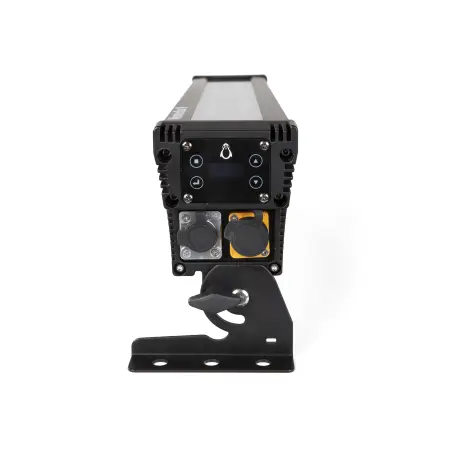

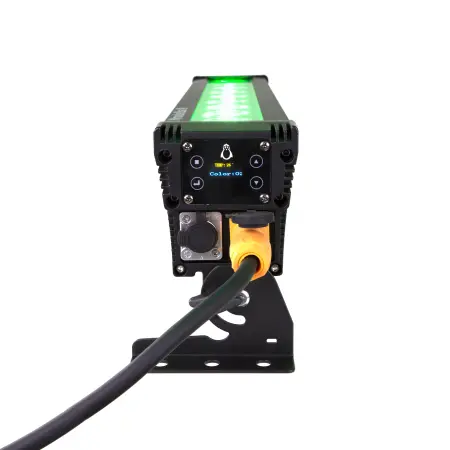

- Digital Touch Display in Plain English
- No Pig-tails | Completely Removable Cords (included free)
- Compatible with both IP and standard (non-IP) Power/DMX cords
- IR Remote (included free)
- 3-Year USA Warranty
Description:
The Prost Lighting Wonder Bar IP is a very powerful, universal LED wash bar for events, DJs, catering, and architectural applications indoors or outside (check out the WonderBar for indoor only version). This unit produces a very smooth and even wash effect over a wide area. Coming in at a total LED output of 162 Watts, this strip light is super bright. The 9x 18 Watt Hex Color LEDs will cover a large area!
The WonderBar IP was engineered and designed in Germany to UL and CE certification specs.
These can be controlled through standard DMX-512, the included IR remote control, or programmed directly on the unit to stand-alone, sound active, or auto program. The integrated RGBAW+UV LEDs offer advanced color mixing, as well as all the standard colors, pure white (6500K), amber (gold tone), and ultraviolet (black light).
Translation Note:
Wonder Bar: Although we spell it differently in America, the German word "Wunderbar" means "Wonderful" in English. We believe you'll find this all-around wash bar to be wonderful!
Features:
- 9x 18W RGBAW+UV (Hex) Color LEDs
- White Temperature: 6500 K
- Beam Angle: 25 degrees

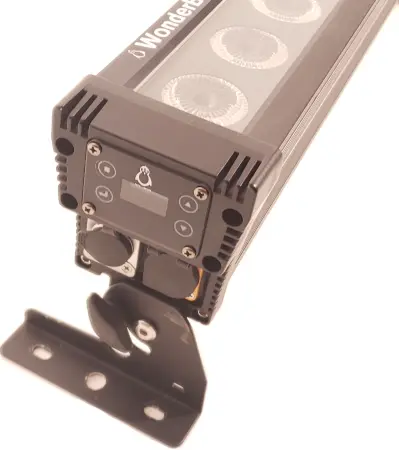

- Digital Touch Display in Plain English
- Stand Alone / Auto Mode Programs
- Sound Active Mode
- Built-in Preset Macro Colors
- 4 DMX Channel Modes: 3, 6, 8, 11
- Dimmer Mode: 16 Bit
- 4 Dimming Curves
- PWM: 16 Bit, PWM @ 5200 Hz, flicker-free
- DMX Protocol: DMX-512
- Tough Aluminum Housing
- Seetronic branded IP PowerCon Cable & IP DMX Cable (included)
- Built-in: IR Remote Control Receiver (remote included)
- No Fan - Quiet!
- CE, RoHs
Specifications:
- Photometric Data: 13,320 Lux @ 1m / 3,870 Lux @ 2m
- LUX Rating Breakdown:
| Color |
All |
All |
|
|
|
|
| Distance |
1m |
2m |
|
|
|
|
| 25° |
13,320 |
3,870 |
|
|
|
|
| Color |
R |
R |
G |
G |
B |
B |
| Distance |
1m |
2m |
1m |
2m |
1m |
2m |
| 25° |
2,620 |
710 |
2,770 |
830 |
3,430 |
960 |
| Color |
A |
A |
W |
W |
UV |
UV |
| Distance |
1m |
2m |
1m |
2m |
1m |
2m |
| 25° |
1,320 |
390 |
3,300 |
1,000 |
560 |
180 |
LED Measurements:
- Wavelength:
- Red: 620-625 nm
- Green: 525-530 nm
- Blue: 460-465 nm
- Amber: 590-594 nm
- UV: 398-403 nm
- White Color Temperature: 6500-7000 K
PWM Rate:
5200Hz
Power Specifications:
- Voltage Input: 100-240V AC, 50/60Hz
- 3 Pin XLR DMX in/out
- Dimensions: 22.5 x 6.5 x 3.5 inches, 8 lbs
- IP Rating: IP 65
Included Accessories:

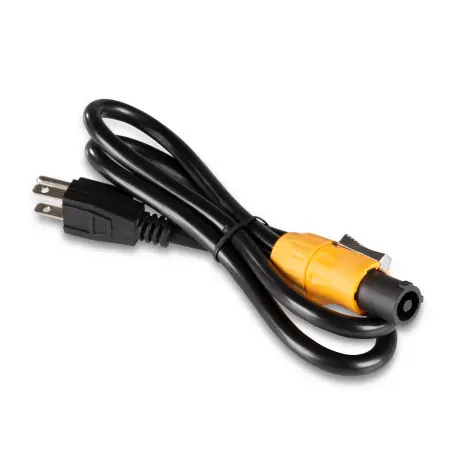

- IP PowerCon AC cable
- IP DMX Cable
- Double Bracket Yoke

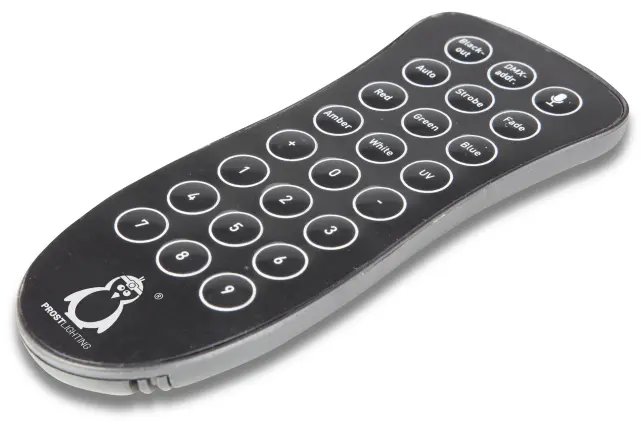

- IR-Remote Control
Prost Wonder Bar IP
(Prost Lighting Wonder-Bar IP Outdoor Rated)
