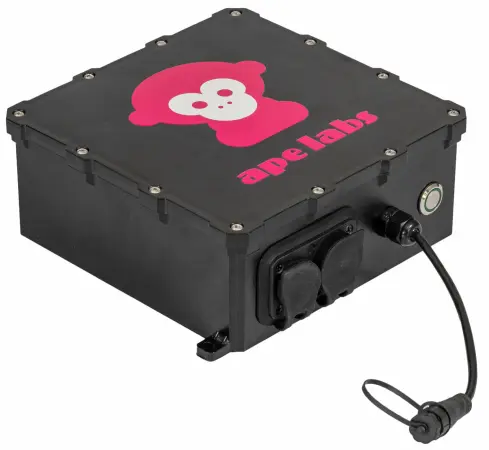

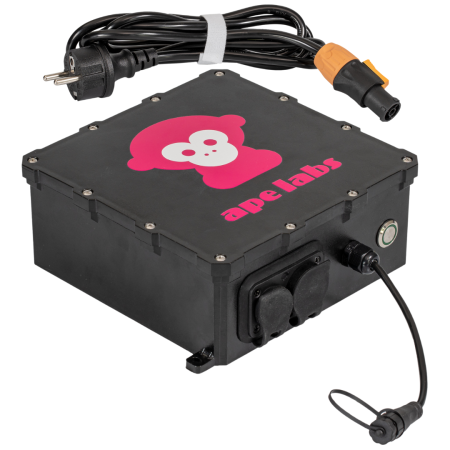

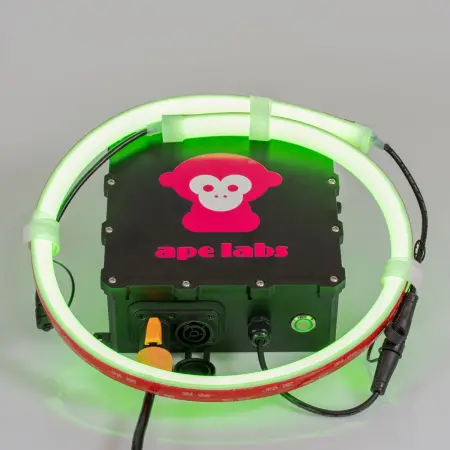

Plug-and-Play IP65 Powered Controller for Ape Labs Neon Stripe LED Strips
The Ape Labs NeonStripe Box is the ultimate solution for simplifying LED tape installations, offering an IP65-rated powered controller designed specifically for Ape Labs Neon Stripe LED strips. No soldering or complex wiring is required—simply plug and play. The NeonStripe Box features a built-in power supply and wireless control, eliminating the need for DMX or data cables. With compatibility across all Ape Labs control options, including the ApeRemote (RF remote), Ape Labs Connect (iOS or Android App), and wireless DMX via the Ape Labs Connect, this versatile controller is perfect for both indoor and outdoor installations.
Whether you're installing LED strips in weather-exposed areas or within a controlled environment, the NeonStripe Box is IP65 rated for protection against water and UV exposure, making it ideal for outdoor applications. The controller also supports 4-group management via the remote or app, allowing for flexible control of multiple zones or fixtures. Its built-in 100-watt Meanwell power supply unit powers up to 20 meters of Ape Labs Neon Stripe, offering reliable and efficient operation.
Ape Labs NeonStripe Box Competitive Differences
- IP65 waterproof and UV-resistant housing for outdoor use in various weather conditions.
- Built-in wireless control receiver, eliminating the need for DMX or data cables.
- Supports all Ape Labs control options: ApeRemote, wireless DMX, and smartphone app (Ape Labs Connect).
- 4-group management for controlling different zones or groups via remote or app.
- Automatic signal repeater from lamp to lamp for extended wireless range.
- 100-watt Meanwell power supply capable of powering up to 20 meters of Ape Labs Neon Stripe LED strips.
Ape Labs Ecosystem
- Control all Ape Labs items with a single RF Remote or App (or standard DMX)
- 1-Mile Wireless Range with App or DMX, 200ft Non-Directional Range with Remote
- Without DMX, still get DMX-Like effects with super-simple "grouping"
- MusikMode: 1-Button Light Show to Sound (Not 'Sound Active', a real light show)
- Automatic integration and syncing with every other Ape Labs product
- Smart set-ups instantly and seamlessly connect to your controller
- On-the-fly programming and remote addressing
- Cross-platform and Community Sharing of Scenes and Programs
- High CRI Output, Ultra Vivid Colors
- Hand Crafted Color Macros by Top Tier Event Professionals from USA
- Battery Life Extension: Set the time you need and lights auto dim to the max output for that duration
- Flicker Free Mode for Video Recording
- Wireless Range Increases as More Fixtures are Added (all have repeaters)
- Premium Components for Superior Quality
- Super High Efficiency: More Output with Less Power
- Solid State, Fanless Operation
- PWM (LED refresh rate) adjustable via smartphone app (500Hz to 4000Hz)
- Free Firmware Updates for Life
- Simplified design with smart software, ensuring ease of use and reliability.
- Compact and lightweight design, making it easy to transport and set up.
- 100% Designed, Engineered & Hand Assembled in Germany
- 3-Year USA Warranty
Ape Labs NeonStripe Box Features
- Plug-and-play controller for Ape Labs Neon Stripe LED strips
- Weatherproof and waterproof IP65 rating for outdoor installations
- Wireless control via ApeRemote, smartphone app (Ape Labs Connect), or DMX
- Supports 4 DMX universes and up to 4-group management
- DMX control: 4-channel mode (8 bit), 7-channel mode (8 bit), 8-channel mode (16 bit)
- 2.4 GHz wireless control with a max range of 100mW EIRP
- TRUE 1 Power input and loop socket for streamlined power connections
- RGBaW (4-channel LED controller) for dynamic color control
- 5-pin pigtail IP connector for Ape Labs Neon Stripe LED strips
Ape Labs NeonStripe Box Specifications
- Housing: IP65 rated, UV resistant
- Power Input: 100-240 VAC
- Power Output: 24 VDC
- Built-in 100-watt Meanwell power supply
- Max Power Output: Supports up to 20 meters of Ape Labs Neon Stripe LED strips
- Dimensions: 33 x 22 x 9 cm
- Weight: 1.5 kg
Apelabs Neon Stripe Control Box
(Ape Labs Neon Strip LED Tape Controller and Power Supply)
