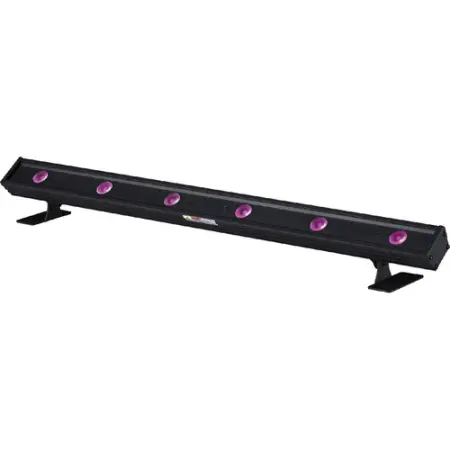

The Antari DarkFX Strip 510 UV Wash is an indoor-rated professional high-output UV LED wash strip, well suited for UV reactive material, art, amusement park displays, and signage with bright and vivid colors. The 6 x 1.9W high-power UV LEDs offer a peak wavelength of 365nm and a radiant flux output of 4500mW at full intensity (and minimal visible light). The fixture offers a 25° beam angle and is flicker-free for TV and film production. Special optics prevent wear degradation from high UV exposure. The aluminum extruded housing features two built-in adjustable brackets. A 22 AWG power/data bare-wire-end pigtail cable is attached on the back and connects to the Antari DarkFX Drive 4 fixture driver (sold separately), which is required for power and DMX control.
Note:
Requires connection to separately sold DarkFX Drive 4 for power and DMX control
Features:
IP20 indoor rated
High-efficiency UV LEDs
25° beam angle
365nm peak wavelength
Minimum visible light output
Special optics to prevent wear degradation from high UV exposure
4500mW high-output at full intensity
Flicker-free operation for TV and Film
Antari Strip 510 Specs:
Light Source 6 x 1.9 W High Power UV LEDs
20,000-Hour Average LED Life
Photometrics Optics: 25°
Peak Wavelength: 365nm
Radiant Flux Output: 4500 mW
Control and Connectors DarkFX Drive 4 Power/DMX Fixture Driver (Sold Separately)
Cable Connection: 22 AWG Bare Wire Power/Data Combo Cable
Power Requirements Power Input: 20 to 24 VDC
Power Consumption: 14 W Max
Approvals CE
Ratings IP20
Dimensions (L x W x H) 23.4 x 2.9 x 2.8" / 59.3 x 7.4 x 7.3 cm
Weight 2.4 lb / 1.1 kg
Elation DFX-L510
(Antari DFX L510)
