Art DJPRE-2

Designed to amplify and EQ your vinyl records, the DJ PRE II from ART allows you to play and record into a variety of sources including your digital audio workstation, sound card, home stereo, or main monitor system.

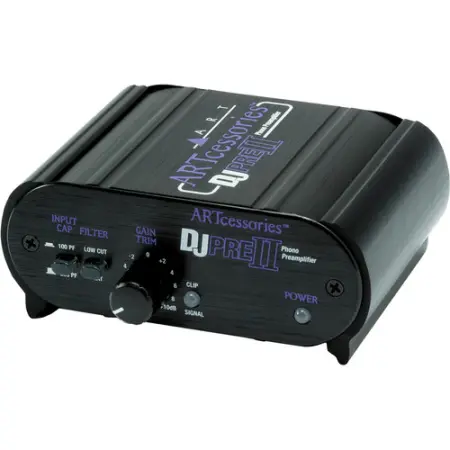

The DJ PRE II features a switched (100pF / 200pF) analog capacitance to optimize your phono cartridge response. A low cut filter removes turntable rumble, while leaving the audio pristine. The front gain control and signal/clip LED allow you to optimize the preamp's gain for a wide range of input sources.

The built-in low-noise circuitry is highly accurate and precisely conforms to the RIAA standard, while the low impedance line output can be used with any sound card. The DJ PRE II is housed in an all-aluminum black anodized chassis and ships with a power supply.

FEATURES:

High accuracy/low noise preamp
Switchable low cut rumble filter
Variable preamp gain
Signal present/clip indicator
Selectable cartridge loading

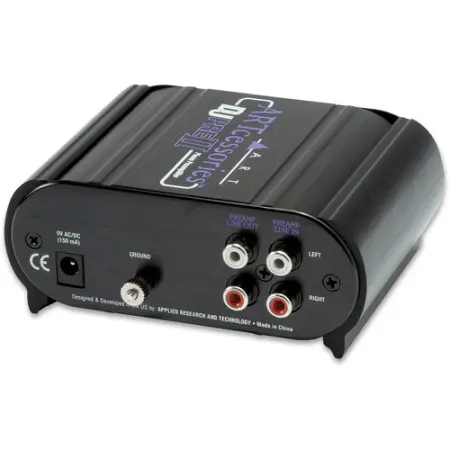

RCA preamp outputs
Heavy duty extruded chassis

SPECIFICATIONS:

Frequency Response 10 Hz to 50 kHz (±.5 dB)
EQ RIAA Characteristic Phono EQ Standard: Conforms to RIAA Curve
THD Total Harmonic Distortion: .01% typical @ 1 kHz
Hum & Noise > 90dB below clipping
Input Impedance 47 kOhms in parallel with either 100 pF or 200 pF
Maximum Input Level 40 mVrms @ 1 kHz
Maximum Gain 45 dB @ 1 kHz
In/Out Connections RCA
Maximum Output Level + 6 dBu (1.4 Vrms)
Filter Type Filter Type/Response: Switchable, low cut, -3 dB @ 22 Hz
Power Requirements 7-12 VDC or 9-12 VAC @ 150 mA
Dimensions 1.9 x 4.6 x 4.5" / 47.0 x 116.8 x 114.3 mm
Weight 1.3 lb / 0.6 kg
Packaging Info
Package Weight 1.25 lb
Box Dimensions (LxWxH) 9.95 x 5.25 x 2.8"

ART DJ Pre II (Art Phono Preamplifier)
