2-Channel Active DI Box for Instruments and Line-Level Sources
The
ART DualXDirect is a compact and versatile 2-channel active direct box, perfect for musicians, sound engineers, and studios needing to connect unbalanced signals to balanced audio systems. With flexible input options and dual power capabilities, it delivers clean, isolated audio performance whether on stage or in the studio.
ART DualXDirect Competitive Differences
- Two fully independent channels with combo 1/4" TRS / XLR inputs
- Transformer-isolated balanced XLR outputs ensure low-noise performance
- Thru jacks allow simultaneous amp and mixer connections
- Runs on either phantom power or a 9V battery with over 100 hours of life
- Individual 30dB attenuation and ground lift switches per channel
- Wide frequency response from 10 Hz to 100 kHz
ART DualXDirect Description
The
ART DualXDirect is designed for flexibility and reliability in any audio environment. Its rugged aluminum housing contains two independent active direct input channels, each equipped with a 1/4" TRS / XLR combo jack, thru jack, and transformer-isolated XLR output. Whether you're connecting a guitar, bass, keyboard, or other line-level device, the DualXDirect ensures clean signal conversion with minimal distortion.
The active circuitry is ideal for matching impedance with passive pickups or piezo-equipped instruments, and the unit operates with either phantom power (18–48V) or a 9V battery for complete portability. With individual 30dB pads and ground lift switches on each channel, users can quickly adapt to varying source levels and eliminate hum or noise.
Whether for stage or studio, the DualXDirect provides a transparent, reliable DI solution with an intuitive layout and pro-grade performance.
DualXDirect Features

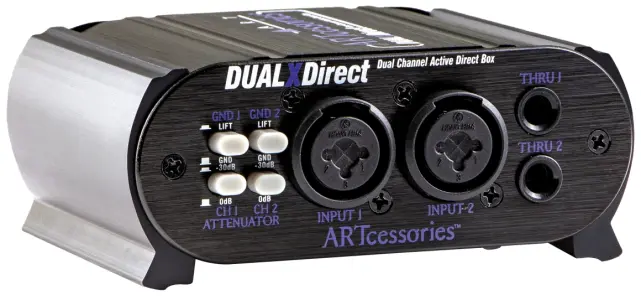

- 2 completely independent channels
- 1/4" TRS / XLR combo input jacks
- 1/4" Thru connectors for direct amp feed

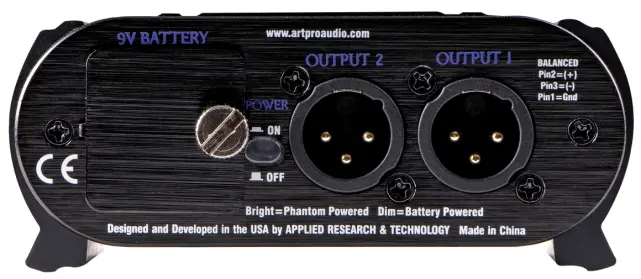

- Balanced XLR transformer-isolated outputs
- Switchable 30dB input attenuation per channel
- Ground lift switches per channel to eliminate hum
- Operates on 9V battery or 18–48V phantom power
- Compact, rugged aluminum enclosure
DualXDirect Specifications
- Type: Active DI Box
- Inputs: 2x 1/4" TRS / XLR Combo Jacks
- Outputs: 2x XLR, 2x 1/4" TRS Thru
- Input Impedance: 470 kΩ
- Output Impedance: <600Ω
- Max Input Level: +4 dBu above attenuation setting
- Max Output Level: +6 dBu (battery), +14 dBu (phantom)
- Frequency Response: 10 Hz – 100 kHz, ±0.5 dB @ 0 dBu
- Dynamic Range: >100 dB (typical)
- Total Harmonic Distortion: <0.05% (typical)
- Channel Separation: >80 dB (typical)
- Controls: Attenuator (0 dB, -30 dB), Ground Lift (per channel)
- Power Requirements: 9V battery (7.5 mA) or 18–48V phantom (6.5 mA per channel)
- Battery Life: 100+ hours
- Dimensions: 1.85" x 4.6" x 3.9" (HWD)
- Dimensions: 4.7 cm x 11.7 cm x 9.9 cm
- Weight: 0.84 lbs (380 g)
Art DualX Direct Box (Active)
(Art Dual Active DI Box Dual X-Direct)
