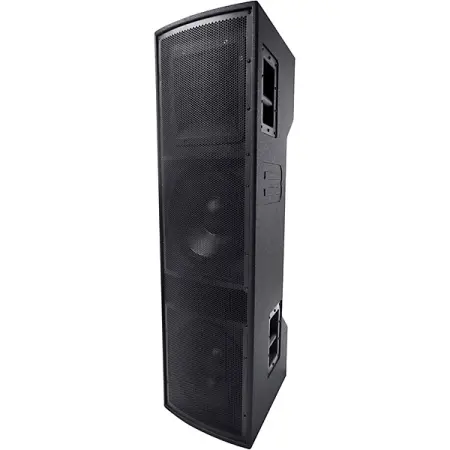

BassBoss AT212-MK3

BASSBOSS AT212-MK3 | Active High-Output 2-Way Loudspeaker with 3,300W Class-D Amplifier

Active High-Output 2-Way Loudspeaker for Live Sound Productions

The BASSBOSS AT212-MK3 is an active, high-fidelity, and massively efficient 2-way loudspeaker designed to deliver phenomenal sound quality and output. Ideal for live sound productions and all types of events, the AT212-MK3 can be used as a standalone full-range system or paired with a subwoofer system for a complete 3-way active setup. The tall, slim design allows the HF horn to project above crowds when stacked on subwoofers, while the lightweight cabinet ensures easy stacking by a single person.

BASSBOSS AT212-MK3 Competitive Differences

• True 3,300W RMS power from a state-of-the-art asymmetrical Class-D amplifier.
• 96kHz processors with pristine sound quality and eight onboard presets.
• Dual Ethernet ports with a built-in network switch for remote control and DSP updates.
• IP65 waterproof connectors and global power compatibility (90–250VAC).
• Constructed from premium 18 mm Baltic birch plywood with a rugged polyurethane coating.
• Rotatable 80° x 60° horn for versatile coverage in various applications.

Full Product Description of BASSBOSS AT212-MK3

The BASSBOSS AT212-MK3 is engineered for exceptional performance in any live sound application. Featuring a powerful 3,300W RMS Class-D amplifier, this loudspeaker delivers outstanding dynamic resolution, precise control, and low current draw. The integrated DSP provides pristine sound quality with 96kHz processing and eight onboard presets that adapt to different configurations and environments.

Built for scalability, the AT212-MK3 is capable of matching an incredible number of LF elements, providing enough mid and high output for a wide range of applications. Its tall, slim design is optimized for stacking on subwoofers, and the lightweight cabinet makes it easy to handle. The cabinet is constructed from premium 18 mm Baltic birch plywood, finished with a rugged black polyurethane coating for maximum durability.

The AT212-MK3's transducers include two 12" mid-bass drivers and a 1.4" throat horn-loaded compression driver, both featuring neodymium motors for the highest efficiency-to-weight ratio. The rotatable horn offers 80° x 60° coverage and can be configured in arrays for broader coverage angles. The loudspeaker is equipped with IP65 waterproof connectors, making it suitable for use in unpredictable environments.

The AT212-MK3 also features Control BASSBOSS software, which provides additional computer-accessible presets, networked remote control, and remote DSP update capabilities. This makes the AT212-MK3 not only powerful but also incredibly flexible for various sound reinforcement needs.

BASSBOSS AT212-MK3 Features

• 2-way loudspeaker with full-range capabilities
• 96kHz processors with pristine sound quality and onboard presets
• 3,300 watts of RMS power from an asymmetrical Class-D amplifier
• IP65 waterproof connectors for use in diverse environments
• Rotatable 80° x 60° horn for versatile coverage
• Constructed from 18 mm Baltic birch plywood with rugged polyurethane coating
• Dual Ethernet ports for networked remote control and DSP updates
• Global power compatibility: 90–250VAC

BASSBOSS AT212-MK3 Specifications

• Frequency response (±3 dB): 45–18,000Hz
• Sensitivity: LF: 107dB; HF: 107dB
• Maximum sustained output: 136dB
• Max SPL (peak): 139dB
• Nominal dispersion (H° x V°): 80 x 60 (rotatable)
• Amplification: 3,300W Class-D amplifier
• Processing: High and low pass, equalization, phase alignment, and limiting
• Enclosure type: 2-way, active, full range, direct radiating vented LF section, horn-loaded HF section
• Transducer (low frequency): 2 x 12" diameter (300 mm) neodymium motor woofer with 4" (101.6 mm) voice coil, waterproof cone
• Transducer (high frequency): 1.4" exit 3" (76.2 mm) voice coil compression driver mounted to 80° x 60° constant directivity horn
• Cabinet construction: 18 mm Baltic birch plywood, 15 mm braced sides, dado joinery, 4 steel bar handles, 30° trapezoid
• Dimensions (HxWxD): 47.75" x 14.3" x 17.75" (121.3 x 36.3 x 45.1 cm) with 5.3" (13.5 cm) wide rear
• Net weight: 89 lb. (40.4 kg)

Bass Boss AT212 MK3 (BassBoss AT212)
