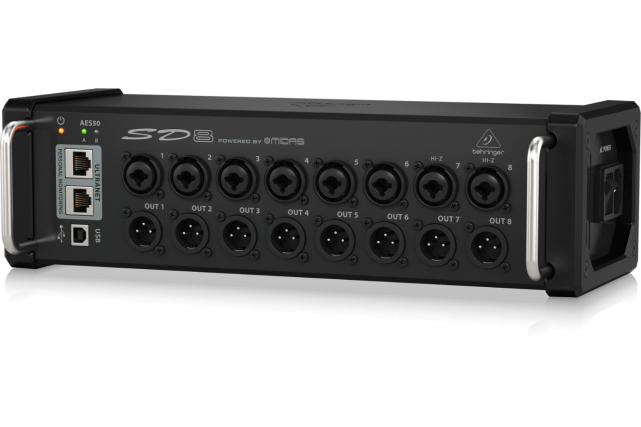

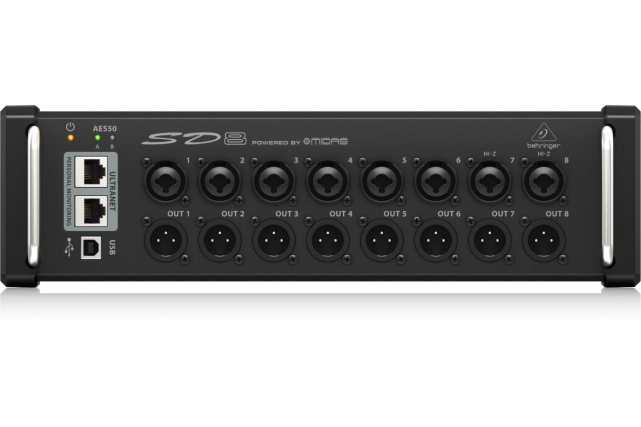

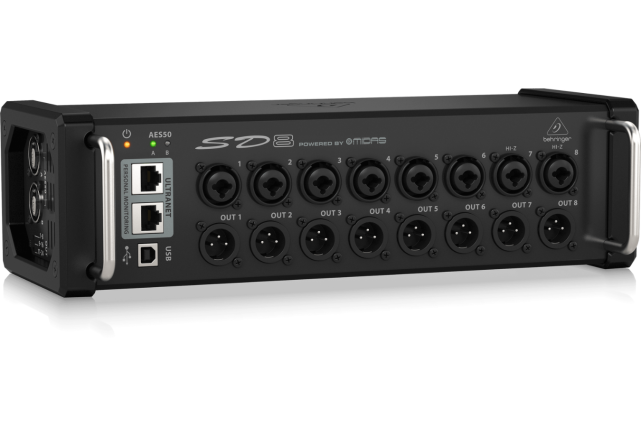

Behringer SD8

Digital Stage Box

Behringer SD8 is a compact digital stage box designed to expand your system’s inputs and outputs with high-quality remote-controlled preamps and low-latency networking. Built for seamless integration with AES50-equipped mixers, it delivers reliable performance for live sound, installations, and touring applications.

Behringer SD8 Competitive Differences

• 8 Midas-designed, fully programmable mic preamps for premium sound quality
• Integrated ULTRANET hub for direct connection to personal monitoring systems

Behringer SD8 Description

The Behringer SD8 provides flexible and high-performance audio distribution in a rugged, portable format. Equipped with 8 Midas-designed mic preamps, it ensures pristine audio capture with remote control capability when paired with compatible digital mixers. This makes it ideal for front-of-house, stage, and broadcast environments where precision and reliability are critical.

With dual AES50 ports powered by Klark Teknik’s SuperMAC technology, the SD8 delivers ultra-low latency and jitter-free audio transmission over standard CAT5e cables. You can easily cascade multiple units for expanded channel counts without the need for additional routers or mergers, simplifying large system setups.

The built-in ULTRANET hub allows direct connection to Behringer P16-M personal monitoring mixers, giving performers control over their own monitor mixes. Additionally, the SD8 supports ULTRANET-enabled Turbosound speakers, making it a versatile hub for both monitoring and speaker integration.

Housed in a rugged all-steel chassis with included rack ears and protective bumpers, the SD8 is equally suited for permanent installations and life on the road. Its compact footprint and durable design ensure dependable performance in demanding environments.

SD8 Features

• 8 Midas-designed, remote-controllable mic preamps
• 6 combo XLR-1/4" mic/line inputs and 2 combo inputs with Hi-Z support
• 8 servo-balanced XLR outputs

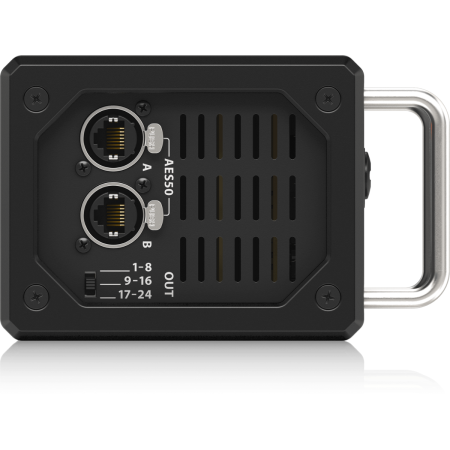

• Dual AES50 ports with SuperMAC networking for low latency and jitter
• 2-port ULTRANET hub for personal monitoring systems
• Direct ULTRANET connectivity for compatible speaker systems
• Remote operation via CAT5e cable up to 330 ft (100 m)
• USB port for firmware updates

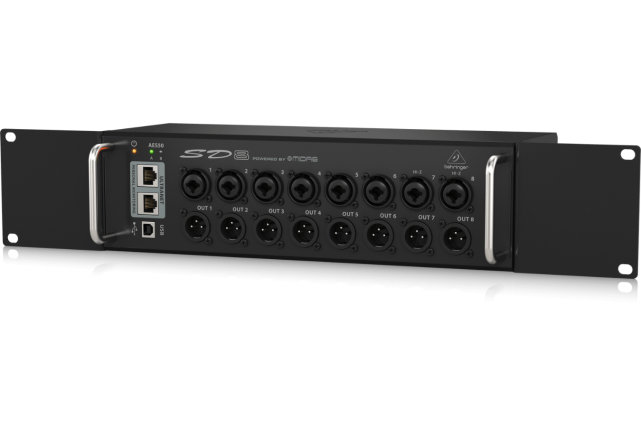

• Rackmountable design with included rack ears and protective bumpers
• Durable all-steel chassis for touring and installation use

SD8 Specifications

• Type: Digital Stage Box
• Channels: 8
• Inputs: 6 x XLR-1/4" combo (mic/line), 2 x XLR-1/4" combo (mic/line/Hi-Z)
• Phantom Power: Yes
• Outputs: 8 x XLR
• Data I/O: 2 x AES50, 2 x ULTRANET
• USB: 1 x Type B
• Computer Connectivity: USB
• Rackmountable: Yes

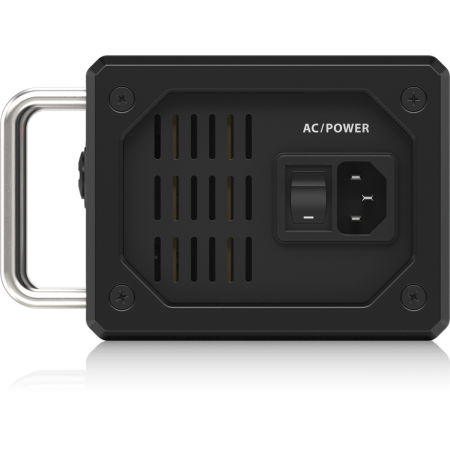

• Power Source: Standard IEC AC cable
• Height: 3.7 in
• Width: 13.1 in
• Depth: 5.9 in
• Weight: 5.5 lb

What's In The Box

• Behringer SD8 stage box
• Rack ears
• Protective bumpers
• IEC power cable

Behringer SD8 (Behringer 000-BKI02-00010)
