Behringer SD16

Digital Stage Box

Behringer SD16 is a digital stage box designed to expand compatible mixing systems with remote-controlled mic preamps, flexible I/O, and integrated personal monitoring distribution. It is ideal for live sound, houses of worship, and installed audio systems that require efficient signal routing and simplified cabling.

Behringer SD16 Competitive Differences

• 16 Midas-designed, fully programmable mic preamps including Hi-Z inputs for instruments
• Built-in 4-port ULTRANET hub for direct connection of personal monitoring mixers

Behringer SD16 Description

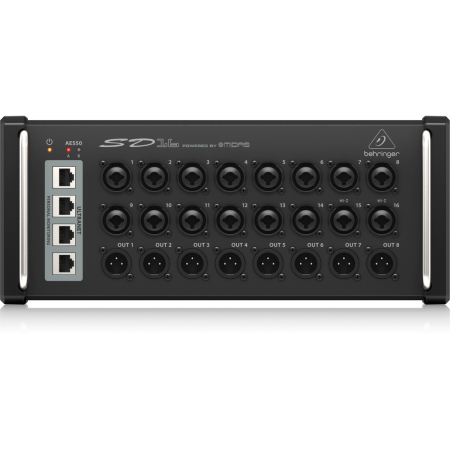

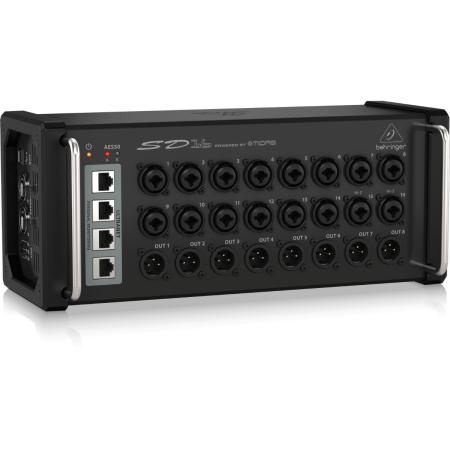

The Behringer SD16 is engineered to bring inputs and outputs closer to the performance area while maintaining full remote control from compatible digital consoles. It features 16 Midas-designed mic preamps, including 2 Hi-Z compatible inputs for direct connection of guitars or basses, making it a versatile solution for both band and installed sound applications.

With 8 servo-balanced XLR outputs and dual AES50 networking ports, the SD16 enables high-quality digital audio transmission over shielded CAT5e cable with low latency and minimal jitter, thanks to Klark Teknik SuperMAC technology. Multiple stage boxes can be cascaded easily without requiring additional routing hardware.

A standout feature of the SD16 is its integrated 4-port ULTRANET distribution hub, allowing direct connection of up to four Behringer P16-M personal monitoring mixers without the need for external distribution units. It also supports digital audio and control connectivity for compatible Turbosound speaker systems.

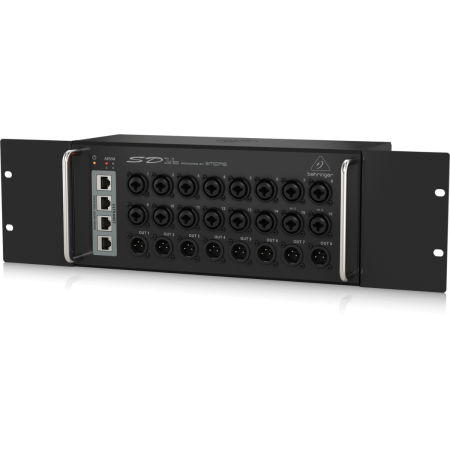

Designed for both mobile and installed use, the SD16 includes rack ears and protective bumpers for flexible deployment. Its rugged all-steel chassis ensures durability on the road, while the compact form factor makes it easy to position on stage or in tight spaces.

SD16 Features

• 16 Midas-designed, fully programmable mic preamps
• 14 combo XLR/TRS inputs (mic/line) and 2 combo XLR/TRS inputs (mic/line/Hi-Z)
• 8 analog, servo-balanced XLR outputs
• 2 AES50 ports with Klark Teknik SuperMAC technology
• 4-port ULTRANET hub for up to 4 Behringer P16-M personal monitoring mixers
• Digital audio and control connectivity for Turbosound speakers via ULTRANET
• Dual AES50 ports for cascading multiple stage boxes
• Remote operation via CAT5e cable up to 330 ft / 100 m
• USB port for firmware updates
• Rack ears and protection bumpers included
• Compact, roadworthy all-steel chassis

SD16 Specifications

• Product Type: Digital Stage Box
• Channels: 16
• Inputs: 14 x XLR/TRS combo (mic/line), 2 x XLR/TRS combo (mic/line/Hi-Z)
• Mic Preamps: 16 remote-controllable Midas-designed preamps
• Phantom Power: Yes
• Outputs: 8 x XLR
• Data I/O: 2 x AES50 (locking Ethernet), 4 x RJ-45 (ULTRANET)
• USB: 1 x Type B
• Computer Connectivity: USB
• Rackmountable: Yes (rack ears included)

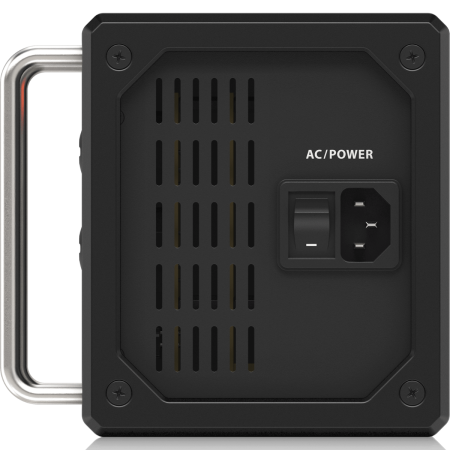

• Power Source: Standard IEC AC cable
• Height: 5.5 in (139.7 mm)
• Depth: 5.9 in (149.9 mm)
• Width: 13.1 in (332.7 mm)
• Weight: 7.1 lb (3.2 kg)

What's In The Box

• Behringer SD16 digital stage box
• Rack ears
• Protective bumpers
• IEC power cable

Behringer SD16 (Behringer 000-BKE02-00010)
