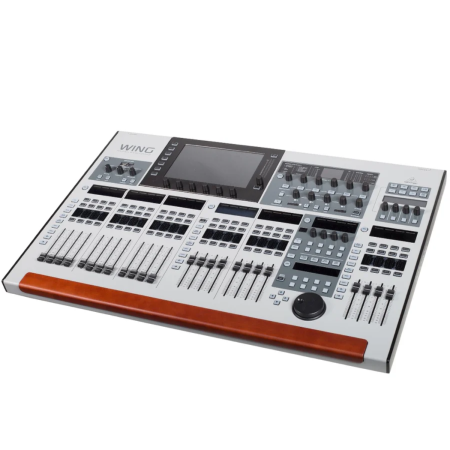

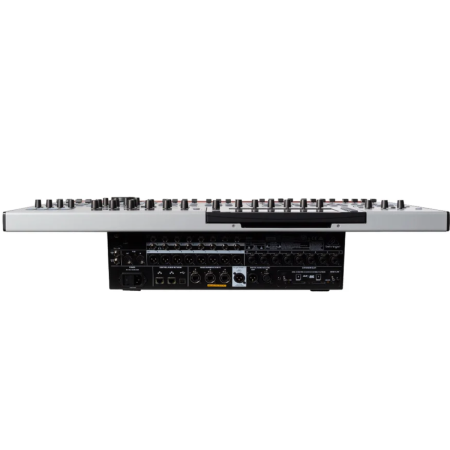

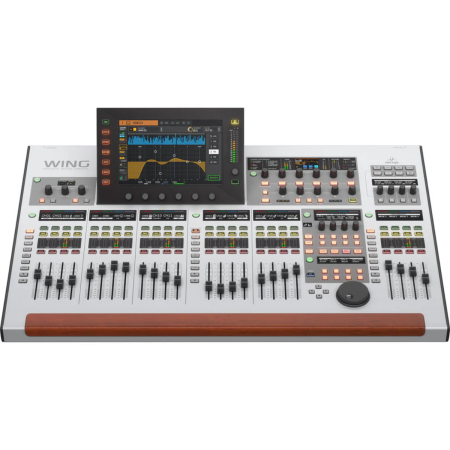

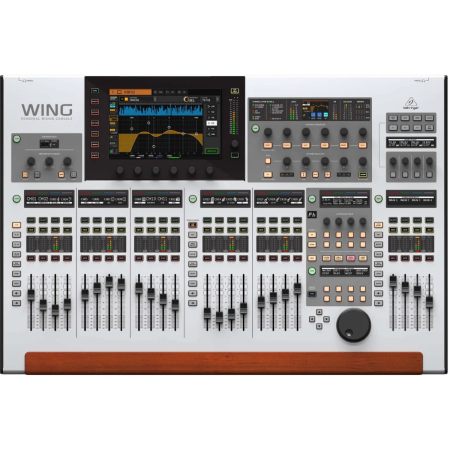

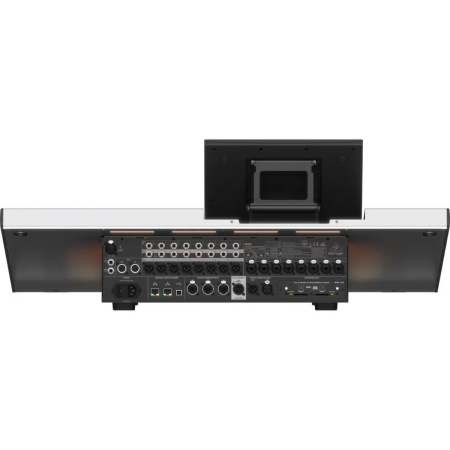

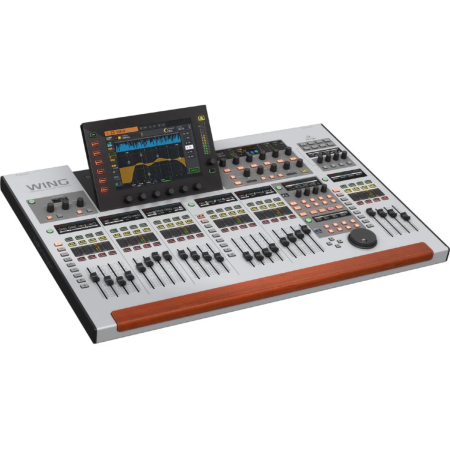

Behringer WING

Digital Mixing Console

Behringer WING is a professional 48-channel digital mixing console built for modern live sound, broadcast, and recording environments. Combining a large capacitive touchscreen interface with motorized faders and powerful internal processing, the console delivers flexible routing, intuitive control, and high-quality audio performance for demanding productions.

Behringer WING Competitive Differences

• 48 stereo channels with 24 motorized 100mm faders and a 10.1-inch capacitive touchscreen
• 8 MIDAS Pro mic preamps, 16 stereo effects processors, and built-in 48x48 USB audio interface

Behringer WING Description

The Behringer WING digital mixer is designed to provide a powerful yet intuitive mixing experience. Its interface centers around a large 10.1-inch capacitive touchscreen paired with touch-sensitive rotary controls and three configurable fader sections. This layout allows engineers to tailor the console to their workflow, making it easy to manage complex mixes in live production, broadcast environments, or recording setups.

The mixer features 48 stereo channels with 40 stereo input processing channels and eight stereo auxiliary channels. Each channel can operate in mono, stereo, or mid-side mode without requiring traditional channel linking, allowing engineers to adapt quickly to different sources. Behringer’s innovative “Sources” system stores metadata such as icons, colors, tags, and gain settings with each input, making large channel counts easier to organize and manage.

Sound quality is supported by eight MIDAS Pro mic preamps and advanced internal processing. The console includes 16 true stereo effects processors, featuring both standard effects and premium algorithms inspired by classic studio hardware and renowned effects units. Each channel and bus includes extensive EQ and dynamics processing to shape mixes with precision.

Connectivity and expansion are central to the WING’s design. Three AES50 ports allow connection of up to 144 remote inputs and outputs using compatible digital stage boxes. The console also includes a built-in 48-in/48-out USB audio interface for DAW recording, dual SD card slots for 64-channel direct recording, and optional expansion cards for Dante networking. With flexible routing, powerful DSP, and intuitive controls, the WING is built for professional engineers who require both performance and adaptability.

WING Features

• 48 stereo channel digital mixing console
• 40 stereo input processing channels and 8 stereo auxiliary channels
• 24 smooth 100mm motorized faders
• 10.1-inch capacitive touchscreen with adjustable swivel
• Touch-sensitive rotary controls and customizable control section
• 8 MIDAS Pro mic preamps
• 16 stereo effects processors including premium modeled effects
• Sources system for managing input metadata, icons, colors, and tags
• Channels configurable as mono, stereo, or mid-side
• 28 stereo buses including 16 aux buses, 8 matrix buses, and 4 main buses
• 3 AES50 ports supporting up to 144 remote I/O signals
• Built-in 48-in / 48-out USB audio interface for DAW recording
• WING-LIVE card for up to 64-channel recording to dual SD cards
• StageCONNECT interface for 32 channels of low-latency I/O
• Optional expansion cards for Dante networking
• Auto Pilot automixing with two gain-sharing groups
• Dual solo and monitor buses per channel
• Compatibility with Behringer and MIDAS digital stage boxes
• WING Co-Pilot tablet app for remote control and setup

WING Specifications

• Type: Digital Mixer
• Channels: 48
• Mic Preamps: 8 x XLR-1/4" combo inputs
• Phantom Power: 8 channels
• Main Outputs: 8 x XLR
• Digital Inputs: AES/EBU, 3 x AES50 EtherCON, StageCONNECT
• Digital Outputs: AES/EBU, 3 x AES50 EtherCON, StageCONNECT
• Aux I/O: 8 x 1/4" TRS aux in, 8 x 1/4" TRS aux out
• Buses: 16 stereo aux buses, 8 stereo matrix buses, 4 stereo mains
• Inserts: Dual inserts per bus
• MIDI I/O: In / Out
• Network Ports: 2 x Ethernet
• Headphone Outputs: 2 x 1/4"
• USB: Type-B (computer), Type-A (storage)
• Computer Connectivity: USB 2.0, 48 x 48 channels
• I/O Expansion: 1 x expansion port
• Faders: 24 x 100mm motorized
• A/D Resolution: Up to 24-bit / 192kHz
• Channel EQ: 6-band parametric
• Bus EQ: 8-band parametric
• Effects: 8 premium stereo processors, 8 standard stereo processors
• Screen: 10.1-inch capacitive touchscreen
• Storage: Dual SD card slots
• Power: Standard IEC AC
• Dimensions: 34.3 x 22.6 x 7.9 in
• Weight: 52.8 lb

What's In The Box

• Behringer WING digital mixer
• IEC power cable

Behringer 000-BV202-00010 (Behringer 000BV20200010)
