Behringer XR12

Tablet-Controlled Digital Mixer

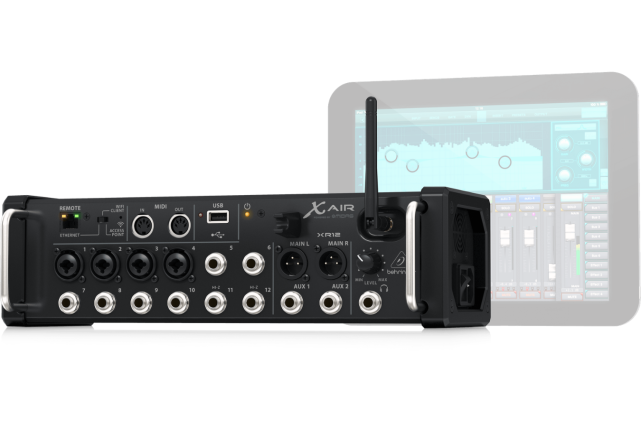

Behringer XR12 is a compact, rackmountable digital mixer designed for wireless control via iOS, Android, and computers. With built-in WiFi, Midas-designed preamps, and powerful DSP processing, it delivers professional mixing capabilities for live sound, studio recording, and installed systems.

Behringer XR12 Competitive Differences

• Integrated tri-mode WiFi router for direct wireless control without external hardware
• Dugan-style auto-mixing for automatic microphone gain balancing

Behringer XR12 Description

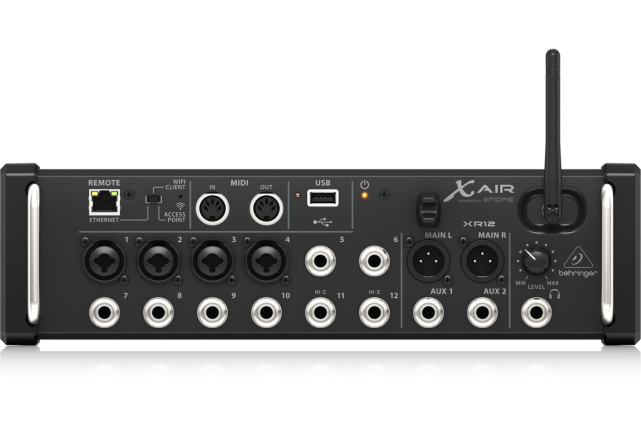

The Behringer XR12 offers a powerful and flexible mixing solution in a compact stage box format. With 12 inputs including 4 Midas-designed mic preamps and 8 line inputs, it provides clean, high-quality audio capture suitable for bands, houses of worship, and small venues.

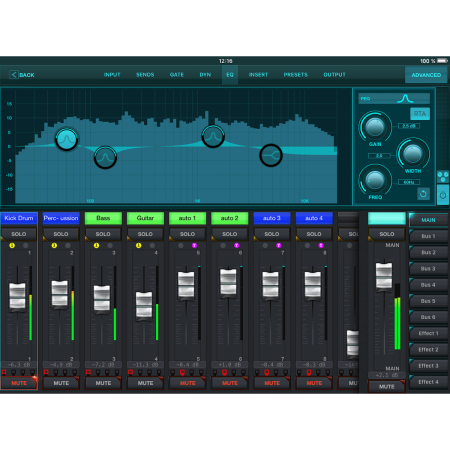

Its built-in tri-mode WiFi router allows direct wireless control from tablets, smartphones, or computers, eliminating the need for external networking gear. The intuitive control apps provide full access to mixing, routing, effects, and EQ settings from anywhere in the venue.

Advanced DSP powered by a 40-bit floating-point engine ensures high headroom and near-zero latency performance. The mixer includes four stereo effects engines modeled after classic studio processors, along with full dynamics processing and EQ on all channels and buses. A 100-band real-time analyzer (RTA) provides detailed visual feedback for precise tuning.

Additional features like Dugan-style auto-mixing automatically manage multiple microphones, making it ideal for panel discussions, conferences, and spoken word applications. With USB stereo recording and playback, MIDI control, and flexible mounting options, the XR12 is a versatile solution for modern audio environments.

XR12 Features

• 12-input digital mixer with tablet and computer control
• 4 Midas-designed, programmable mic preamps with 48V phantom power
• 8 balanced TRS line inputs
• Built-in tri-mode WiFi router for direct wireless operation
• Dugan-style auto-mixing for automatic mic level management
• 4 stereo FX engines with high-end effect simulations
• 6 aux buses plus main LR with full dynamics and EQ
• 100-band real-time analyzer (RTA) for all EQ channels
• USB stereo recording and playback (WAV format)
• MIDI In/Out with Mackie Control support

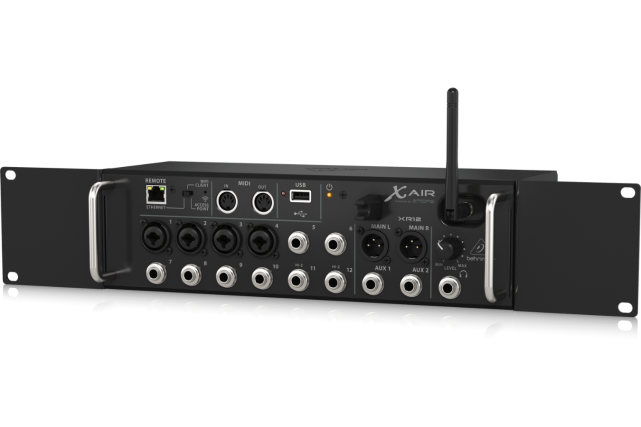

• Rackmountable with included ears and protective bumpers
• Remote control via iOS, Android, PC, Mac, and Linux

XR12 Specifications

• Processing Channels: 16 input channels, 4 FX returns, 6 aux buses, main LR
• Mic Inputs: 4 x XLR/TRS combo (Midas preamps)
• Line Inputs: 8 x TRS (balanced)
• Main Outputs: 2 x XLR (balanced)
• Aux Outputs: 2 x TRS (balanced)
• Headphone Output: 1 x TRS
• MIDI I/O: 1 x In / 1 x Out (DIN)
• USB: Type A (stereo recording/playback)
• Ethernet: 1 x RJ45
• Signal Processing: 40-bit floating point DSP
• A/D-D/A Conversion: 24-bit, 44.1 / 48 kHz
• Dynamic Range (A/D): 114 dB
• Latency: 0.8 ms
• Frequency Response: 10 Hz – 22 kHz
• Max Input Level: +23 dBu (XLR), +21 dBu (TRS)
• Output Level: +4 dBu nominal, +16 dBu max
• WiFi: 2.4 GHz, 802.11 b/g, up to 4 clients

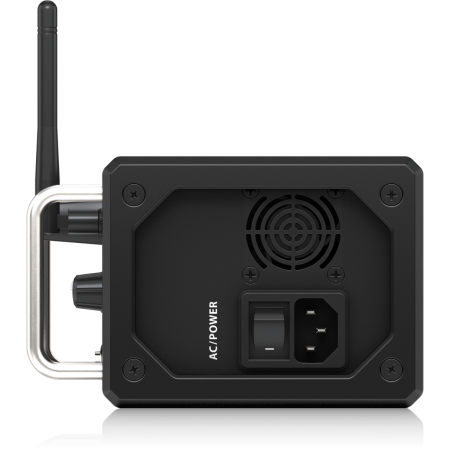

• Power Supply: 100–240V AC, 50/60 Hz
• Power Consumption: 30 W
• Dimensions: 13.1 × 5.9 × 3.7 in (333 × 149 × 95 mm)
• Weight: 5.3 lb (2.4 kg)

What's In The Box

• Behringer XR12 digital mixer
• Rack ears
• Protective bumpers
• Power cable

Behringer XR12 (Behringer 000-BI602-00010)
