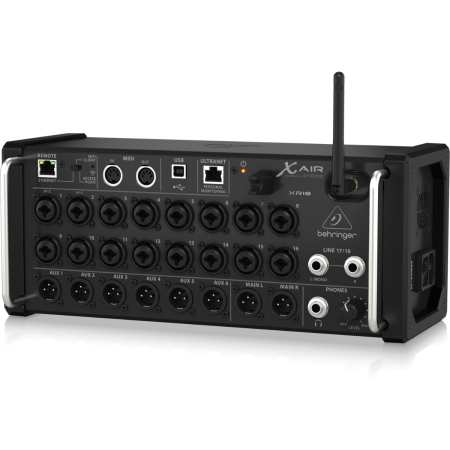

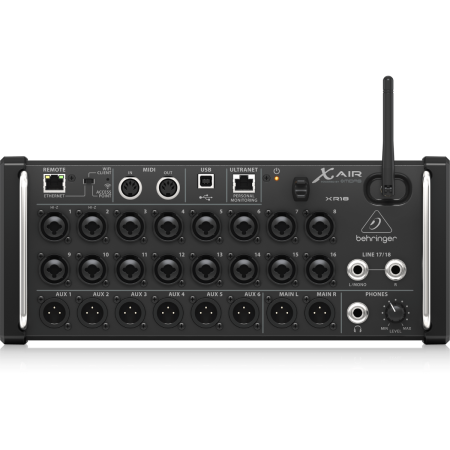

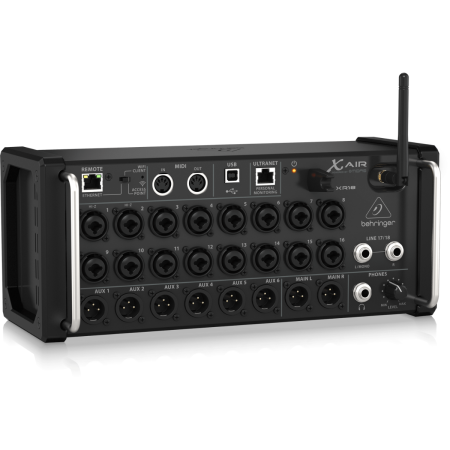

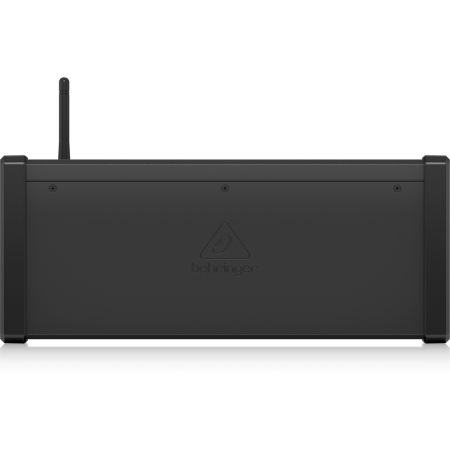

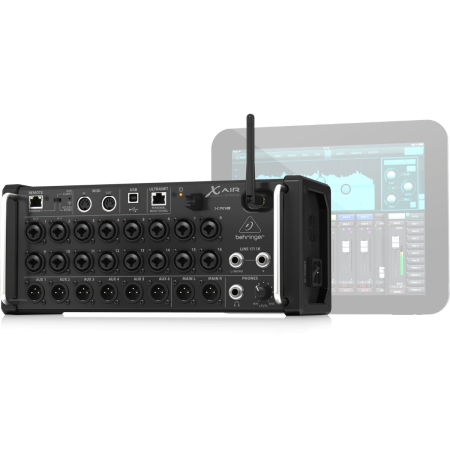

Behringer XR18 X Air

Digital Mixer

Behringer XR18 is a compact, tablet-controlled digital mixer designed for live sound and studio recording applications. It combines high-quality mic preamps, onboard DSP processing, and wireless control in a portable format, making it ideal for bands, engineers, and installed sound systems.

Behringer XR18 Competitive Differences

• Built-in tri-mode WiFi router for direct wireless control without external hardware
• 18x18 USB audio interface for multitrack recording and playback

Behringer XR18 Description

The Behringer XR18 delivers powerful digital mixing capabilities in a compact stagebox-style format, controlled entirely via iOS, Android, or computer applications. With 16 Midas-designed programmable mic preamps and 18 inputs, it provides clean, detailed audio capture suitable for both live performances and recording sessions.

Its integrated tri-mode WiFi router allows direct wireless connection, eliminating the need for external networking equipment in many setups. Alternatively, users can connect via Ethernet or LAN for increased reliability in demanding environments. This flexibility makes the XR18 a strong choice for mobile engineers, bands, and fixed installations.

The mixer features an 18x18 USB interface for seamless multitrack recording and playback, allowing direct integration with DAWs on Mac, Windows, or Linux systems. Additionally, ULTRANET connectivity supports Behringer P16 personal monitoring systems, expanding monitoring capabilities on stage.

Advanced DSP processing includes a 40-bit floating-point engine, four stereo effects slots from the X32 series, and a 100-band real-time analyzer for precise EQ adjustments. Features like Dugan-style auto-mixing, full dynamics processing, and flexible bus routing make it a powerful solution for managing complex mixes with minimal effort.

XR18 Features

• 18-channel, 12-bus digital mixer for tablet and computer control
• 16 Midas-designed, fully programmable mic preamps
• Built-in tri-mode WiFi router for direct wireless operation
• 18 x 18 USB audio interface for multitrack recording and playback
• Dugan-style auto-mixing for automatic gain sharing
• X32 effects rack with 4 stereo FX slots
• 100-band real-time analyzer (RTA) for all channel and bus EQs
• ULTRANET connectivity for P16 personal monitoring systems
• 6 aux buses and main LR with full dynamics and EQ
• 6 XLR aux outputs and 2 XLR main outputs
• 40-bit floating-point DSP for high dynamic range and low latency
• Remote control via iOS, Android, PC, Mac, and Linux apps
• MIDI In/Out with Mackie Control support

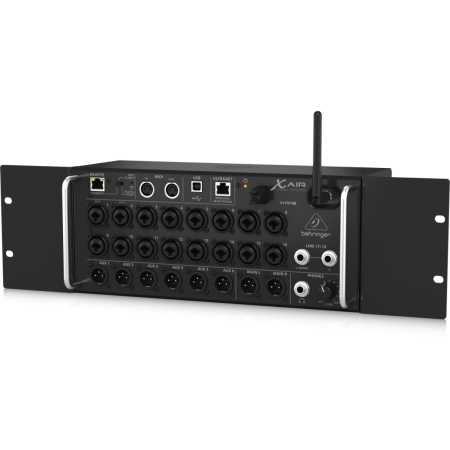

• Rack ears and protection bumpers included
• Internal switch-mode power supply

XR18 Specifications

• Product Type: Digital Mixer
• Channels: 18
• Mic Inputs: 16 x XLR/TRS combo
• Line Inputs: 2 x 1/4 in TRS
• Phantom Power: Yes (remote controlled)
• Main Outputs: 2 x XLR
• Aux Outputs: 6 x XLR
• ULTRANET: 1 x RJ-45
• Buses: 12
• USB Interface: 18 x 18 (Type B)
• Data I/O: 1 x Ethernet
• Computer Connectivity: Ethernet, WiFi, USB
• MIDI I/O: In/Out
• Headphone Output: 1 x 1/4 in TRS
• EQ: 100-band Real Time Analyzer (RTA)
• Effects: 4 stereo FX engines (reverb, delay, modulation, dynamics)
• Rackmountable: Yes
• Height: 5.9 in (149.9 mm)
• Depth: 5.5 in (139.7 mm)
• Width: 13.1 in (332.7 mm)
• Weight: 7.1 lb (3.2 kg)

What's In The Box

• Behringer XR18 digital mixer
• Rack ears
• Protective bumpers
• Power cable

Behringer XR18 (Behringer XR18 X AIR)
