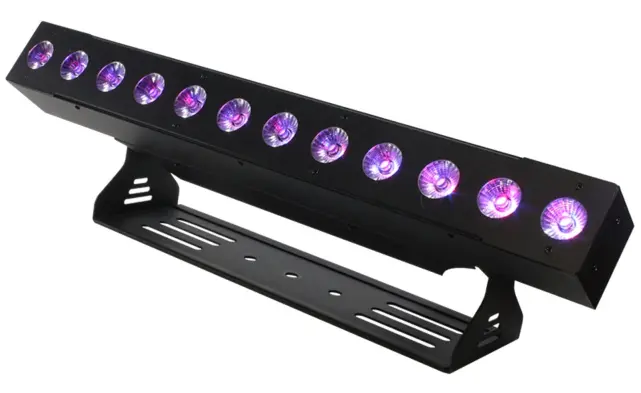

Blizzard Lighting Hot Stick EXA (Blizzard HotStik EXA LED Wash Bar)
Blizzard HotStik EXA Features:
12x 15-watt RGBAW+UV 6-in-1 LEDs
All-metal enclosure
Metal mounting bracket
POWERCON compatible power in/out connectors
DMX-512, auto, sound active, and LED control panel
Able to directly power the wiCICLE wireless system via DMX.
Get your lighting mojo back with RGBAW+UV LEDs!
With 12x totally bright 15-watt RGBAW+UV 6-in-1 LEDs, the Blizzard HotStik EXA fixtures give you the ability to create any rich, vibrant color you can possibly imagine, then you can even add ultraviolet light to the mix to give it an eerie hue. Maybe create a custom scene with some beautiful, slow color fades leading into full on UV, alternating with a few brilliant blasts of cool white strobe. The possibilities are endless with 6-in-1 RGBAW+UV LEDs, they are truly amazing!
With an awesome array of built-in color macros, automated programs, plus sound active mode via master/slave, the Blizzard HotStik EXA LED Wash Bar is a perfect solution for any type of accent lighting. Plus, with the flexibility of either 3/6/8/10/11-channel DMX modes, makes the HotStik™ EXA a great choice for theatrical and production work as well. Whatever the need, the Blizzard HotStik EXA delivers outstanding color reproduction in a smart, compact linear wash package!
The Blizzard HotStik EXA LED Wash Bars offer a wide variety of DMX channel modes, which means they work great with any type of controller, and especially when in 6-channel mode; they are a perfect fit with our Kontrol 6 and Kontrol 6 Skywire controllers that have six dedicated R/G/B/A/W/UV sliders. Then in extended mode, you’ll have full control of all the Blizzard HotStik EXA has to offer such as RGBAW+UV color mixing, 35 built-in programs, ultra smooth flicker-free 32-bit dimming (5 user-selectable dimming curves), and even easy HSV color mixing ability in 3-channel mode.
The super-easy to use built-in 4-button LED control panel also allows total control over the fixture including master/slave settings, sound active mode, built-in programs, auto mode, custom RGBAW+UV color mixing, and user adjustable fade/strobe effects for an unbelievable light show!

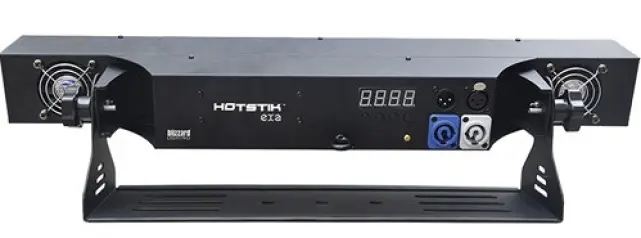

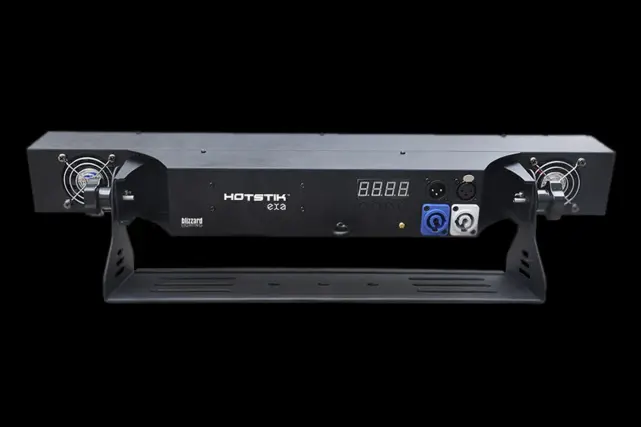

This Blizzard HotStik EXA LED Wash Bar also comes equipped with industry standard powerCON® compatible power input/output connections and 3-pin wiCICLE® enabled DMX input/output connections, which means the DMX jacks can directly supply power to our wiCICLE® wireless DMX system. An innovative design, that meaning even fewer cords and less setup time!
And of course, it is also backed by Blizzard's 2-year warranty!
• RGBAW+UV color mixing via 12x 15W 6-in-1 LEDs
• Variable electronic strobe
• Variable electronic dimmer
• Built-in color & chase macros via DMX
• Built-in automated programs + Sound Active via master/slave
• RGBAW+UV color mixing ability in standalone mode
• 3-pin male input and 3-pin female output
• User selectable 3/6/8/10/11-channel DMX modes
• Able to directly power the wiCICLE® wireless system via DMX
• Easy to use LED control panel
• PowerCon™ compatible AC power In/Out connectors
Power
• Operating Voltage: 100-264VAC, 47-63 Hertz
• Power Consumption: 104W, .1.36A
• Power Factor: .63
Light Source
• LED: 12x 15W 6-in-1 LEDs 100,000 hours.
Optical
• Beam Angle: 25 degree optics
Thermal
• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
Control
• Protocol: USITT DMX-512
• DMX Channels: 3 / 6 / 8 / 10 / 11 (User Selectable)
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
• Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset
Weight & Dimensions
• Length: 23.7in (600mm) fixture, 16.2in (41cm) base
• Height: 5in (126mm) fixture, 8.2in (20.7mm) w/base
• Depth: 2.26in (7mm) fixture, 4.9in (12.4cm) base
• Weight: 10.4 lbs (4.7kg)
10,410 LUX @ 1m
3,725 LUX @ 2m
