Blizzard Lighting InfiniPix Arcade

LED Beam and Pixel Effect Bar

Blizzard Lighting InfiniPix Arcade is a versatile LED effect fixture that merges powerful narrow-beam output with vibrant RGBW pixel effects in a single professional lighting solution. Designed for concert productions, stage lighting, clubs, touring applications, and event installations, it delivers striking visual effects through a combination of intense white beams and high-resolution LED pixel mapping.

Blizzard Lighting InfiniPix Arcade Competitive Differences

• Combines 8 high-output 20W white beam LEDs with a 256-pixel RGBW LED matrix
• Electronically controlled clear/frost smart lens system for dynamic beam transformations

Blizzard Lighting InfiniPix Arcade Description

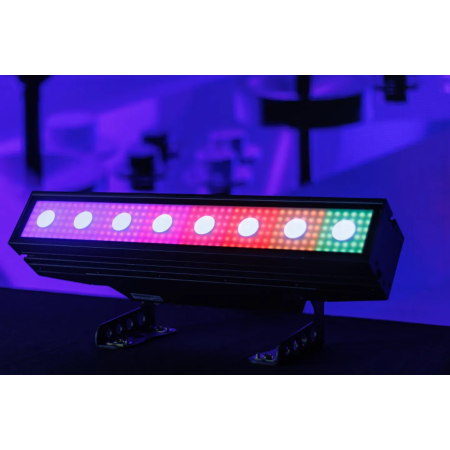

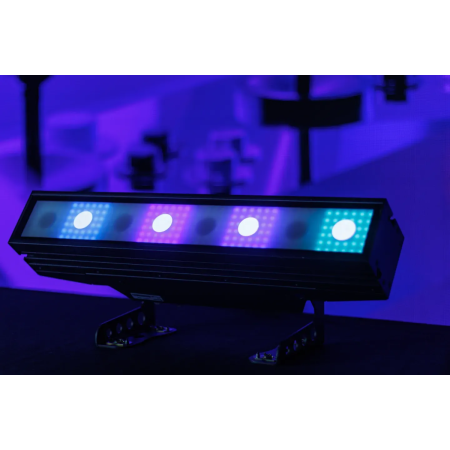

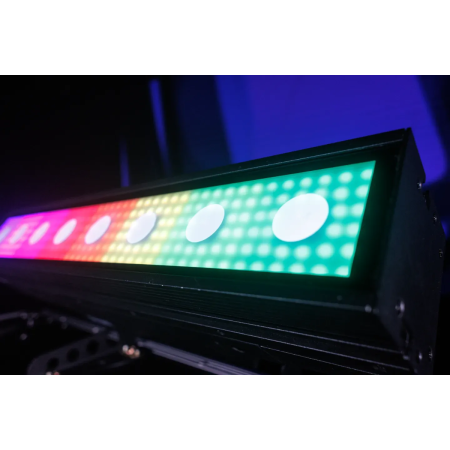

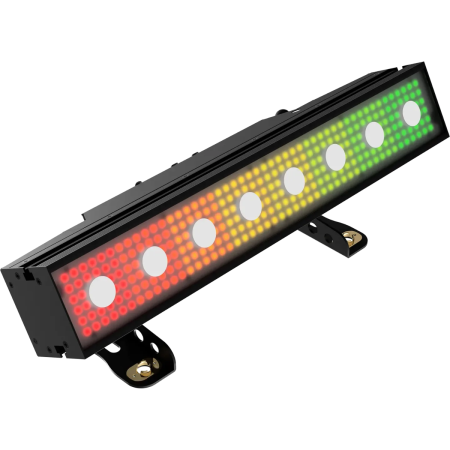

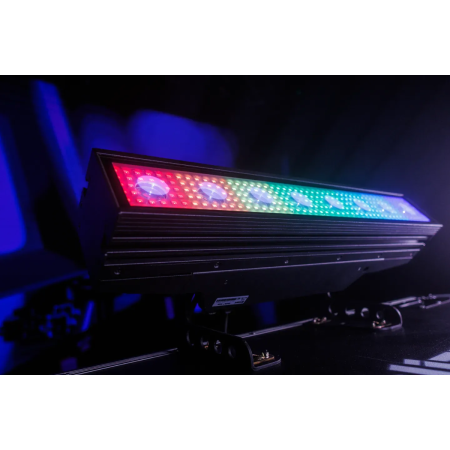

The Blizzard Lighting InfiniPix Arcade is engineered to create eye-catching visual effects that blend concentrated beam output with colorful pixel-mapped backgrounds. Its eight powerful 20W white LEDs generate sharp 3-degree beams capable of producing dramatic aerial effects, while the integrated RGBW LED matrix delivers vibrant colors, animations, and dynamic visual textures.

A unique electronically controlled smart lens system allows the fixture to switch between clear and frosted optics, expanding creative possibilities by transforming the appearance of the beam effects and LED background. This flexibility makes the fixture equally effective for concerts, theatrical productions, live events, and nightclub installations.

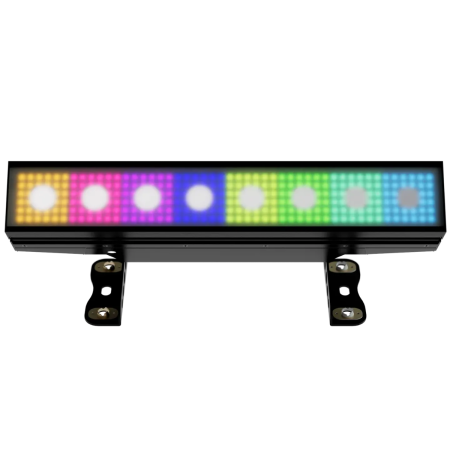

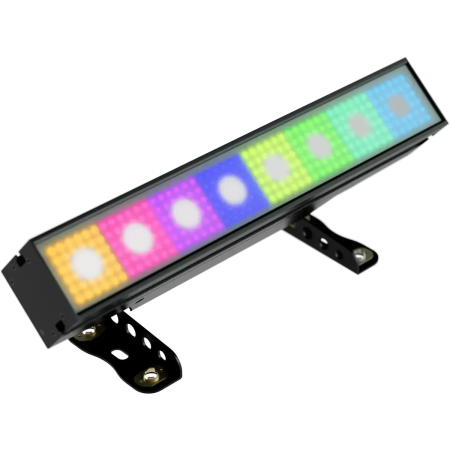

The integrated RGBW matrix consists of 256 SMD LEDs arranged in a 32 x 8 pixel layout, enabling detailed animations, chases, color effects, and pixel mapping applications. Built-in programs and manual color mixing provide quick setup options, while DMX control offers advanced programming capabilities for professional productions.

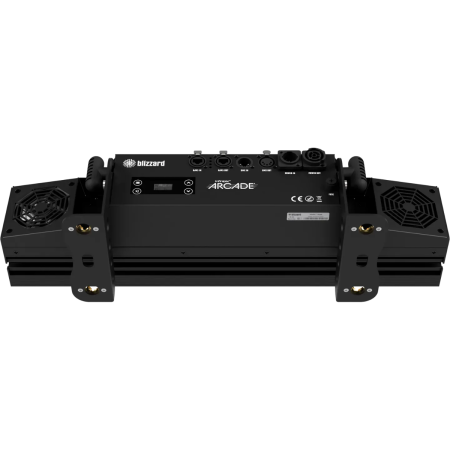

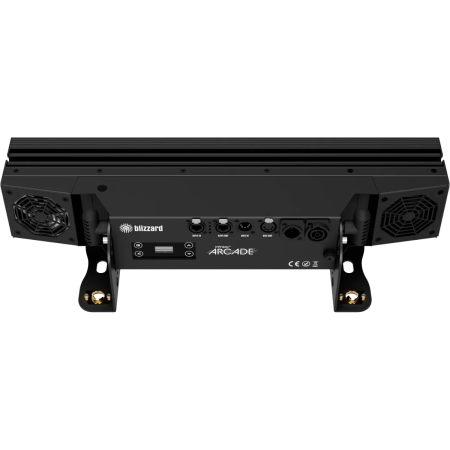

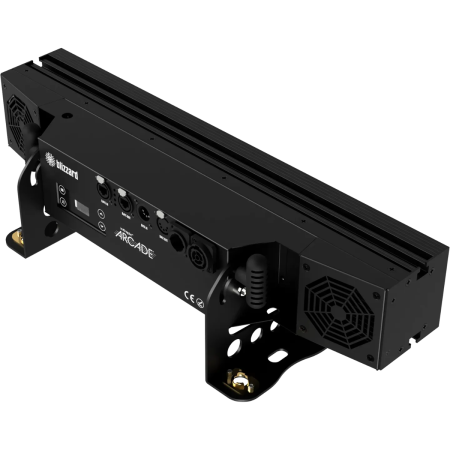

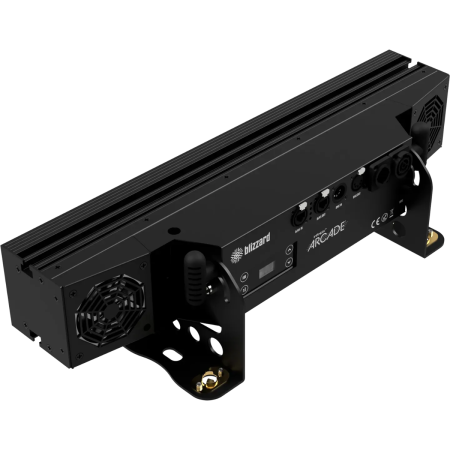

The rugged aluminum housing incorporates an interlocking design, allowing multiple fixtures to connect seamlessly for larger visual displays. Professional-grade powerCON TRUE1-compatible power connections and 5-pin DMX connectivity ensure reliable operation in demanding production environments.

InfiniPix Arcade Features

• 8 x 20W white LEDs with narrow beam output
• 256 RGBW SMD LEDs arranged in a 32 x 8 matrix
• Electronically controlled clear/frost smart lens system
• 3° beam angle for concentrated aerial effects
• RGBW background and pixel mapping effects
• Smooth 0-100% electronic dimming
• Built-in automated programs
• Manual color mixing capability
• Heavy-duty aluminum enclosure
• Interlocking fixture design for multi-unit configurations
• 5-pin DMX input and output connections
• powerCON TRUE1-compatible power input and output
• Dual mounting brackets included
• Omega clamp mounting bracket included

InfiniPix Arcade Specifications

• White LEDs: 8 x 20W
• Beam Angle: 3°
• RGBW LEDs: 256 x SMD 5050 LEDs
• LED Matrix Layout: 32 x 8 Sections
• LED Power: 0.5W per RGBW LED
• Dimming: 0-100% Smooth Electronic Dimming
• Lens System: Electronically Controlled Clear/Frost Smart Lens
• DMX Connections: 5-pin XLR In/Out
• Power Connections: powerCON TRUE1 Compatible In/Out
• Housing Material: Heavy-Duty Aluminum
• Length: 21.7 in
• Width: 6.9 in
• Height: 5.6 in
• Weight: 13.3 lb
• Shipping Weight: 18.85 lb

What's In The Box

• Blizzard Lighting InfiniPix Arcade
• Dual Mounting Brackets
• Omega Clamp Bracket
• User Documentation
