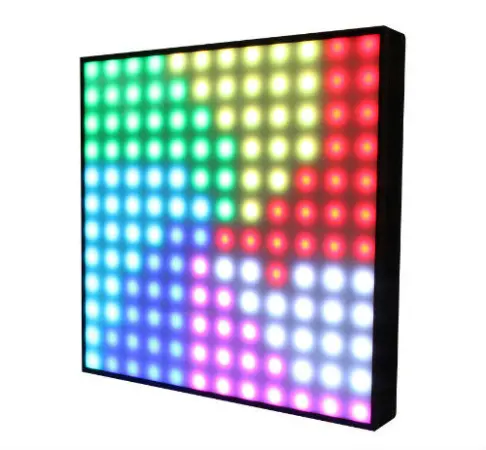

Blizzard Lighting Pixellicious 2
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
Pixel Mapping color 12" x 12" panel with eye-candy features!
Introducing Pixellicious 2â„¢ the insanely cool pixel mapping, 12" x 12" Square fixture that sets up in minutes with minimal technical know-how. Each panel houses 144 tricolored SMD 5050 RGB LEDs, and has a pixel pitch of 25 millimeters and 120-degree viewing angle.
Pixel mapping displays are achieved in minutes using multiple control options: DMX-512, industry standard Art-Net, Arkaos Kling-net, linkable in Master/Slave Mode up to 8 panels or it can simply be controlled via its easy-to-use 4-button LED control panel.
It also comes with equipped with PowerCONâ„¢ compatible AC in/out and DMX in/out jacks.
And as course, the Pixellicious 2™ fixtures are backed by Blizzard’s 2-year warranty
Main Features:
Full color mixing in standalone, master/slave and DMX modes
Built-in automated programs via master/slave
Built-in sound activated programs via master/slave
Easy to use LED digital control panel
Individually controllable 3-in-1 LED pixels via 480ch DMX/Art-Net
Art-Net, Kling-Net, Ethercon RJ45 In/Out jacks built into back of fixture
3-pin & 5-pin male input and 3-pin & 5-pin female output
Flexible mounting bracket allows fixtures to be connected horizontally or vertically
PowerConâ„¢ compatible AC power In/Out connectors
Power:
Operating Voltage: 120-230VAC, 50-60 Hertz
Power Consumption: 51W, .36A
Light Source:
LED: 144 SMD 5050 3-in-1 RGB LEDs
Optical:
BeamAngle: 120°
Thermal:
Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
Control:
Protocol: USITT DMX-512
DMX Channels: 8/35/480 (User Selectable)
Input: 3-pin & 5-Pin XLR Male
Output: 3-pin & 5-pin XLR Female
Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset, Art-Net/Kling-Net
Weight & Dimensions:
Size: 12" x 12" x 4"
Weight: 7.6 lb (3.5 kg)
DISCLAIMER:
The power connector fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity.  Neutrik® and powerCON® are registered trademarks of Neutrik AG
