Dual-Face Beam, Wash, and Pixel Moving Head
Blizzard Lighting Switchblade Flip is a feature-rich, dual-face moving head that combines powerful RGBW zoom beams with pixel-mapped LED surfaces. Designed for advanced visual effects in live productions, clubs, and stage shows, it offers full versatility in a single compact fixture.
Blizzard Lighting Switchblade Flip Competitive Differences
- Dual-face design with motorized zoom, pixel mapping, and infinite pan/tilt
- 4-in-1 beam/wash effects combined with 204 individually controlled SMD LEDs
Blizzard Lighting Switchblade Flip Description
The
Blizzard Lighting Switchblade Flip is a creative lighting powerhouse that merges hybrid functionality with next-level control. On one side, it houses 4x 60W RGBW 4-in-1 LEDs capable of tight 2.5° beams or wide 28° washes using a smooth motorized zoom. On the reverse, it features high-impact pixel surfaces—108x RGB 5050 SMD LEDs and 96x 3W cool white SMDs (10,000K CCT).
Pixel-mappable zones on both faces open endless visual possibilities, from color fades and chases to white strobe bursts and video-style effects. The unit features 540° infinite pan and 270° tilt, each with 8–16-bit precision for smooth movement. Strobe effects range from 0–30Hz with full speed and background control.
Three DMX control modes (20, 34, and 93 channels) support everything from simplified setups to full pixel-mapped performance. Users can operate in DMX512, Auto, Sound Active, or Master/Slave modes. Connectivity is handled via PowerCON® TRUE1-compatible power input and 5-pin DMX in/out, while the 5-button LCD display makes on-site configuration quick and intuitive.
Ideal for clubs, concerts, and immersive lighting installations, the Switchblade Flip delivers dual visual impact and top-tier control in a rugged, compact housing.
Model Features
- Dual-face beam/wash and pixel-mapped LED panel

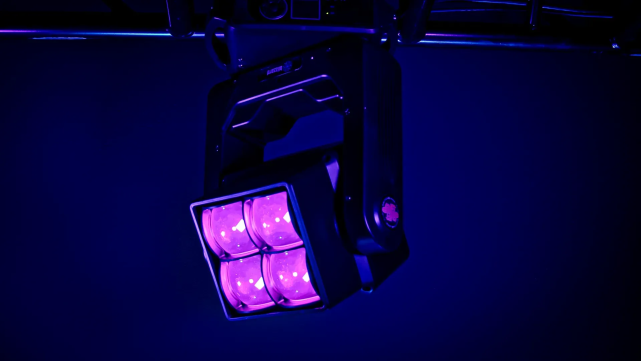

- 4x 60W RGBW LEDs with 2.5°–28° motorized zoom

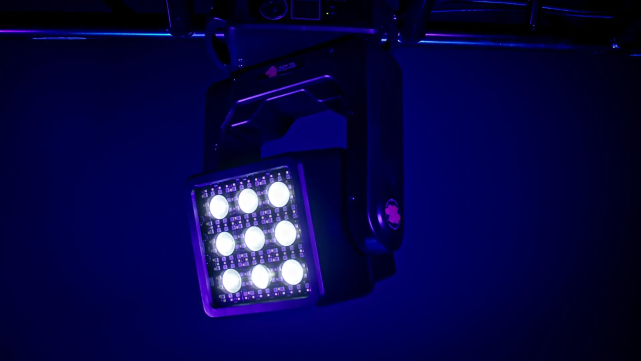

- 9x 10W cool white beam LEDs (10,000K, 3.5°)

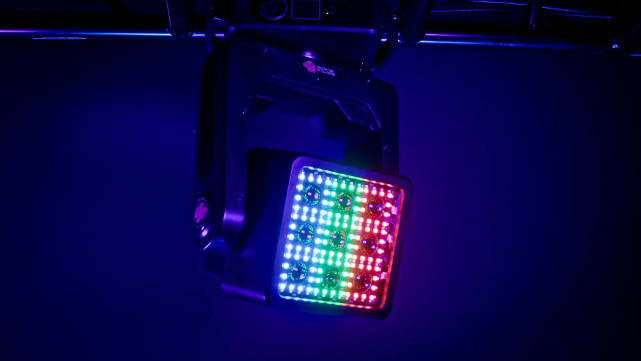

- 108x RGB SMD + 96x cool white SMD LEDs
- Infinite pan (540°) and tilt (270°) with 8–16 bit resolution
- 0–30Hz strobe with speed and background control
- 20 / 34 / 93 DMX channel modes
- DMX, Auto, Sound Active, Master/Slave modes
- PowerCON® TRUE1-compatible power input
- 5-pin DMX in/out and 5-button LCD menu
Model Specifications
- Length: 11.4 in.
- Width: 7.8 in.
- Height: 19.4 in.
- Weight: 22.8 lbs. (10.3 kg)
What's In The Box
- Switchblade Flip fixture
- Mounting hardware
- User guide
Blizzard Lighting Switchblade Flip
(Blizzard Lighting 124661)
