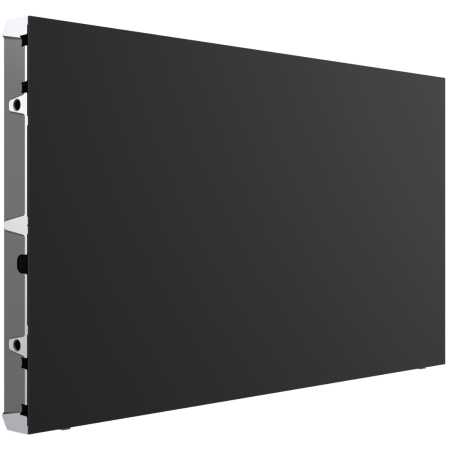

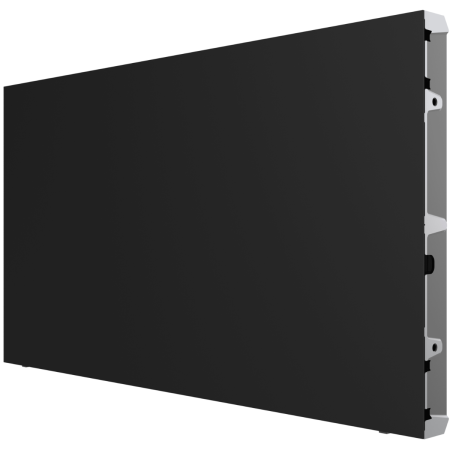

JMAZ BB2023 Onubis 1.5

Indoor COB LED Video Wall Panel

The JMAZ BB2023 Onubis 1.5 is an ultra-fine-pitch indoor LED video wall panel designed for premium fixed installations where image detail, color accuracy, and a slim profile are essential. Its COB LED technology, 1.5mm pixel pitch, and 22-bit grayscale deliver detailed images and smooth tonal transitions for close-viewing applications.

JMAZ BB2023 Onubis 1.5 Competitive Differences

• Fine 1.5mm pixel pitch supports detailed images at close viewing distances
• COB LED technology provides a compact, durable display surface with consistent image performance
• 22-bit grayscale supports smooth gradients and refined shadow and highlight detail
• Native 384 x 216 resolution delivers 82,944 pixels per panel
• Slim 1.5-inch cabinet depth supports low-profile permanent installations
• Lightweight 8.8 lb panel simplifies handling and wall-mounted installation

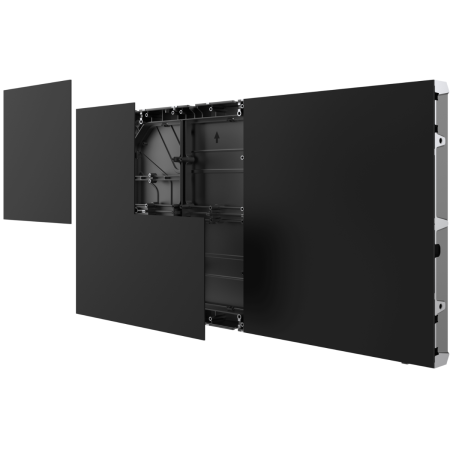

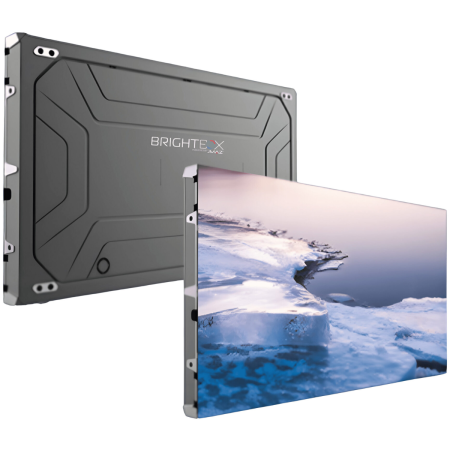

• Front serviceability allows maintenance when rear access is limited
• Direct wall-mount capability reduces the need for deep support structures
• IP54-rated front provides added protection for the LED display surface
• Refresh rate of at least 3840Hz supports smooth video playback and camera-friendly performance

JMAZ BB2023 Onubis 1.5 Description

The JMAZ BB2023 Onubis 1.5 combines a fine 1.5mm pixel pitch with a native resolution of 384 x 216 pixels. This high-resolution configuration is designed for applications where viewers are positioned close to the screen, including corporate presentation spaces, broadcast studios, control rooms, command centers, showrooms, and premium digital signage installations.

COB, or Chip-on-Board, LED technology creates a tightly integrated display surface that supports detailed image reproduction and dependable performance. The panel’s 22-bit grayscale capability provides smooth transitions between shades, helping video, graphics, and presentation content retain subtle color and brightness detail.

With 600-nit brightness and a refresh rate of at least 3840Hz, the panel delivers clear indoor visuals with smooth motion reproduction. Its camera-friendly refresh performance also makes it suitable for studios, presentation stages, and other environments where the display may appear in recorded or live video.

The slim 600 x 337.5mm cabinet measures only 39.9mm deep and weighs 8.8 lb. Front serviceability and direct wall-mount capability make the panel well suited for space-conscious permanent installations where rear maintenance access is unavailable. An IP54-rated front adds protection to the display surface, while ETL, FCC, RoHS, and CE certifications support professional installation requirements.

BB2023 Features

• 1.5mm ultra-fine pixel pitch
• COB LED display technology
• 600 x 337.5mm indoor LED cabinet
• 384 x 216 native pixel resolution
• 600-nit brightness
• 22-bit grayscale
• Refresh rate of ≥3840Hz
• IP54-rated front surface
• Front serviceability
• Direct wall-mount capability
• Slim 39.9mm cabinet depth
• Lightweight 8.8 lb construction
• ETL, FCC, RoHS, and CE certifications

BB2023 Specifications

• Pixel Pitch: 1.5mm
• LED Type: COB
• Panel Dimensions: 23.6 x 13.2 x 1.5 in (600 x 337.5 x 39.9 mm)
• Panel Weight: 8.8 lb (4 kg)
• Pixel Resolution: 384 x 216
• Brightness: 600 nits
• Grayscale: 22-bit
• Refresh Rate: ≥3840Hz
• IP Rating: IP54 front
• Serviceability: Front
• Mounting: Direct wall mountable
• Certifications: ETL, FCC, RoHS, and CE
• UPC: 618528599571

BrightBox BB2023 (BrightBox Onubis 1.5 Indoor COB Video Wall)
