Loading Capacity: 2.6 million pixels
1). Inputs: 21x 3G-SDI, 2x HDMI 1.3, 1x DVI, 1x OPT1
2). Outputs: 4x Ethernet Ports, 1x HDMI1.3, 1x HDMI1.3 LOOP,
1x DVI LOOP, 1x 3G-SDI LOOP, 2x OPT
3). Communication Mode: USB/LAN
4). Image Mosaic, Crop Settings, PIP
5). Power: Emerson power supply
6). Certification: CE, ROHS, FCC, UL, EAC

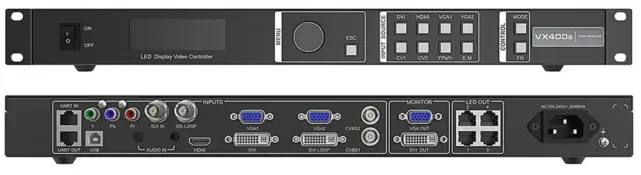

The VX400 Video Processor is Novastar’s new all-in-one controller that integrates video processing and video controlling in one device. It has 4 Ethernet ports and supports different working modes (video controller, fiber converter, bypass mode). A single unit can manage up to 2.6 million pixels.
Hardware Features:
Inputs:
2x HDMI 1.3 : 1920×1080@60Hz, compatible with HDCP 1.4, supports interlaced signals, supports custom EDID’s:
Max. Width: 3840 (3840×648@60Hz)
Max. Height: 2784 (800×2784@60Hz)
1x DVI: 1920×1200@60Hz, compatible with HDCP 1.4, supports interlaced signals, supports custom EDID’s:
Max. Width: 3840 (3840×648@60Hz)
Max. Height: 2784 (800×2784@60Hz)
1x 3G-SDI (max. 1920×1080@60Hz), supports ST-424(3G), ST-292(HD) & ST-259(SD), supports de-interlacing
Outputs:
4x LED-Out (RJ45)
1x HDMI 1.3 Out
1x HDMI 1.3 (Loop)
1x DVI (Loop)
2x OPT-Out (10G)
further features:
Connection for light sensor
PIP function
Memory for 10 presets
Cascading via USB possible (up to 4 devices)
Display configuration without computer possible
Control via USB or LAN
V-Can Support
General Specifications:
Supply voltage: AC 100-240V, 50/60HZ
Dimensions: 482.6 x 301.5 x 43.6mm (WxDxH)
Power consumption: 28 watts
Weight: 4kg (8.8lbs)
Dimensions 49 × 30 × 5 cm
| Brand | NovaStar |
| Name | NovaStar VX400 | 2.6M Pixel Video Processor |
| Primary Category | Video Processor |
| CE Certified | Yes |
| FCC Certified | Yes |
| RoHS Compliant | Yes |
| UL Listed | Yes |
| Warranty Length | Not specified years |
| Dimensions | 482.6 x 301.5 x 43.6mm mm |
| Weight | 4kg kg |
| Power Consumption | 28 watts watts |
