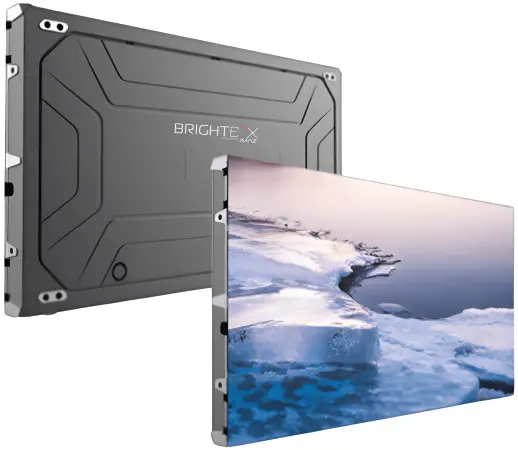

Ultra-Fine Pitch COB LED Video Wall for Indoor Installations
The
BrightBox Onubis 1.8 COB is a cutting-edge fixed LED video wall panel designed to deliver superior image clarity and reliability. Featuring advanced Chip-on-Board (COB) LED technology, a fine 1.8mm pixel pitch, and a high refresh rate, this panel provides immersive, seamless visuals with enhanced durability. Ideal for corporate settings, broadcast studios, control rooms, and digital signage, the Onubis 1.8 is engineered for exceptional performance in indoor environments.
BrightBox Onubis 1.8 COB Competitive Differences
- 1.8mm pixel pitch for high-resolution, crisp visuals
- Chip-on-Board (COB) LED technology for better brightness and color uniformity
- 600-nit brightness for clear and vibrant indoor displays
- ≥3,840Hz refresh rate for smooth and flicker-free video playback
- 22-bit grayscale for accurate color reproduction and superior contrast
- Front-serviceable design for easy maintenance and quick access
- IP65 (front) and IP54 (rear) rating for dustproof, fingerprint-proof, and moisture-resistant protection
- High pixel resolution of 640 x 360 for exceptional detail
- Novastar control system for precise content management and synchronization
- Ultra-lightweight at only 8.8 lbs per panel for easy installation
- Certified for safety and compliance: ETL, CE, RoHS, EMC Class-A
- 3-year warranty for long-term reliability and peace of mind
BrightBox Onubis 1.8 COB Description
The
BrightBox Onubis 1.8 COB is a state-of-the-art indoor video wall panel designed to provide an immersive and visually stunning display solution. With a pixel pitch of 1.8mm and a high pixel density of 284,444 Dots/m², this COB LED panel ensures sharp, detailed, and high-quality imagery, making it perfect for environments where precision and clarity are essential.
Measuring 600 x 337.5 x 39.5mm and weighing just 8.8 lbs, the Onubis 1.8 is designed for effortless installation and flexibility in setup configurations. Its COB LED technology significantly enhances brightness uniformity while reducing pixel visibility, creating a smooth and seamless viewing experience. Additionally, the front serviceability feature allows for easy maintenance, minimizing downtime and ensuring consistent performance.
With a brightness of 600 nits and a refresh rate of ≥3,840Hz, this LED video wall panel provides flicker-free visuals with superior motion clarity. The high 22-bit grayscale ensures rich color gradients and deep contrast, making content appear more vibrant and lifelike. Built with durability in mind, the Onubis 1.8 is rated IP65 on the front and IP54 on the rear, offering dustproof, fingerprint-proof, moisture-resistant, and anti-collision protection for longevity in demanding environments.
Whether used for control rooms, digital signage, corporate presentations, or broadcast studios, the BrightBox Onubis 1.8 COB LED Video Wall is the perfect choice for delivering superior image quality and seamless video playback in any indoor setting.
Onubis 1.8 COB Features
- Ultra-fine 1.8mm pixel pitch for high-resolution displays
- Chip-on-Board (COB) LED technology for enhanced brightness and uniformity
- Panel dimensions: 600 x 337.5 x 39.5mm (23.6" x 13.3" x 1.6")
- Lightweight design: 8.8 lbs (4 kg) per panel
- Pixel resolution: 640 x 360 for detailed image clarity
- 600-nit brightness for clear indoor visuals
- ≥3,840Hz refresh rate for flicker-free video performance
- 22-bit grayscale for superior contrast and color accuracy
- High pixel density: 284,444 Dots/m²
- Front-serviceable design for easy maintenance and repairs
- IP65 (front) and IP54 (rear) ratings for dust, moisture, and fingerprint resistance
- Novastar control system for seamless content management
- Rated lifespan: 100,000 hours
- ETL, CE, RoHS, and EMC Class-A certified for safety and compliance
- 3-year warranty for reliable performance
Onubis 1.8 COB Specifications
- Pixel Pitch: 1.8mm
- LED Type: COB Flip
- Panel Dimensions: 600 x 337.5 x 39.5mm (23.6" x 13.3" x 1.6")
- Weight: 8.8 lbs (4 kg) per panel
- Pixel Resolution: 640 x 360
- Module Quantity: 8
- Brightness: 600 nits
- Refresh Rate: ≥3,840Hz
- Grayscale: 22-bit
- Scan Mode: 1/40
- Pixel Density: 284,444 Dots/m²
- Maximum Power Usage: 21W per panel
- Input Power: 66W
- Lifespan: 100,000 hours
- Serviceability: Front
- Control System: Novastar
- IP Rating: IP65 (front), IP54 (rear)
- Certifications: ETL, CE, RoHS, EMC Class-A
- Special Features: Dustproof, fingerprint-proof, anti-collision, and moisture-proof
- Warranty: 3 years
What's In The Box
- (1) BrightBox Onubis 1.8 COB Fixed LED Video Wall Panel
- Power cables
- Data cables
- Required mounting hardware
- User manual
JMAZ BB2018
(JMAZ Onubis 1.8COB)
