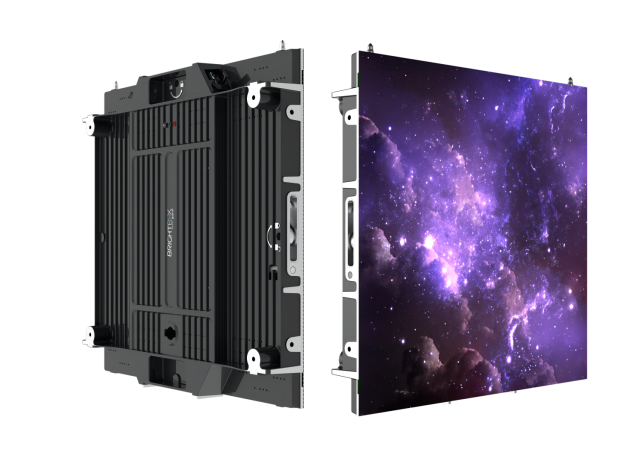

JMAZ BB1001 Osiris 1.9 Fixed

Fixed Indoor GOB LED Video Wall Panel

The JMAZ BB1001 Osiris 1.9 Fixed is a fine-pitch indoor LED video wall panel designed for permanent installations requiring detailed images, added display-surface protection, and convenient front maintenance. Its 1.9mm pixel pitch, GOB construction, and flexible mounting options make it suitable for retail displays, corporate environments, venues, digital signage, and presentation spaces.

JMAZ BB1001 Osiris 1.9 Fixed Competitive Differences

• Fine 1.9mm pixel pitch supports detailed images at close indoor viewing distances
• Native 256 x 256 resolution provides 65,536 pixels per panel
• GOB construction adds a protective adhesive layer over the LED surface for improved durability
• 800-nit brightness delivers clear, vivid visuals in indoor environments
• Refresh rate of at least 3840Hz supports smooth playback and camera-facing applications
• Front serviceability allows maintenance without requiring rear cabinet access
• Direct wall-mount compatibility supports streamlined permanent installations
• Hang-mount compatibility provides additional installation flexibility
• Slim 63mm cabinet depth helps maintain a low-profile display
• Lightweight 15.2 lb construction simplifies handling and panel installation

JMAZ BB1001 Osiris 1.9 Fixed Description

The JMAZ BB1001 Osiris 1.9 Fixed combines a fine 1.9mm pixel pitch with a native resolution of 256 x 256 pixels. This high-density configuration delivers detailed text, graphics, presentations, and video for indoor displays where viewers may be positioned close to the screen.

GOB, or Glue-on-Board, construction places a protective layer over the LED display surface to improve resistance to impact and handling. The panel uses 1010/1515 LED technology and produces up to 800 nits of brightness for vivid content in controlled indoor environments.

A refresh rate of at least 3840Hz supports smooth motion reproduction and helps reduce visible flicker during livestreams, recorded presentations, and other camera-facing applications. The IP30-rated front and IP20-rated rear are intended for protected indoor installations.

The 500 x 500mm cabinet measures only 63mm deep and weighs 15.2 lb. Front serviceability provides convenient component access without requiring maintenance clearance behind the display, while direct wall and hanging compatibility support multiple permanent installation methods.

BB1001 Features

• 1.9mm fine pixel pitch
• GOB display-surface construction
• 500 x 500mm fixed indoor LED cabinet
• 256 x 256 native pixel resolution
• 800-nit brightness
• 1010/1515 LED technology
• Refresh rate of ≥3840Hz
• IP30-rated front
• IP20-rated rear
• Front serviceability
• Direct wall-mount compatibility
• Hang-mount compatibility
• Slim 63mm cabinet depth
• Lightweight 15.2 lb construction
• ETL, FCC, RoHS, and CE certifications
• Road case not included

BB1001 Specifications

• Pixel Pitch: 1.9mm
• Display Construction: GOB (Glue-on-Board)
• LED Type: 1010/1515
• Panel Dimensions: 19.6 x 19.6 x 2.4 in (500 x 500 x 63 mm)
• Panel Weight: 15.2 lb (6.9 kg)
• Pixel Resolution: 256 x 256
• Total Pixels Per Panel: 65,536
• Brightness: 800 nits
• Refresh Rate: ≥3840Hz
• IP Rating: IP30 front / IP20 rear
• Serviceability: Front
• Mounting: Direct wall mountable or hang mountable
• Certifications: ETL, FCC, RoHS, and CE
• UPC: 618528598529

Jmaz BB1001 (BrightBox Osiris 1.9 Fixed)
