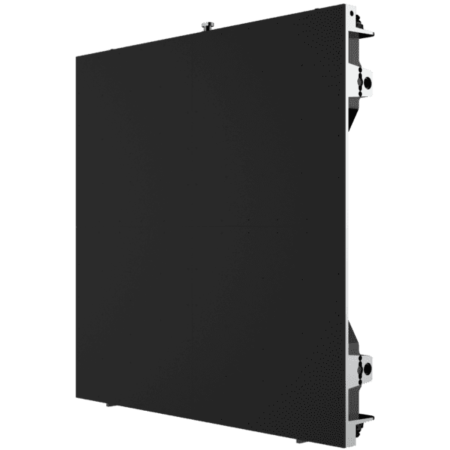

The JMAZ Osiris 1.9 GOB by BrightBox (BB1038) is a 500 x 500mm indoor LED video wall panel designed for both permanent installations and mobile production applications. Featuring a fine 1.9mm pixel pitch, GOB display technology, 800-nit brightness, and a refresh rate of at least 7680Hz, this hybrid LED panel delivers detailed graphics and video with flexible hanging, stacking, and direct wall-mounting options for concerts, corporate events, digital signage, and professional indoor displays.
The JMAZ Osiris 1.9 GOB by BrightBox (BB1038) combines a fine 1.9mm pixel pitch with a native resolution of 256 x 256 pixels, providing 65,536 pixels in each 500 x 500mm cabinet. Its SMD1515 black LED configuration and GOB display construction deliver detailed graphics, presentations, text, and video for modular indoor LED display systems. With a pixel density of 262,144 dots per square meter and 16-bit grayscale, the panel supports detailed image reproduction and smooth tonal transitions.
With 800-nit brightness, the Osiris 1.9 GOB provides clear visual output for stage productions, corporate environments, entertainment venues, and professional presentation spaces. A refresh rate of at least 7680Hz supports smooth motion reproduction and helps minimize visible flicker during livestreams, recorded presentations, broadcast productions, and other camera-facing applications.
Designed for installation flexibility, the BB1038 supports fixed and mobile video wall applications. Compatible installation methods include hanging, stacking, and direct wall mounting, allowing production teams and integrators to adapt display configurations to different venues and project requirements. Integrated corner protection helps safeguard the cabinet during repeated handling, while the compact 500 x 500mm format simplifies modular display assembly.

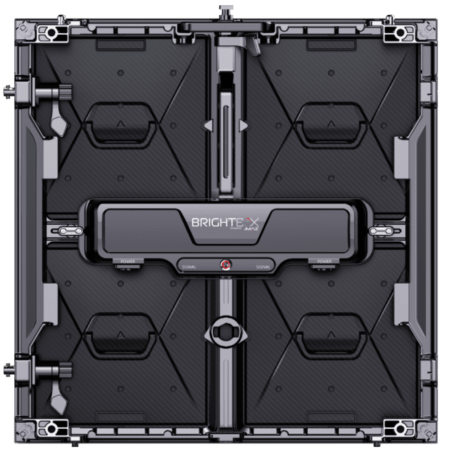

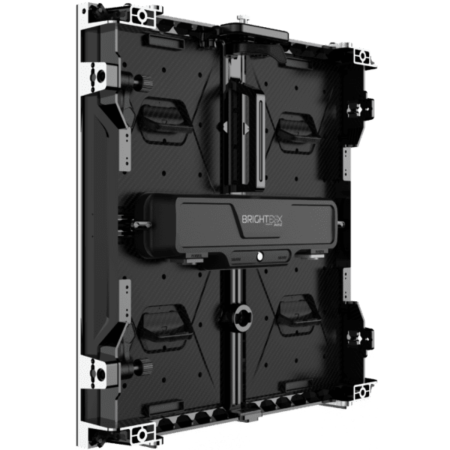

For maintenance, the panel features front and rear service access along with a swappable all-in-one power box to help streamline component replacement. The 19.69 x 19.69 x 2.52-inch (500 x 500 x 64 mm) cabinet weighs just 11 lb (5 kg) and incorporates a 2 x 2 module configuration with a NovaStar A8s-N control system. With IP30 front protection, IP20 rear protection, and FCC, RoHS, and CE certifications, the BB1038 is designed for professional indoor LED video wall installations.
| Brand | BrightBox |
| Name | JMAZ Osiris 1.9 GOB by BrightBox (BB1038) |
| Primary Category | Indoor GOB LED Video Wall Panel |
| Build Material | GOB |
| Depth | 2.52 in (64 mm) mm |
| Dimensions | 19.69 x 19.69 x 2.52 in (500 x 500 x 64 mm) |
| Height | 19.69 in (500 mm) mm |
| Included Accessories | Swappable All-in-One Power Box |
| Mounting Options | Hanging, Stacking, Direct Wall Mounting |
| Weight | 11 lb (5 kg) kg |
| Width | 19.69 in (500 mm) mm |
| Control Interfaces | NovaStar A8s-N |
| IP Rating | IP30 Front / IP20 Rear |
| LED Type | SMD1515 Black |
| Lumen Output | 800 nits nits |
| Power Consumption | 150W W |
| Pixel Pitch | 1.9mm mm |
| Warranty Length | 100,000 Hours hours |
