JMAZ BB3001

LED Video Wall Rigging Bar

The JMAZ BB3001 is a die-cast aluminum rigging bar designed for suspending or ground stacking compatible Osiris indoor and outdoor LED video wall panels. Its 771 lb load capacity and built-in level adjustment indicator support secure, accurately aligned video wall installations.

JMAZ BB3001 Competitive Differences

• Supports vertically hanging up to twenty 500 x 500mm Osiris panels
• Supports vertically hanging up to ten 500 x 1000mm Osiris panels
• Allows ground stacking of up to eight compatible panels
• Rated hanging and stacking capacity of 771 lb (350 kg)
• Die-cast aluminum construction provides strength while maintaining a manageable weight
• Built-in level adjustment indicator helps align video wall configurations
• Compatible with multiple Osiris indoor and outdoor panel models

JMAZ BB3001 Description

The JMAZ BB3001 provides a dedicated mounting solution for compatible JMAZ Osiris LED video wall panels. It can be used as a suspension bar for flown video walls or as a base component for ground-stacked display configurations.

For suspended installations, the rigging bar can vertically support up to twenty 500 x 500mm panels or ten 500 x 1000mm panels, subject to its maximum hanging capacity of 771 lb (350 kg). For ground-supported systems, it can vertically stack up to eight compatible panels within the same 771 lb rated capacity.

The die-cast aluminum body delivers durable support for mobile productions, rental systems, live events, and permanent installations. A built-in level adjustment indicator assists installers with positioning and alignment during setup.

BB3001 Features

• Single-panel-width Osiris rigging bar
• Die-cast aluminum construction
• Supports flown and ground-stacked installations
• Hangs up to twenty 500 x 500mm Osiris panels vertically
• Hangs up to ten 500 x 1000mm Osiris panels vertically
• Ground stacks up to eight compatible panels vertically
• 771 lb (350 kg) hanging weight capacity
• 771 lb (350 kg) stacking weight capacity
• Built-in level adjustment indicator
• Compatible with indoor and outdoor Osiris LED panels

BB3001 Specifications

• Construction: Die-cast aluminum
• Maximum Hanging Capacity: 771 lb (350 kg)
• Maximum Stacking Capacity: 771 lb (350 kg)
• Maximum 500 x 500mm Panels When Hanging: 20
• Maximum 500 x 1000mm Panels When Hanging: 10
• Maximum Panels When Ground Stacking: 8
• Dimensions: 19.5 x 3.5 x 5.9 in (497.1 x 88.7 x 151.4 mm)
• Weight: 11.7 lb (5.3 kg)
• Compatible Models: BB1026, BB1031, BB1032, BB1035, BB1036, and BB1037
• UPC: 618528598642

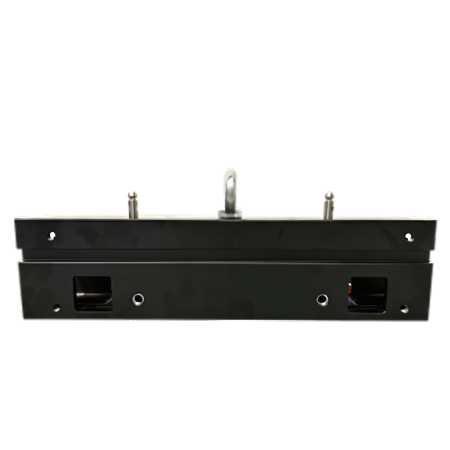

Jmaz BB3001 Fly Bar (BrightBox Osiris-Ground Stack Bar)
