ChamSys MagicQ Compact Connect | 10 Playbacks, 2 D...
$3,500.00
The ChamSys MagicQ Compact Connect is a portable USB lighting control surface designed to provide hands-on control of DMX lighting, LED fixtures, and media systems through MagicQ software. Featuring 10 playback faders, eight rotary attribute encoders, two direct DMX512 outputs with RDM support, and up to 64 universes of ArtNet and sACN output, this compact controller delivers extensive lighting programming and playback capabilities. Compatible with Windows, macOS, and Linux, it provides a practical solution for touring lighting designers, theaters, clubs, schools, studios, and entertainment venues.

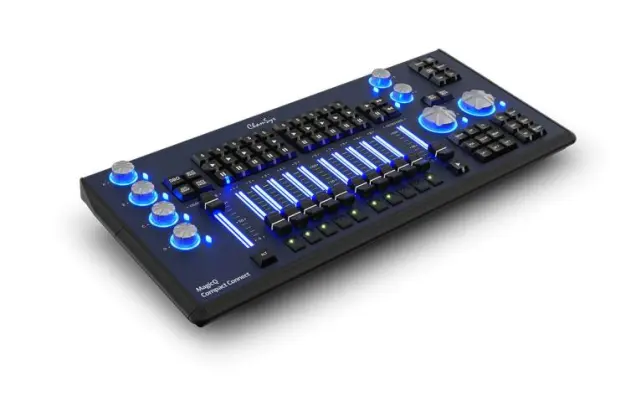

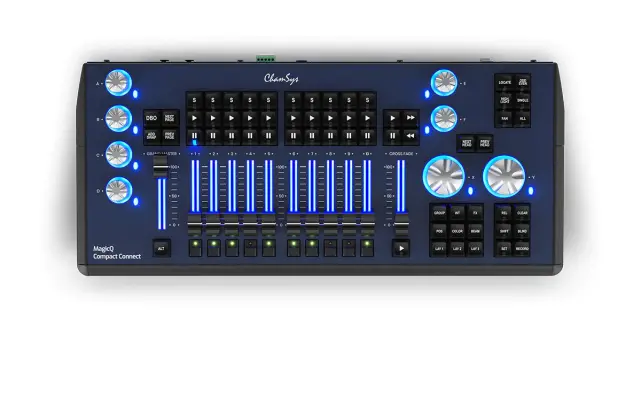

The ChamSys MagicQ Compact Connect brings the extensive programming capabilities of MagicQ software into a compact, physical control surface designed for lighting professionals. Connecting to a compatible computer through USB, the controller provides direct access to fixture attributes, playback functions, and overall show control. Its 10 illuminated playback faders feature dedicated Flash, Go, and Select buttons, while eight rotary encoders allow precise adjustment of lighting parameters. Dedicated Grand Master and Crossfader controls make it easy to manage overall intensity and playback transitions during live performances.

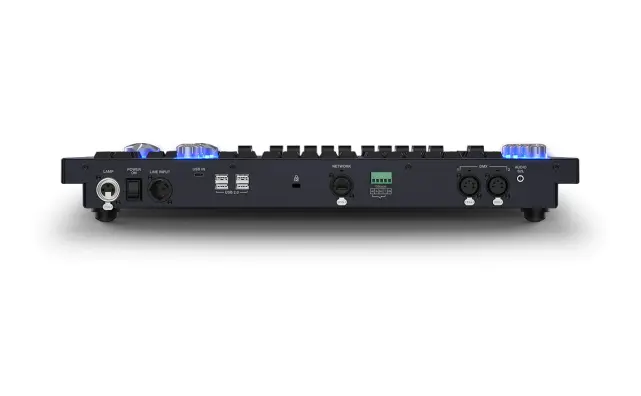

Designed for both conventional DMX lighting and larger networked systems, the Compact Connect features two direct DMX512 outputs with RDM support and an integrated Ethernet connection capable of transmitting up to 64 universes through ArtNet and sACN. This allows lighting designers to control up to 32,768 DMX channels without additional output licenses or dongles. The hardware also includes a built-in USB hub with four USB-A ports, an audio input, a 10Scene/Remote input, a Kensington security lock fixing, and a working light connection for added convenience in production environments.
MagicQ software provides a comprehensive platform for programming and operating lighting, LED fixtures, and media systems. Features include integrated lighting visualization, pixel mapping, HD media playback, and extensive show management tools. The system supports up to 32,768 fixtures, 5,000 cues, 2,000 cue stacks, 5,000 groups, and 4,096 palettes, along with control of up to 50 media server layers containing different content. These capabilities allow lighting designers to develop detailed shows with coordinated fixture movements, color effects, playback sequences, and media integration.
Built for portability and flexible installation, the Compact Connect measures just 20.55 inches wide, 9.06 inches deep, and 2.56 inches high, with a weight of approximately 8.05 lb. Its compact design makes it suitable for traveling lighting designers who need tactile control alongside a laptop, as well as fixed installations in theaters, clubs, schools, houses of worship, and production studios. A Neutrik powerCON TRUE1 power connection supports 110–240V AC operation, while the included dual-color desk light, dust cover, USB cable, and power cable provide essential accessories for setup and operation. The Compact Connect requires a compatible computer running MagicQ software and is not a standalone lighting console.
| Brand | ChamSys |
| Name | ChamSys MagicQ Compact Connect |
| Primary Category | Lighting Control Surface |
| SKU | Not provided |
| Channels | 32,768 |
| DMX Channel Modes | 32,768 |
| DMX Universes Supported | 64 |
| Playback Media | MagicQ software integration for lighting, pixel mapping, and media control |
| Connectivity Protocols | DMX512 with RDM, ArtNet, sACN, USB, Ethernet |
| Power Consumption | 15W W |
| Voltage Range | 110–240V AC V AC |
| Control Interfaces | 10 illuminated playback faders with Flash, Go, Select buttons; 8 rotary attribute encoders; Grand Master and Crossfader controls |
| Depth | 9.06 in inches |
| Dimensions | 20.55 x 9.06 x 2.56 in inches |
| Height | 2.56 in inches |
| Included Accessories | USB A-to-C cable, dual-color desk light, dust cover, Neutrik powerCON TRUE1 power cable |
| Weight | 8.05 lb lb |
| Width | 20.55 in inches |
| Warranty Length | Not specified years |
Right from your cart
$700+ Orders Qualify for 0% Interest or Up to 24 Months
Pay in 4 or Choose Your Financing Plan
NET/30, then Flexible Simple Interest
Get Longer 0% Options or Up to 60 Months
Prefer better payment terms over VIP discounts? Use our partner website. Standard priced products with up to 24 months at 0% interest, or up to 60 months of equal payments with interest.
View this item on SquareCable.com (opens in a new tab)Store card
Apply for KPODJ's Synchrony Store Card (opens in a new tab) for 6 months of deferred interest on all products and longer terms for certain items.
I ordered and received my Chamsys Compact Connect from KPODJ, and I am thankful for this item. I have been a customer of this company and they have never dissapointed. On time and arrived in perfect condition. If you are thinking of ordering from KPODJ, don't hesitate.
