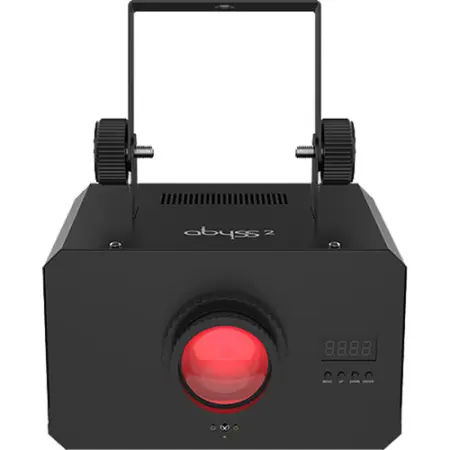

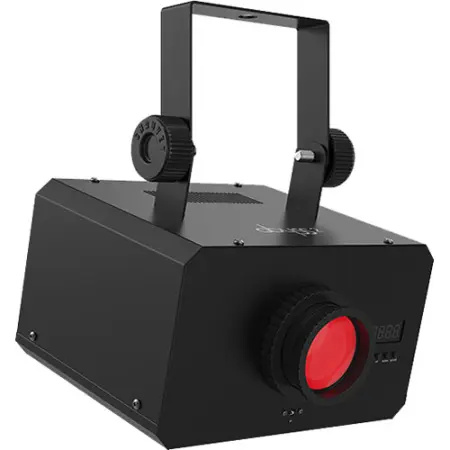

Chauvet DJ Abyss 2

Event coordinator and lighting designers in search of an easy-to-use underwater lighting effect should look no further than the Chauvet DJ Abyss 2, a special-effects fixture that's designed to simulate light through water, offering a multicolored water effect that shines through a wide variety of environments using a high-powered 60W LED, well suited for mobile DJs, special events, clubs, halls, and permanent installations.

The Abyss 2 can be controlled wirelessly using master/slave technology or DMX. A rainbow (white, magenta, yellow, cyan, green, orange) color wheel enables you to expand your design options. Non-DMX control is also available in standalone mode from the digital display or a separately available IRC-6 remote control. The Abyss 2 can be power linked to multiple units, minimizing the number of cables and extension cords needed for a full setup.

FEATURES:

Eye-catching, LED effect light simulates a multicolored water effect
Shines through any environment with or without fog
Independent control of ripples and color
Manual focus knob ensures proper focus at most distances
Non-DMX control of most settings via the digital display or optional IRC-6 remote
Save time running cables and extension cords by power linking multiple units
Fits best in the optional CHS-40 VIP gear bag

SPECIFICATIONS:


Fixture Type Special Design
Light Source 1 x White LED - 60 W / 2 A
Expected Lamp Life 50,000 Hours
Colors White, Magenta, Yellow, Cyan, Green, Orange
Photometrics 465 fc / 5010 Lux at 6.6' / 2 m
Coverage Angle 60°
Dimming Electronic, 0 to 100%
Performance
Operating Modes Automatic, Color Change, DMX, Primary/Secondary, Standalone
Macros / Programs None
Effects Water Wave
Color Scroll
Gobos None
Control
Control Protocols DMX512
DMX Channel Modes 1 Mode(s):
3-Channel
Display / Controls LED / 4-Button
Remote Control IR Remote (with Optional Equipment)
Connectivity

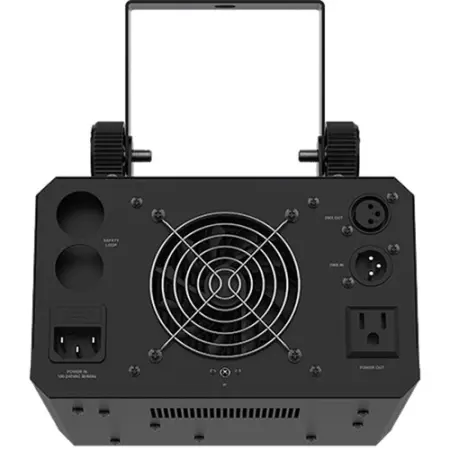

Inputs/Outputs 2 x XLR 3-Pin DMX Input/Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x IEC
Output: 1 x Edison
Plug Type: NEMA 5-15
Fuse T 1 A 250 V
Power / Current Consumption 120 VAC, 60 Hz: 80 W / 1.1 A
240 VAC, 50 Hz: 74 W / 0.6 A
Power Linking 7 Units at 120 VAC
13 Units at 230 VAC
Total Current: 8 A
Environmental
Environmental Protection None
Operating Temperature 104°F / 40°C
Physical
Mounting Mounting Bracket
Duty Cycle None
Exterior Color Black
Cooling Fan (Variable Speed)
Dimensions 8 x 7.76 x 7" / 20.3 x 19.71 x 17.8 cm
Weight 6.2 lb / 2.8 kg
Packaging Info
Package Weight 7.31 lb
Box Dimensions (LxWxH) 9.8 x 8.2 x 8"

Chauvet ABYSS2 (Chauvet DJ LED Multicolor Water-Effect Light)
