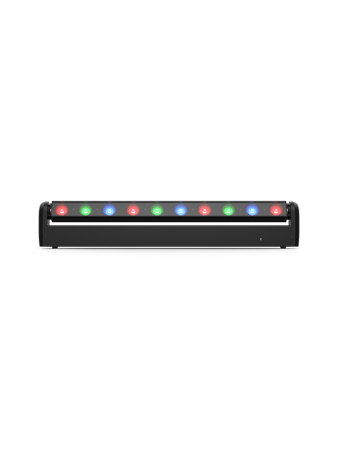

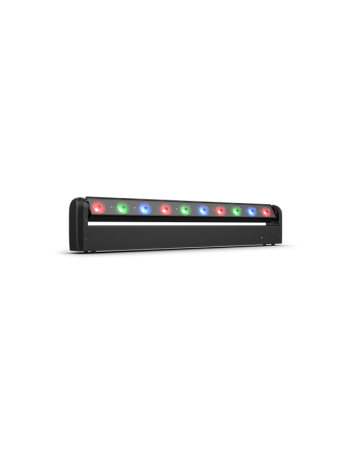

Lighting designers, club owners, and mobile entertainers in search of a professional moving head LED wash strip should look no further than the Chauvet DJ COLORband PiX M ILS, an RGB LED strip light that functions as a pixel mapping effect, blinder, or wall-wash light, making it well suited for clubs, bars, special events, broadcast studios, and photography setups.
It's moving head offers up to 245° of tilt, allowing you to dynamically sweep the light beams where they are most effective. It is D-Fi USB compatible for wireless primary/secondary or DMX control. Its tricolor LED technology generates a broad spectrum of colors. Ten zones of control facilitate chase effects with multiple prebuilt programs accessible with or without DMX control. Sound-activated and automated programs can also be accessed with the RFC or RFC-XL remotes (sold separately).
FEATURES:
Moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder, or wall-washer
Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
ILS compatibility for use in the ILS ecosystem
D-Fi USB compatibility for wireless master/slave or DMX control
Flexible control options with onboard 3- and 5-pin DMX connectors
Angle the light where it’s needed using the built-in motors
Create eye-catching animations and video effects with individual LED control
powerCON-compatible power input/output connections for power linking
Fits best in the CHS-60 VIP Gear Bag
SPECIFICATIONS:
Light
Fixture Type
Linear/Bar Light / Moving Head
Light Source
10 x Color LED - 6 W / 2 A
Expected Lamp Life
50,000 Hours
Colors
Red, Green, Blue
Pixel Configuration
10 x Zones
Photometrics
691 fc / 7441 Lux at 6.56' / 2 m
Beam Angle
15°
Field Angle
27°
Shutter / Strobe
Electronic
Dimming
0 to 100%
Performance
Operating Modes
Automatic, Color Change, DMX, Primary/Secondary, Program, Sound-Active
Macros / Programs
Color Macro
Auto-Program
Effects
Animated Patterns
Color Strobe
Strobe Rate
0 to 29 Hz
Gobos
None
Movement
Tilt Ranges
250°
Control
Control Protocols
DMX512
DMX Channel Modes
7 Mode(s):
5 / 6 / 8 / 10 / 17 / 32 / 36-Channel
Display / Controls
LED / 4-Button
Remote Control
D-Fi USB (with Optional Equipment)
IR Remote (with Optional Equipment)
Mobile App Compatible
Yes, Adapter Required (Not Included)
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility
Connectivity
Inputs/Outputs
1 x XLR 3-Pin DMX Input
1 x XLR 5-Pin DMX Input
1 x XLR 3-Pin DMX Output
1 x XLR 5-Pin DMX Output
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1 x powerCON
Output: 1 x powerCON
Plug Type: NEMA 5-15
Cord Length: 5' / 1.5 m
Power / Current Consumption
120 VAC, 60 Hz: 86 W / 1.2 A
230 VAC, 50 Hz: 84 W / 0.7 A
Power Linking
12 Units at 120 VAC
20 Units at 230 VAC
Environmental
Environmental Protection
None
Physical
Mounting
Mounting Bracket
Included Accessories
1 x Power Cable
Duty Cycle
None
Exterior Color
Black
Cooling
Convection
Certifications
CE, UKCA, RoHS
*as per Manufacturer
Dimensions
31 x 4.8 x 2.6" / 787.4 x 121.9 x 66 mm
Weight
8.2 lb / 3.7 kg
Packaging Info
Package Weight
8.82 lb
Box Dimensions (LxWxH)
34 x 10 x 5.5"
