Chauvet DJ COLORband Spectra ILS

Motorized LED Strip Light

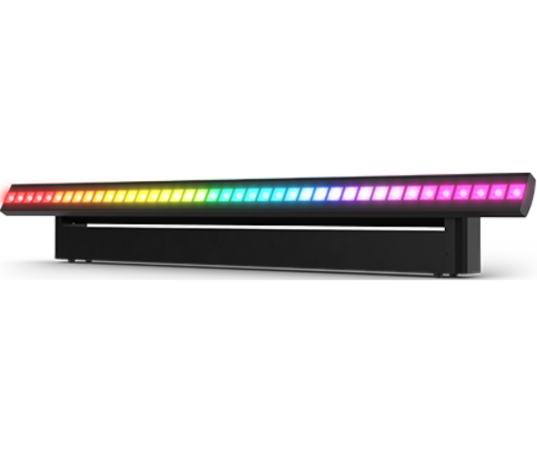

Chauvet DJ COLORband Spectra ILS is a dynamic motorized strip light designed to energize any stage or event with sweeping motion, pixel animation, and vivid color mixing. Ideal for uplighting, eye candy effects, or wash lighting, it blends seamlessly into your rig until it comes to life with motion and brightness. The 180° tilt lets you direct the light exactly where it’s needed, while its compact form factor fits discreetly in tight spaces.

Chauvet DJ COLORband Spectra ILS Competitive Differences

• Motorized tilt with 180° range for sweeping motion and beam effects
• 40 individually mappable RGB+WW LEDs for animation, chases, and pixel control

Chauvet DJ COLORband Spectra ILS Description

The COLORband Spectra ILS is a low-profile LED strip light that delivers advanced versatility for DJs, event designers, and lighting professionals. With a motorized tilt mechanism, it functions as a moving blinder, wall wash, or pixel-mapped effect bar. The RGB+WW quad-color LEDs allow users to create vibrant colors or warm white tones with precision. It features 40 LEDs with individual pixel control, opening up creative possibilities for chases, sweeps, and visual effects that respond to the music or programmed sequences. Its integration with ILS (Integrated Lighting System) allows for synchronized shows with other compatible CHAUVET DJ gear—no DMX knowledge required. Whether you're programming a subtle ambiance for weddings or pulsing visuals for clubs and concerts, the Chauvet DJ COLORband Spectra ILS offers immense control options including DMX, master/slave, D-Fi USB wireless, and RF remote compatibility. Rugged, tour-ready construction and powerCON-compatible connectors make it easy to integrate and link multiple units in professional setups.

Model Features

• Motorized 180° tilt for sweeping movement effects

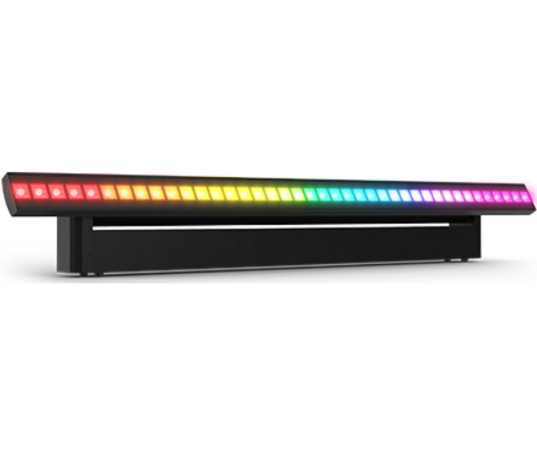

• 40 RGB+WW LEDs with pixel mapping control
• Multiple control modes: DMX, ILS, RF, master/slave
• D-Fi USB compatible for wireless control
• Power linking via powerCON-compatible connectors
• Fits in CHS-60 VIP Gear Bag

Model Specifications

• DMX Channels: 6, 11, 17, 19, or 164
• Pan and Tilt: 180° motorized tilt
• Light Source: 40 RGB+WW quad-color LEDs
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 15° | Field Angle: 26°
• Illuminance: 3,872 lux @ 2m
• Lumens: 1,938

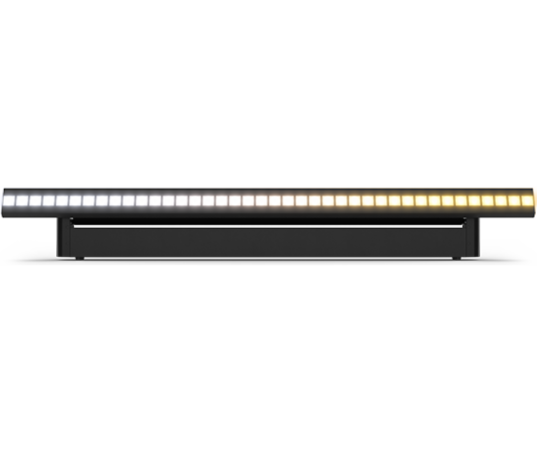

• Color Temperature Range: 3,000K–14,000K
• Power Linking: 9 units @ 120V; 16 units @ 230V
• Power Consumption: 86W @ 120V, 72W @ 230V
• Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)

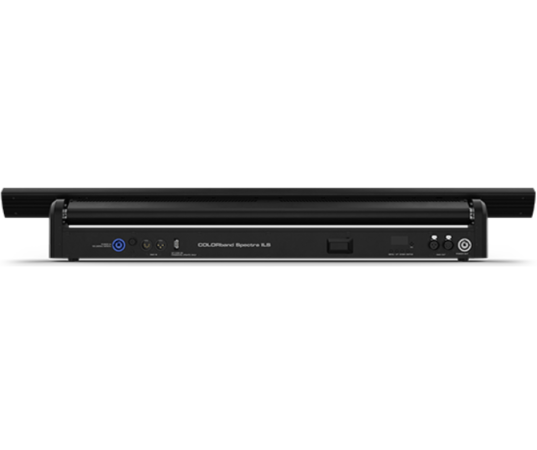

• DMX Connectors: 3- and 5-pin XLR
• Dimensions: 39.4 x 2.4 x 5.6 in (1000 x 60 x 142 mm)
• Weight: 10 lb (4.6 kg)
• Approvals: CE, ROHS

What's In The Box

• COLORband Spectra ILS
• Power cable
• Omega bracket
• Quick reference guide

Chauvet COLORband Spectra ILS (Chauvet DJ COLORband-Spectra-ILS)
