Battery-Powered Accent & Effect Light for Versatile Lighting Control
The

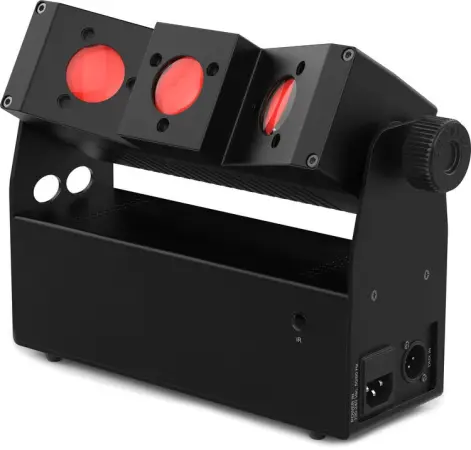

Chauvet DJ EZBeam Q3 ILS is a battery-operated lighting fixture that functions as both a wall accent and an effect light. Its D-Fi USB compatibility enables wireless DMX control, making it perfect for professional lighting setups. With ILS integration, creating coordinated light shows with various fixtures is effortless. Silent operation and sound-activated modes make this an ideal solution for both upscale and dynamic event environments.
Chauvet DJ EZBeam Q3 ILS Competitive Differences
- Battery-powered for flexible placement and portability
- Integrated ILS compatibility for synchronized light shows
- D-Fi USB compatibility for wireless master/slave or DMX control (D-Fi USB sold separately)
- Silent operation with no moving parts, perfect for quiet venues
- 180° tilt range for versatile light positioning
- Pre-programmed sound-activated and automated lighting effects
- Wireless control with the optional IRC-6 remote
- Create stunning wall art by combining multiple units
Chauvet DJ EZBeam Q3 ILS Description
The
Chauvet DJ EZBeam Q3 ILS is a multi-functional lighting fixture designed for events requiring both subtle and dynamic lighting. With quad-color RGBA LEDs, it delivers vibrant, customizable light output. The fixture supports multiple DMX channel modes for detailed control and is fully compatible with Chauvet’s ILS ecosystem for coordinated lighting effects across different fixtures.
The EZBeam Q3 ILS offers unmatched flexibility with its battery operation, providing up to 20 hours of runtime on a single color or up to 9 hours with all colors active. Its 180° tilt adjustment ensures precise light positioning, while the silent, fan-free design makes it ideal for events where noise is a concern. Use the optional IRC-6 remote or connect wirelessly with D-Fi USB for easy, cable-free setup.
EZBeam Q3 ILS Features
- Battery-operated design for maximum portability
- Quad-color RGBA LEDs for rich, vivid lighting effects
- DMX control with 6, 9, 14, or 17 channels
- Sound-activated and automated programs for dynamic light shows
- Wireless control via IRC-6 remote (sold separately)
- 16° beam angle and 24° coverage angle for versatile lighting
- 180° tilt range for flexible light placement
- Silent operation with no moving parts
EZBeam Q3 ILS Specifications
- DMX Channels: 6, 9, 14, or 17
- DMX Connectors: 3-pin XLR
- Light Source: 3 quad-color RGBA LEDs (3.3W each, 50,000-hour lifespan)
- Strobe Rate: 0 to 31 Hz
- Beam Angle: 16°
- Coverage Angle: 24°
- Illuminance: 172 lux @ 2m (per pod)
- Power Linking: Up to 10 units @ 120V; 18 units @ 230V
- Input Voltage: 100-240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 55W, 0.8A @ 120V, 60Hz
- Weight: 7.6 lbs (3.4 kg)
- Dimensions: 12 x 3.5 x 8.5 in (308 x 89 x 217 mm)
- Approvals: CE, UKCA, RoHS
- Maximum Runtime: Up to 9 hours (all on), 20 hours (single color)
- Recharge Time: 5 hours
What’s In The Box
- EZBeam Q3 ILS Fixture
- Power Cord
- Quick Reference Guide
Chauvet EZ Beam Q3 ILS
(Chauvet DJ EZ Beam Q3ILS)
