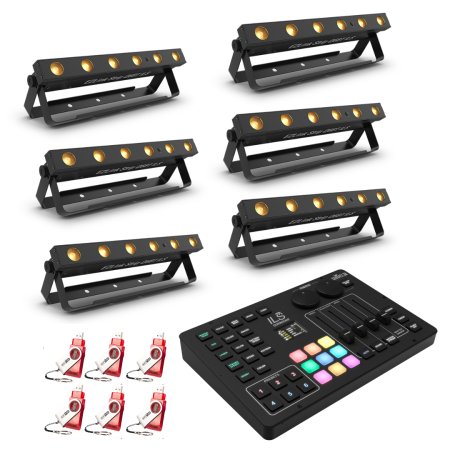

The Chauvet DJ EZLink Strip Q6BT ILS Bundle with Command is an all-in-one lighting solution designed for DJs, event producers, and lighting professionals who need high-quality, versatile lighting with easy-to-use control options. This package includes the Chauvet DJ EZLink Strip Q6BT ILS, a Chauvet DJ D-Fi USB, and the Chauvet DJ ILS Command. Here’s an overview of each component:

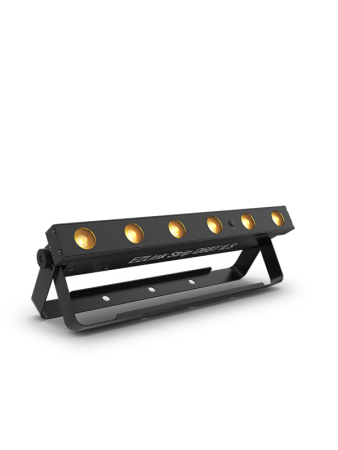

Chauvet DJ EZLink Strip Q6BT ILS: The EZLink Strip Q6BT ILS is a battery-operated, wireless quad-color (RGBA) LED strip light that offers vibrant color mixing and a range of dynamic effects. Featuring built-in Bluetooth® wireless technology, this fixture can be controlled directly from a smartphone or tablet using the BTAir app, providing flexibility and convenience. The ILS (Integrated Lighting System) compatibility allows for seamless synchronization with other ILS-enabled fixtures, making it ideal for creating coordinated and dynamic light shows. Its battery operation and compact design make it highly portable and easy to set up in any venue.
Chauvet DJ D-Fi USB: The D-Fi USB is a compact wireless DMX transmitter/receiver that allows for wireless control of compatible Chauvet DJ fixtures. By plugging the D-Fi USB into the USB port of the EZLink Strip Q6BT ILS, you can achieve wireless DMX control, eliminating the need for DMX cables and simplifying the setup process. This enhances the flexibility and usability of the lighting system.

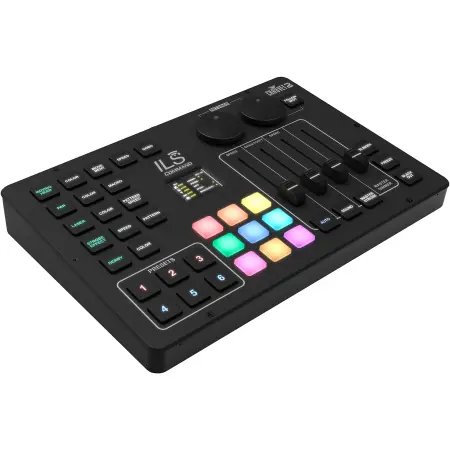

Chauvet DJ ILS Command: The ILS Command is a powerful and intuitive controller designed to simplify the operation of ILS-enabled fixtures. It allows users to create complex lighting scenes and effects with ease, providing a comprehensive control interface for managing multiple fixtures. The ILS Command integrates seamlessly with the EZLink Strip Q6BT ILS and other ILS-compatible lights, ensuring smooth and synchronized lighting displays.
In summary, the Chauvet DJ EZLink Strip Q6BT ILS Bundle with Command offers a versatile and high-performance lighting solution suitable for a variety of professional applications. The EZLink Strip Q6BT ILS delivers vibrant and dynamic lighting effects with wireless control capabilities, the D-Fi USB enables flexible wireless DMX connectivity, and the ILS Command offers powerful and user-friendly control over the entire lighting setup. This bundle is perfect for DJs, event producers, and lighting professionals seeking a reliable, portable, and easy-to-use lighting system.
SPECIFICATIONS:
Chauvet DJ EZLink Strip Q6BT ILS:
DMX Channels: 4, 6 or 16
DMX Connectors: 3-pin XLR
Max Unobstructed Distance: 150 ft (45.7 m)
Light Source: 4 LEDs (quad-color RGBA) 3 W, (1A), 50,000 hours life expectancy
Strobe Rate: 0 to 20Hz
Beam Angle: 47°
Field Angle: 79°
Maximum Run Time:
All on: up to 8 hours
Single color: up to 20 hours
Recharge Time: 4 hours
Operating Frequency: 2.4 GHz
Illuminance: 325 lux @ 2 m
Power Linking: 33 units @ 120 V; 54 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
17 W, 0.3 A @ 120 V, 60 Hz
17 W, 0.1 A @ 230 V, 50 Hz
Weight: 6.8 lb (3.1 kg)
Size: 19.7 x 4.2 x 5.4 in (500 x 108 x 139 mm)
Approvals: CE, RoHS ,UKCA, FCC
Cable Length: 5 ft (1.5 m)
Bracket Mounting Hole: 13 mm
Optional Controllers: IRC6, BTAirBluetooth Version: 4.2
WHAT'S INCLUDED
EZLink Strip Q6BT ILS
Power cord
Quick Reference Guide
Chauvet DJ D-Fi USB:
Finger-sized wireless DMX transceiver provides instant wireless communication
Transfers DMX as well as master/slave signals between similar fixtures
Eliminates the need for DMX cables
Plugs directly into USB-compatible devices
The wireless DMX transceiver works without the need of an external power supply
Fully FCC/RTTE compliant
Chauvet DJ D-Fi USB Specifications:
Operating Frequency: 2.412 to 2.484 GHz
Max Unobstructed Distance: 165 ft (50 m)
Weight: 1.1 oz. each
Size: 3 x 0.9 x 0.5 in (78 x 25 x 13 mm)
Approvals: CE, FCC
Chauvet DJ ILS Command:
ILS Connectors: 3-pin XLR
Programmable Presets: 6
Operating Frequency: 2.412–2.484 GHz
Cable Length: 20"
Max Unobstructed Distance: 600'
Input Voltage (USB-C): 5V, 1A
Weight: 3.6 lb.
Size: 12.3" x 9.9" x .7"
Approvals: CE, UKCA, RoHS, FCC
