Wireless Battery-Powered LED Uplight
The

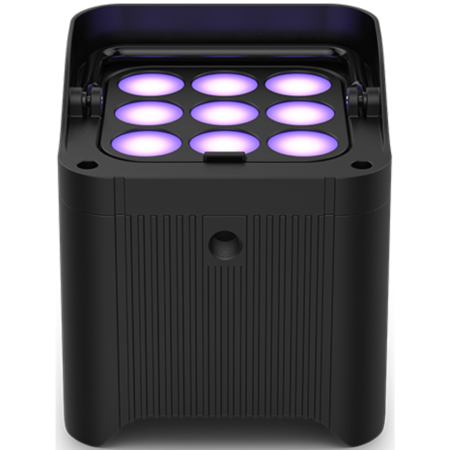

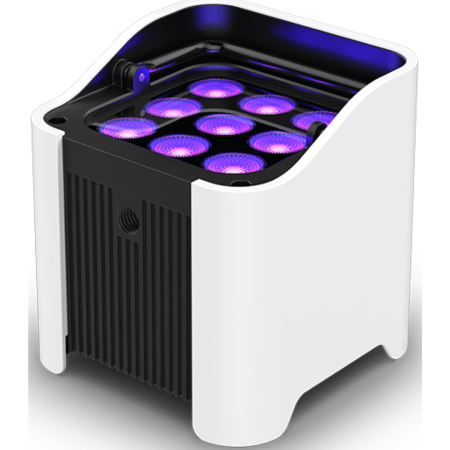

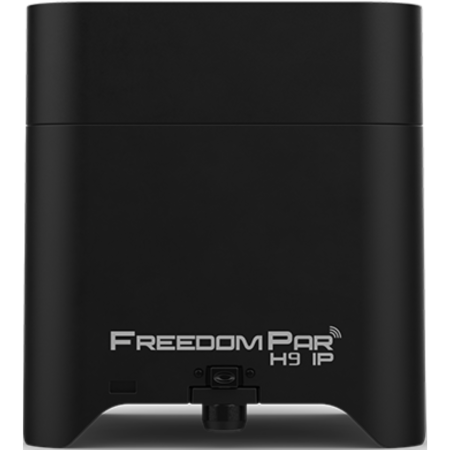

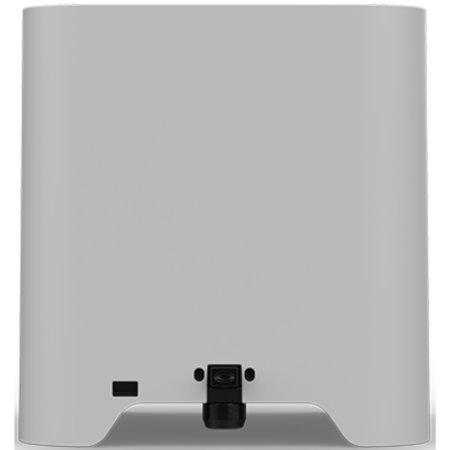

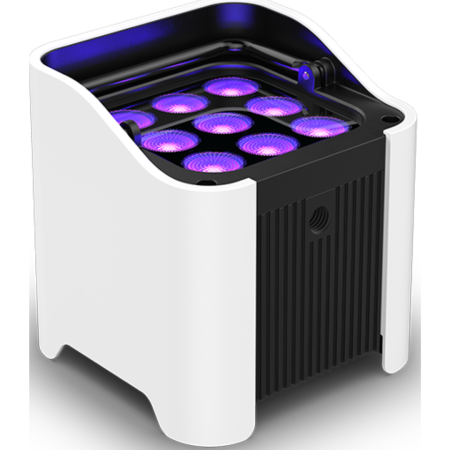

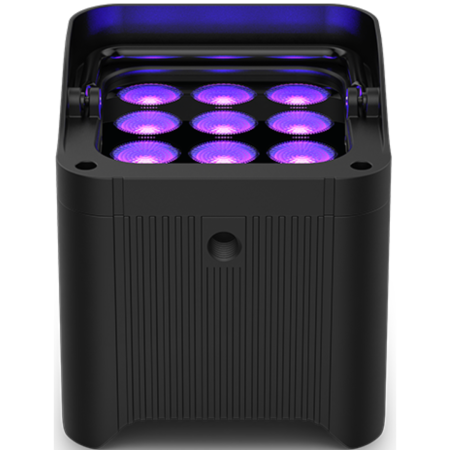

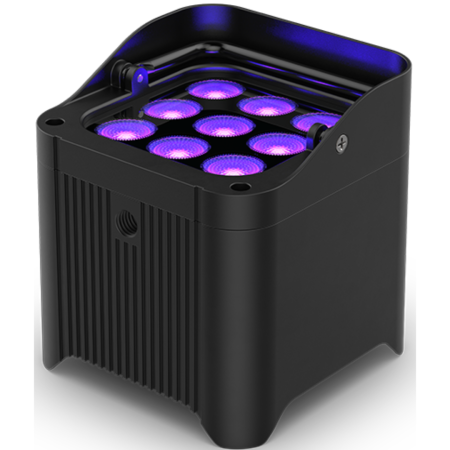

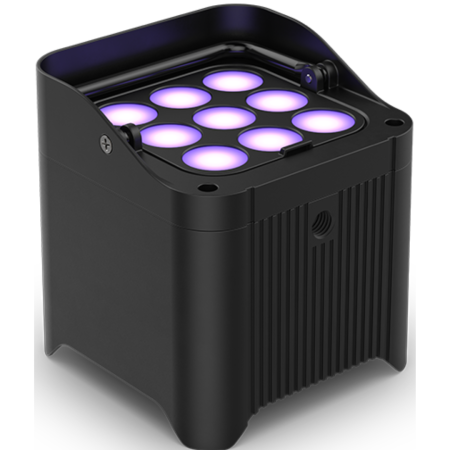

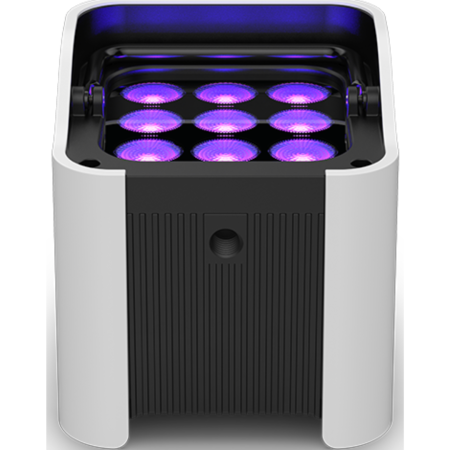

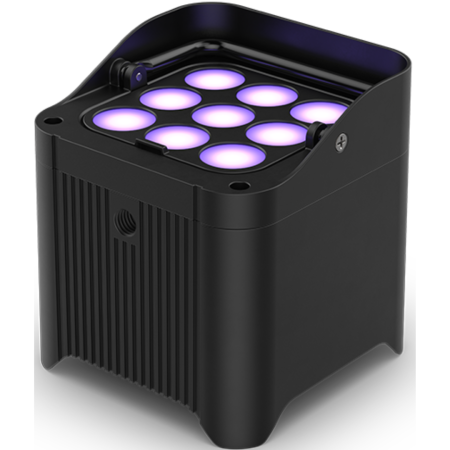

Chauvet DJ Freedom Par H9 IP is a compact, 100% TRUE wireless LED uplight designed for maximum portability and performance. With hex-color (RGBAW+UV) LEDs, built-in D-Fi for wireless DMX, and RF remote compatibility, it delivers flexible control in a weather-resistant IP54-rated enclosure—ideal for both indoor and temporary outdoor applications.
Chauvet DJ Freedom Par H9 IP Competitive Differences
- Fully wireless with both D-Fi transceiver and RF remote compatibility
- IP54-rated housing for reliable outdoor use
Chauvet DJ Freedom Par H9 IP Description
The
Freedom Par H9 IP is engineered for mobile entertainers and event pros who demand performance, flexibility, and portability. With a compact design that easily fits into TRUSST® systems, this uplight features 9 x 10W RGBAW+UV LEDs for vivid, customizable output with excellent color mixing.
Its IP54-rated housing allows for confident use in temporary outdoor environments, while the magnetic diffuser softens the beam and expands coverage. Full-text OLED display and onboard controls make setup easy, and adjustable run times (3, 5, 8, or 12 hours) allow you to optimize battery life for any event.
Control is simple with built-in D-Fi for wireless DMX and an RF receiver for use with Chauvet’s RFC or RFC-XL remotes. Added features like a glare shield, dimming curves, kickstand angle adjustment, and charge/discharge protection make this uplight a reliable and versatile tool for any lighting setup.
Model Features
- Hex-color (RGBAW+UV) LEDs for rich, blended color output
- Built-in D-Fi transceiver for wireless DMX control
- RF receiver for remote control (RFC, RFC-XL compatible)
- IP54-rated housing for indoor and temporary outdoor use
- Magnetic diffuser for wider beam coverage
Model Specifications
- DMX Channels: 6, 8, or 16
- Beam Angle: 23° (40° with diffuser)
- Field Angle: 46° (79° with diffuser)
- Illuminance: 1249 lux @ 2 m (432 lux with diffuser)
- Lumens: 1,258
- Max Unobstructed Distance: 600 ft (183 m)
- Recharge Time: 3 hours
- Power: 50W, 0.7A @ 120V | 0.4A @ 230V
- Input Voltage: 24 VDC (external power supply included)
- Dimensions: 4.7 x 4.7 x 4.9 in (120 x 120 x 126 mm)
- Weight: 4.6 lb (2.1 kg)
- IP Rating: IP54
- Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)
- Startup Temperature: 4 °F to 113 °F (-20 °C to 45 °C)
What's In The Box
- Freedom Par H9 IP
- External power supply
- Magnetic diffuser
- Quick reference guide
Chauvet Freedom H9 IP65
(Chauvet DJ H9 Freedom Par IP)
