All-in-One Moving Head & Wash Light System
The
Chauvet DJ GigBAR Bridge ILS is a powerful, all-in-one lighting bar that blends the excitement of moving heads with the vibrant color of RGBAW+UV wash lights. Designed for fast setup and seamless light show integration, this ILS-compatible system is perfect for mobile DJs, weddings, clubs, and live performers.
Chauvet DJ GigBAR Bridge ILS Competitive Differences
- 2-in-1 system: Moving heads + washes pre-mounted on a single bar
- Built-in D-Fi wireless for DMX and ILS syncing — no extra cabling needed
Chauvet DJ GigBAR Bridge ILS Description
Chauvet GigBAR Bridge ILS offers show-ready lighting in a compact format that sets up in minutes. With two 40W cool white moving heads and four 10W RGBAW+UV wash LEDs, this fixture delivers beam movement, color mixing, and built-in effects — all pre-mounted on a single bar.
The integrated D-Fi transceiver allows wireless DMX or ILS (Instant Light Shows) compatibility, enabling full synchronization with other ILS fixtures without running data cables. Built-in locking systems let you connect multiple GigBAR Bridge units quickly and securely for expanded coverage. A removable mounting bracket makes it easy to mount on tripods or truss systems.
Each moving head features independent color and gobo wheels with 9 colors and 9 gobos (plus open), offering creative visual combinations. Totem Mode ensures the heads stay focused on the dance floor, maintaining energy and engagement. Easily navigate settings using the full-color LCD or trigger built-in shows with the included RF remote — no line of sight required.
Model Features
- 2-in-1 system with moving heads and RGBAW+UV wash lights
- Integrated D-Fi transceiver for wireless DMX or ILS signal control
- ILS compatibility for synchronized light shows
- Independent color and gobo wheels (9 each + open)
- Totem Mode keeps moving heads aimed at the dance floor
- Full-color LCD for quick setup and control
- Power linking: 8 units @ 120V, 13 @ 230V
- Trigger built-in shows with included RF remote
- Tool-free mounting on tripods or truss with removable bracket
Model Specifications
- DMX Channels: 3, 16, or 46
- DMX Connectors: 3-pin XLR
- Power & Current: 191W, 1.5A @ 120V | 175W, 1A @ 230V
- Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
- Moving Head LEDs: 2x 40W cool white (50,000 hr lifespan)
- Wash LEDs: 4x 10W RGBAW+UV (50,000 hr lifespan)
- Beam Angle (Wash): 22° | Field Angle: 38°
- Strobe Rate: 0–20 Hz
- Max D-Fi Distance: 600 ft (183 m)
- Fits Tripod Size: 1.5 in (37.4 mm)
- Size: 26 x 2.8 x 12 in (660 x 71 x 305 mm)
- Weight: 18.6 lb (8.4 kg)
- Certifications: CE, RoHS, FCC

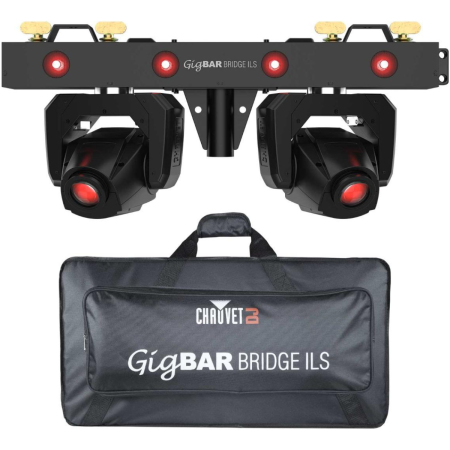

What's In The Box
- GigBAR Bridge ILS fixture
- Power cable
- 2 hanging brackets
- RF remote
- Quick reference guide
Chauvet Gig BAR Bridge ILS
(Chauvet DJ Gig-BAR Bridge ILS)
