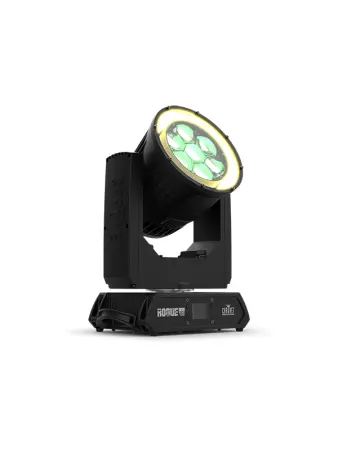

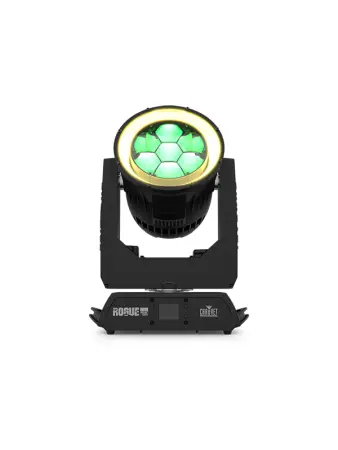

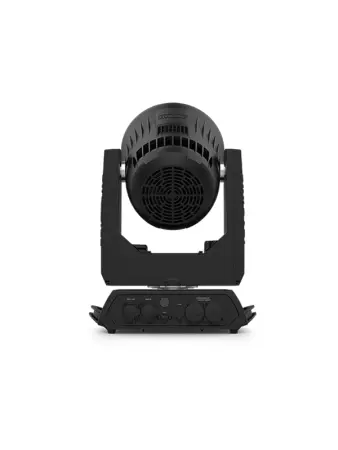

Chauvet DJ Rogue Outcast 1 BeamWash

Rogue Outcast 1 BeamWash is a lightweight, IP65 rated, LED Beam & Wash fixture enhanced with a pixel-mappable LED ring around it’s face. A unique lens design developed for tight beam effects allows for a wide zoom range of 3.9° to 55.3° for maximum coverage. Seven 45W RGBW LED’s combine excellent color mixing with a punchy output featuring 16-bit dimming and several dimming modes for advanced control. The outer ring comprises of 12 pixel-mappable RGB LED zones underneath a smoked stealth filter. Easily create eye-catching effects with prebuilt programs for the ring with the ability to control dimming, rate, foreground and background colors. This compact fixture weighs only 20lbs and features a rugged IP65 casing that is proven to withstand all of the harshest elements. Control as you see fit with multiple profiles with simple and advanced control modes compatible with DMX & RDM protocols. Update software easily with an onboard USB-C port.

FEATURES:

Fully featured RGBW LED IP 65 rated yoke wash fixture with zoom and RGB LED ring

16-bit dimming of master dimmer as well as individual colors for smooth control of fades

7 RGBW LEDs, 45 W each

12 zone pixel-mappable RGB LED outer ring under a stealth filter for added effect possibilities

Prebuilt programs for outer LED ring with the ability to easily control dimming, rate, foreground and background colors

5-pin DMX input/output connections

Unique lens design for excellent color blending and tight beam effects

Extremely fast, smooth pan and tilt movement

RDM enabled for remote addressing and trouble shooting

Selectable PWM settings for camera operation

Zoom Range: 3.9° to 55.3° for maximum coverage

User selectable calibrated white for 7500 K at full output

6 distinct dimming modes for advanced control

Easy to read OLED display with simple, effective menu options

Simple and complex DMX channel profiles for programming versatility

USB-C port for uploading software

SPECIFICATIONS:

Optical
Field Angle: 5.9° to 49.8°
Cutoff Angle: 6.7° to 55.3°
Zoom Range: 3.9° to 55.3°
Lumens – Source: 5,900
Lumens – Output: 4,073
Illuminance (3.9°): 15,308 lux @ 5 m
Illuminance (55.3°): 473 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz,
15,000 Hz

Dynamic Effects
Pan and Tilt: 540°/260°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 260° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: yes
Recall Custom Programs: No

Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
IP Rated Seetronic® Powerkon Extensions
DMX Cables
Flight Case:
UPLOAD 08 software uploader

Construction / Physical
Dimensions: 11.92 x 7.58 x 15.75 in (303 x 192 x 391 mm)
Weight: 20.2 lb (9.16 kg)
Exterior Color: Black
Housing Material: Magnesium aluminum diecast, high impact,
flame-retardant polymer

Connections
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control
Control Protocol: DMX, RDM
DMX Channels: 15, 24, 30, 64, 111 or 135
Modes/Personalities: 6 personalities (15, 24, 30, 64, 111, 135)

Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
Power and Current: 385 W, 3.25 A @ 120 V, 60 Hz
Power and Current: 376 W, 1.92 A @ 208 V, 60 Hz
Power and Current: 372 W, 1.69 A @ 230 V, 50 Hz

Certifications / Qualifications
CE, MET, FCC, UKCA
IP Rating: IP65, temporary outdoor/wet use, with pressure
equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
Maximum Ambient Temperature (ta) 45° C / 113° F

What's Included
Rogue Outcast 1 BeamWash
Seetronic Powerkon IP65 power cord
(2) Omega brackets with mounting hardware

Chauvet Professional Rogue Outcast 1 Beam Wash (Chauvet DJ ROGUEOUTCAST1BEAMWASH)
