Hex-Color LED Wash Light
The

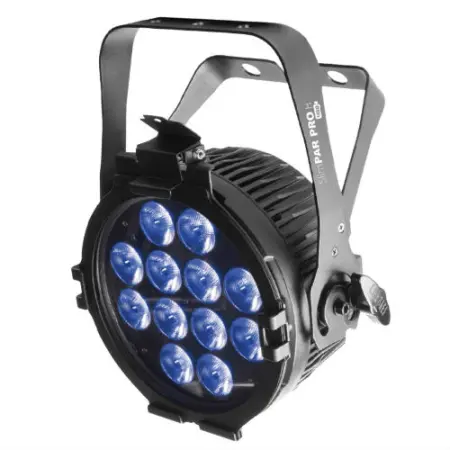

Chauvet DJ SlimPAR Pro H USB is a high-power, low-profile LED wash designed for professional lighting applications where precise color, silent operation, and flexibility are essential. With RGBAW+UV LED technology, this fixture delivers smooth color blending and natural white temperatures, making it ideal for events, video productions, and stage lighting.
Chauvet DJ SlimPAR Pro H USB Competitive Differences
- D-Fi USB compatibility for wireless DMX or Master/Slave control
- powerCON-compatible input/output for reliable power linking
Chauvet DJ SlimPAR Pro H USB Description
The
SlimPAR Pro H USB offers professional-grade lighting in a compact and silent fixture. Designed with hex-color RGBAW+UV LEDs, it can produce an expanded color palette, including subtle pastels and vibrant saturated hues, while maintaining natural skin tones with adjustable white points.
Thanks to D-Fi USB compatibility, the unit can be wirelessly controlled via DMX or Master/Slave mode using a compatible USB dongle (sold separately), streamlining setup and minimizing cabling. This model features powerCON-compatible connections for secure, daisy-chained power distribution and fits most 7.5” barndoors for added beam control.
With flicker-free output, it's optimized for on-camera use, and its fanless design ensures silent operation—perfect for studios, theaters, weddings, and corporate settings. The rugged build and compact form factor also allow it to mount discreetly within truss structures.
Model Features
- 12x 10W hex-color (RGBAW+UV) LEDs for full-spectrum output
- D-Fi USB compatible for wireless DMX or Master/Slave control
- Flicker-free output for video and broadcast use
- Silent, fanless operation with no moving parts

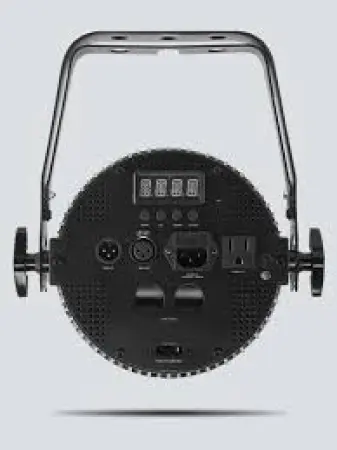

- PowerCON-compatible in/out for secure power linking
- Fits standard 7.5" barndoors for focused control
- Compact form factor fits inside standard trussing
Model Specifications
- DMX Channels: 6, 7, or 12
- Light Source: 12x 10W hex-color LEDs (RGBAW+UV)
- Beam Angle: 24°
- Field Angle: 41°
- Illuminance: 3,218 lux @ 2 m; 483 lux @ 5 m
- Strobe Rate: 0–31 Hz
- PWM Frequency: 1.2 kHz (flicker-free)
- Power Linking: 5 units @ 120V; 10 units @ 230V
- Input Voltage: 100–240V AC, 50/60 Hz (auto-ranging)
- Power and Current: 99W, 1.4A @ 120V | 96W, 0.8A @ 230V
- Dimensions: 10 x 3.9 x 11.4 in (253 x 98 x 290 mm)
- Weight: 7.2 lb (3.3 kg)
- DMX Connectors: 3-pin XLR
- Approvals: CE, MET
What's In The Box
- SlimPAR Pro H USB fixture
- Power cord
- Gel frame
- Gel frame holder
- Quick reference guide
- Warranty card

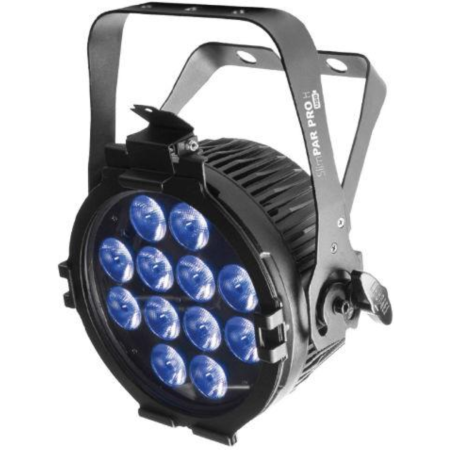

Chauvet Slim Par Pro H USB
(Chauvet DJ Slim Par Pro H USB)
