Multi-Effect LED Light

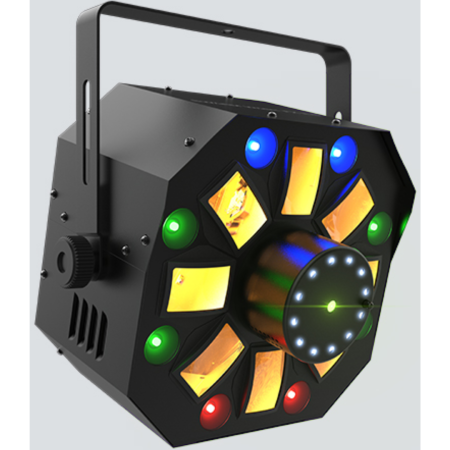

Chauvet DJ Swarm Wash FX ILS is a powerhouse 4-in-1 lighting fixture that delivers stunning visual excitement for parties, performances, and events. Combining derby-style beams, UV-infused wash lighting, red and green lasers, and a ring of white strobe LEDs, this all-in-one unit is packed with versatility and performance—now enhanced with ILS and wireless D-Fi USB compatibility.
Chauvet DJ Swarm Wash FX ILS Competitive Differences
- 4-in-1 effects: RGBAW derby, RGB+UV wash, red/green laser, and SMD strobes
- ILS and D-Fi USB compatible for easy wireless light show syncing
Chauvet DJ Swarm Wash FX ILS Description
The
Chauvet DJ Swarm Wash FX ILS is a dynamic lighting solution that creates immersive atmospheres with a single fixture. At its core is a rotating RGBAW derby that casts razor-sharp, multicolor beams in all directions, complemented by an RGB+UV wash for rich color floods and blacklight effects. A red and green laser projects thousands of sharp beams across your venue, while a ring of 12 white SMD strobes adds pulsing intensity and rhythmic energy.
Thanks to ILS (Integrated Lighting System) compatibility, the Swarm Wash FX ILS can sync with other ILS-enabled fixtures to produce fully coordinated light shows without complex programming. It also supports wireless Master/Slave and DMX operation via optional D-Fi USB, giving you cable-free control for faster setups.
With built-in auto and sound-activated programs, you can instantly generate impactful looks, or take full control via 2 or 18 DMX channels. It’s also compatible with the IRC-6 remote for quick, handheld control of programs, colors, and effects.
Portable and powerful, the fixture fits inside the CHS-40 VIP Gear Bag, making it a perfect choice for mobile DJs, venues, and event lighting techs who want maximum effect with minimal gear.
Model Features
- 4-in-1 LED fixture: rotating derby, RGB+UV wash, strobe, and laser
- ILS compatible for easy synchronization across multiple fixtures
- D-Fi USB compatible for wireless DMX and Master/Slave control
- Red and green laser casts thousands of beams
- Built-in auto and sound-activated programs
- Works in DMX, Master/Slave, or IR modes
- Control with IRC-6 remote (sold separately)
- Power linking reduces cable clutter during setup
- Fits in CHS-40 VIP Gear Bag
Model Specifications
- DMX Channels: 2 or 18
- Derby LEDs: RGBAW (power not individually listed)
- Wash LEDs: 8x 1.5W RGB+UV (50,000 hrs)
- Strobe LEDs: 12x 1W White SMD (50,000 hrs)
- Laser: Red 100mW (650 nm), Green 30mW (520 nm)
- Coverage Angles:
- Laser: 82°
- Swarm: 65°
- Strobe: 71°
- Wash: 46°
- Strobe Rate: 0–20 Hz
- Power and Current: 51W, 0.7A @ 120V | 50W, 0.4A @ 230V
- Power Linking: 11 units @ 120V | 20 units @ 230V
- Input Voltage: 100–240V AC, 50/60Hz (auto-ranging)
- DMX Connectors: 3-pin XLR
- Dimensions: 13.1 x 13 x 9.4 in (335 x 332 x 241 mm)
- Weight: 9.5 lb (4.3 kg)
- Approvals: CE, FDA, RoHS, UKCA
- Laser Classification: EN/IEC 60825-1:2014 compliant
What's In The Box
- Swarm Wash FX ILS fixture
- Power cord
- User manual
- Key and interlock (EU only)
Chauvet DJ PRO Swarm Wash FX-ILS
(Chauvet DJ Swarm-Wash FX ILS)
