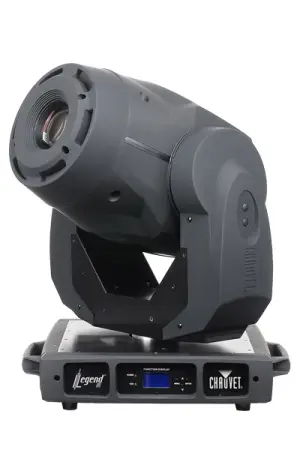

Chauvet DJ Legend 330E Spot

Chauvet Legend 300E Spot (Chauvet LEGEND 330 E Spot)

The Chauvet Legend 300E Spot moving yoke offers CMY color mixing and is fitted with a MiniFastFit lamp to provide superior output while maintaining a compact size. It features two gobo wheels, one with eight rotating gobos and the other with eight fixed gobos. The fixture also includes electronic ballast and power supply, variable shutter speed, an iris, focus and 16-bit dimming.

21 or 29-channel compact, fully electronic, 300-watt moving yoke spot
Pan: 540°
Tilt: 270°
Color wheel: 7 colors + white
Split/linear colors
Rainbow color spin at variable speed
Gobo wheel 1: Indexed, rotating gobo wheel with gobo shake
7 glass, slot-n-lock gobos + open
1 multicolor, 6 black / white
Gobo wheel spin at variable speed
16-bit gobo rotation
Gobo wheel 2: Indexed gobo wheel
8 metal gobos + open
Gobo wheel spin at variable speed
Static frost
CTC filters (5,600 K and 3,200 K)
CMY color mixing system with vector speed adjustments
3-facet rotating prism
Variable shutter
Variable iris
Variable focus
Variable 16-bit dimming (0 ~ 100%)
Linear zoom (16° ~ 35°)
Individual reset of pan/tilt, color, gobo, shutter, prism, focus
Move-in-black for pan/tilt, color, gobo
Remote fixture reset, lamp on/off and vector control speed adjustments
Built-in movement macros with range adjustments
Built-in color macros
Battery powered display
3-pin and 5-pin DMX connections
Two additional free gobos
User-configurable lamp ignition delay
User-configurable maintenance reminder
Electronic ballast with power factor correction
Electronic power supply
Automatic pan & tilt correction
Pan & tilt locks
Lamp & fixture use timers
Power saver mode

Gobo wheel 1: 26.83 mm outside, 23.29 mm image, 4.32 mm max thickness
Gobo wheel 2: 31.42 mm outside, 23.04 mm image, 0.80 mm max thickness
Beam Angle: (16° ~ 35°)
Lux: 12,200 @ 5 m, 16° zoom
2,800 @ 5 m, 35° zoom
Light source: MSR Gold 300/2 MiniFastFit™ 8,400 K, 750 hrs
Power and current: 120 V, 60 Hz; 477 W, 4.12 A (operating), 3.1 A (inrush), PF 0.99
230 V, 50 Hz; 468 W, 2.17 A (operating), 1.6 A (inrush), PF 0.95
AC power: Auto-ranging 100 ~ 240 V, 50/60 Hz
Weight: 47.50 lbs / 21.55 kg
Size: 14.5 x 17.9 x 23.7 in / 370 x 456 x 602 mm


OPTIONAL EQUIPTMENT
W-DMX wireless receiver
W-DMX wireless transmitter
