Chauvet DJ Legend 412 VW
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

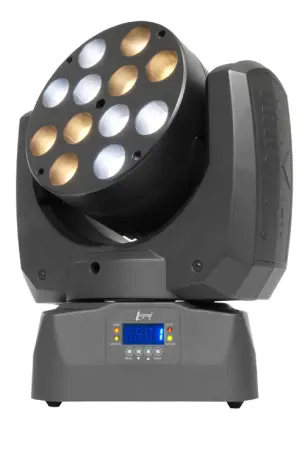

Chauvet Legend 412 VW (Chauvet Legend-412VW)
Legendâ„¢ 412 VW shares the architecture of the Legendâ„¢ 412 but incorporates the variant of warm and cool white quad-colored Cree LEDs for better, purer whites and the flexibility of color temperature selection to go from warm and inviting, to crisp and cold shades. Fast and precise, it too, is capable of dynamic pixel-mapping effects and internal chases.
Features:
• DMX channels: 10 or 20
• Operating modes:
10 channel - basic operation
20 channel - advanced operation with quaderent control
• Color Mixing: Warm White, Cool White
• Color Temperature Range: 3,400~6,500 K
• Electronic shutter
• Electronic dimmer
• All functions reset over DMX
• Move in Black over DMX or on display
• Movement Macros with speed adjustment
• Color Macros with speed adjustment
• Electronic power supply
• IEC power cable
• Fast movement
• Bright white quad color LEDs
• Quadrant control of output
• Strobe macros with quadrant strobe
• Flicker free operation for HD cameras
Specifications:
• DMX connectors: 5-pin
• Pan & tilt: 630° / 200°
• Source: 12 (10W) quad color LEDs, 50,000 hrs
• Configuration: 12 VW (700 mA per die)
• Beam angle: 12°
• Field angle: 23°
• Lux: 1,680 @ 5 m
• AC Voltage Range: 100~240 V, 50/60 Hz (auto-ranging)
• Power Consumption 120 V, 60 Hz: 145 W, 1.8 A (operating)
• Power Consumption 230 V, 50 Hz: 170 W, 0.5 A (operating)
• Dimensions: 5.5 x 10.1 x 12 in (140 x 256 x 304 mm)
• Weight: 10.1 lbs (4.58 kg)
• Certification: CE, MET
• Environment: IP20, indoor/dry
