High-Output LED Moving Head Light with Dual Gobo and Color Wheels
The

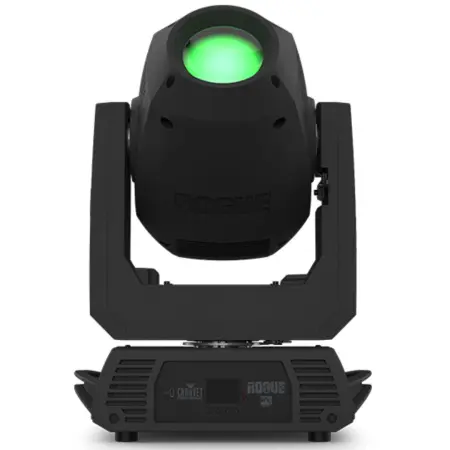

Chauvet Pro Rogue R2E Spot is a powerful and compact 350W LED moving head spot fixture designed for professional lighting rigs. With intense output, dual gobo and color wheels, and versatile beam-shaping tools, it delivers exceptional visual effects in a lightweight body. Ideal for touring, rentals, or fixed installs, it offers precise control and seamless integration into any lighting design.
Chauvet Pro Rogue R2E Spot Competitive Differences
- Powerful 350W cool white LED engine delivering 16,345 lumens
- Dual gobo wheels for custom morphing looks (1 rotating, 1 static)
- Two color wheels with 8 vibrant colors each, plus split-color capability
- Motorized iris, frost, and rotating 3-facet prism for enhanced beam control
- Selectable PWM settings (up to 15,000 Hz) for flicker-free camera use
- Selectable LED output setting to match legacy Rogue R2X Spot fixtures
- RDM enabled for remote addressing and diagnostics
- Multiple pan/tilt range options for flexible movement programming
Chauvet Pro Rogue R2E Spot Description
The

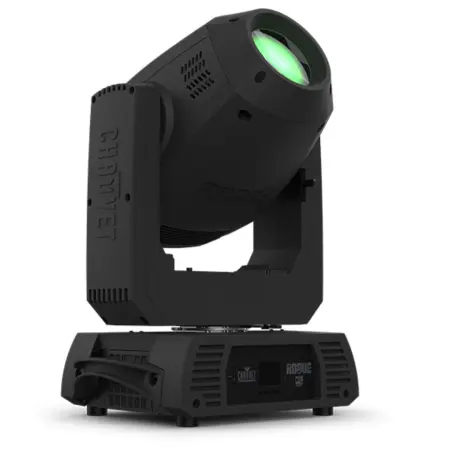

Rogue R2E Spot by Chauvet Professional brings a robust suite of features in a sleek, compact form. With its 350W cool white LED engine, it pushes out up to 16,345 lumens and projects crisp, vivid gobos through its 90mm front lens. Its tight 15.9° beam angle ensures clarity and brightness, while the integrated 3-facet rotating prism and motorized frost and iris enhance the fixture’s versatility in both aerial and stage-focused applications.
This intelligent fixture includes dual gobo wheels—one rotating and interchangeable, and one static—for advanced morphing effects, plus two color wheels with a combined 16 vibrant color options and split-color capabilities. Motorized focus, pan/tilt movement, and three selectable dimming curves offer comprehensive control for creative designers.
Equipped with selectable PWM frequencies (up to 15,000 Hz), the Rogue R2E Spot is optimized for use on camera and in broadcast settings. RDM and DMX control compatibility ensure fast setup and integration, while the rugged housing and quiet operation make it suitable for concerts, corporate events, theaters, and touring.
Rogue R2E Spot Features
- 350W cool white LED light engine (7057K)
- Dual gobo wheels: one rotating and interchangeable, one static
- Dual color wheels with 8 colors each, plus split and scroll
- Motorized iris, frost, and rotating 3-facet prism
- Electronic dimming and shutter/strobe (0–22 Hz)
- Motorized focus and move-in-black function
- Selectable LED max output and PWM frequency
- DMX (3- and 5-pin) and RDM compatible
- 2 DMX modes: 19 or 22 channels
- Simple and complex DMX profiles for versatile programming
Rogue R2E Spot Specifications
- Light Source: 350W LED, 7057K, 50,000-hour life
- CRI: 70.4
- Beam Angle: 15.9°
- Field Angle: 18.1°
- Cutoff Angle: 20.3°
- Lumen Output: 16,345 lumens
- Illuminance: 11,345 lux @ 5 m
- Pan/Tilt: 540°/270° (selectable 540°, 360°, 180° pan / 270°, 180°, 90° tilt)
- Gobos:
- Wheel 1: 7 rotating, interchangeable metal gobos + open
- Wheel 2: 8 static metal gobos + open
- Color Wheels: 2 wheels with 8 colors each + white
- Gobo Size (rotating): 20 mm (outer), 16 mm (image), 1.5 mm (max thickness)
- Strobe Rate: 0–22 Hz
- Control Protocol: DMX, RDM
- DMX Channels: 19 or 22
- Power Input: 100–240 VAC, 50/60 Hz (auto-ranging)
- Power Consumption:
- 481W, 4.05A @ 120V
- 472W, 2.32A @ 208V
- 469W, 2.13A @ 230V
- Power Linking: 2 units @ 120V; 5 units @ 208V/230V

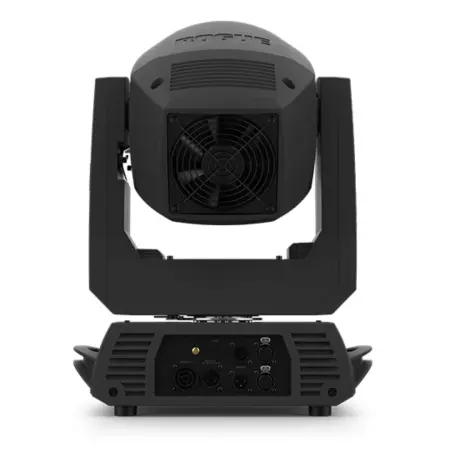

- Connectors: Seetronic PowerKon in/out, 3- and 5-pin XLR
- Housing: High-impact flame-retardant polymer, black
- IP Rating: IP20 (dry location)
- Certifications: CE, MET, FCC, UKCA
- Dimensions: 14.01 in x 9.44 in x 20.47 in (356 x 240 x 520 mm)
- Weight: 31.2 lb (14.2 kg)
What's In The Box
- Chauvet Pro Rogue R2E Spot
- Neutrik powerCON power cord
- (2) 140D Omega brackets with mounting hardware
