Hybrid LED Moving Head Light
The

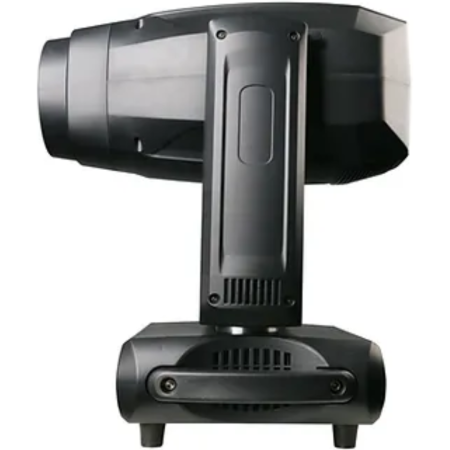

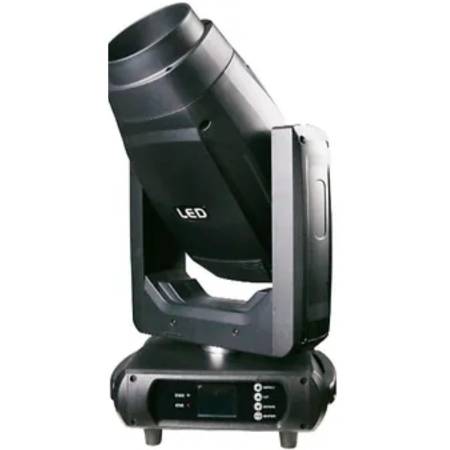

Crisp VERSATILIS 480CMY is a professional-grade hybrid moving head that combines powerful beam, spot, and wash functions into one fixture. Featuring CMY color mixing, motorized zoom, and dual rotating prisms, this 400W LED unit delivers exceptional flexibility and dynamic effects for concerts, theatrical productions, and live event lighting.
Crisp VERSATILIS 480CMY Competitive Differences
- All-in-one hybrid fixture: beam, spot, and wash modes
- Smooth CMY color mixing with motorized zoom and focus
Crisp VERSATILIS 480CMY Description
The
Crisp VERSATILIS 480CMY is designed for lighting professionals who need versatility, output, and visual depth in a compact yet powerful fixture. Its 400W LED source provides brilliant output with an ultra-long 50,000-hour lifespan, while the hybrid design allows it to function as a spot, wash, or beam light—all with motorized zoom and focus for ultimate control.
A full CMY color mixing system, plus CTO and CTB filters, delivers seamless transitions between bold primaries and smooth pastels. The fixture includes two prisms (8-facet and 3-facet), a rotating gobo wheel with 8 replaceable patterns, and a static gobo wheel with 11 fixed options, opening up countless creative possibilities.

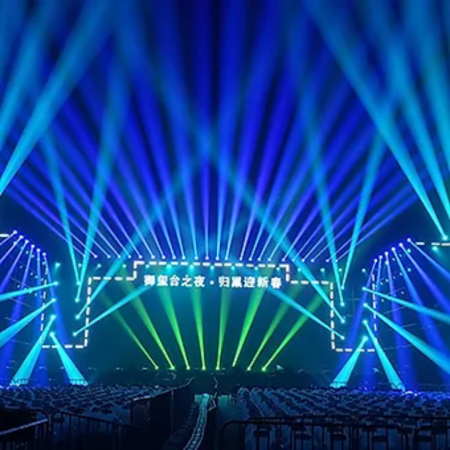

Its built-in strobe, dimmer, and macro effects add impact to any show, and it’s equipped with integrated clamps for quick rigging. Whether in a touring rig, house of worship, festival stage, or club install, this fixture provides professional-grade performance with easy DMX, RDM, and auto operation modes.
Model Features
- Hybrid moving head with beam, spot, and wash functions
- 400W LED light engine with 50,000-hour lifespan
- CMY color mixing + CTO + CTB + 9-color wheel
- Motorized zoom (3.5°–23.8°) and focus
- Dual rotating prisms (8-facet & 3-facet)
- Rotating and static gobo wheels with replaceable gobos
- Built-in strobe and dimmer for advanced visual effects
- RDM-compatible with software upload via DMX
- Integrated clamps for fast and secure installation
Model Specifications
- Light Source: 400W LED
- LED Lifespan: 50,000 hours
- Beam Angle: 3.5° – 23.8°
- Color System: 9 colors + open, CMY + CTO + CTB
- Rotating Gobos: 8 replaceable + open
- Static Gobos: 11 + open
- Prisms: 8-facet and 3-facet rotatable
- Strobe Rate: 1–25Hz
- Dimming: 0–100% linear
- Pan/Tilt: 540° / 270° (16-bit scanning)
- Control Modes: DMX, Auto, Sound, Master-Slave, RDM
- DMX Channels: 24CH
- DMX Connectors: 3-pin or 5-pin XLR In/Out
- Power Connector: PowerCon or True1 In
- Display: LCD touch screen with 4-button menu
- Power Input: AC 100–240V, 50/60Hz
- Power Consumption: 500W
- Fuse: 8A
- IP Rating: IP20 (indoor use)
- Operating Temp: -10°C to 40°C (14°F to 104°F)
- Dimensions: 14.4 x 11.4 x 26.9 in (365 x 290 x 682 mm)
- Weight: 48.1 lbs (21.8 kg)
Crisp Versatilis 480CMY
(Ableton SPL-LED-480CMY)
