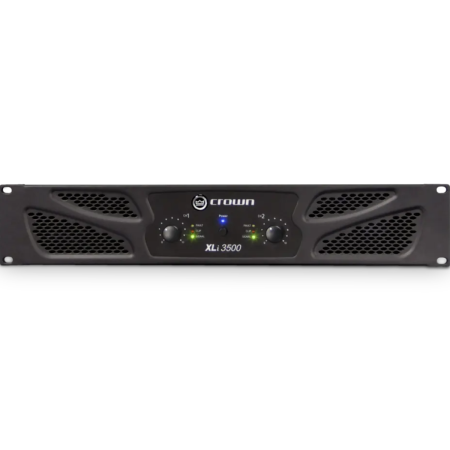

Crown XLI3500

2-Channel Power Amplifier

Crown XLI3500 is a 2-channel power amplifier designed for live sound, DJ systems, installed audio, and general sound reinforcement applications. With 2000W RMS power, selectable stereo, parallel, or bridge-mono operation, and rugged connectivity options, it provides dependable amplification for passive speaker systems.

Crown XLI3500 Competitive Differences

• 2000W RMS 2-channel amplifier for passive loudspeaker systems
• Selectable stereo, parallel, and bridge-mono operating modes
• User-selectable input sensitivity with 0.775V and 1.4V options
• Electronically balanced RCA and XLR inputs for flexible source compatibility
• Forced-air cooling helps prevent excessive thermal buildup during demanding use

Crown XLI3500 Description

The Crown XLI3500 is built for users who need reliable power amplification in a straightforward, rackmount format. Its 2-channel design supports stereo operation for standard left/right systems, parallel mode for signal distribution, and bridge-mono mode when higher single-channel output is needed.

With a 20Hz - 20kHz frequency response, low distortion performance, and a signal-to-noise ratio greater than 100dB, the XLI3500 is suited for music playback, DJ rigs, live performance systems, and venue installations. Selectable 0.775V or 1.4V input sensitivity allows the amplifier to match different mixers, processors, and source devices.

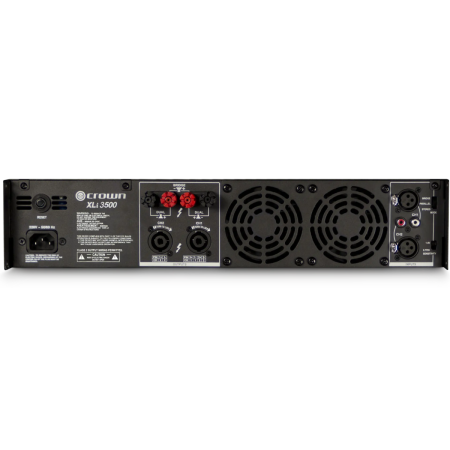

The amplifier includes electronically balanced RCA and XLR inputs, giving users flexible connection options for both consumer and professional audio gear. Binding post and Speakon outputs provide secure speaker connections for a variety of passive speaker configurations.

For durability, the Crown XLI3500 uses efficient forced-air cooling to help manage heat under load. Its dark gray rackmount chassis and 19-inch standard width make it easy to integrate into mobile racks, installed systems, and production setups.

XLI3500 Features

• 2-channel power amplifier
• 2000W RMS output
• Stereo, parallel, and bridge-mono operating modes
• User-selectable input sensitivity
• 0.775V and 1.4V input sensitivity options
• Electronically balanced RCA inputs
• Electronically balanced XLR inputs
• Binding post speaker outputs
• Speakon speaker outputs
• Efficient forced-air cooling system
• 20Hz - 20kHz frequency response
• Dark gray finish
• Standard 19-inch rackmount design

XLI3500 Specifications

• Amplifier Type: 2-channel power amplifier
• Power Output: 2000W RMS
• Operating Modes: Stereo, parallel, bridge-mono
• Frequency Response: 20Hz - 20kHz, +0/-1dB at 1W
• Total Harmonic Distortion: Less than 0.5%, 20Hz - 20kHz
• Intermodulation Distortion: Less than or equal to 0.35%, 60Hz and 7kHz at 4:1 from full rated output to -30dB
• Slew Rate: Greater than 10V/us
• Voltage Gain: 36dB
• Damping Factor: Greater than 200, 8 ohms, 10Hz - 400Hz
• Signal-to-Noise Ratio: Greater than 100dB, A-weighted
• Crosstalk: -75dB, -59dB below rated power, 20Hz - 1kHz
• Input Sensitivity: 0.775V or 1.4V for full rated power at 8 ohms
• Input Impedance: 20k ohms balanced, 10k ohms unbalanced
• Inputs: RCA and XLR
• Outputs: Binding post and Speakon
• Cooling: Forced-air cooling
• AC Line Voltage and Frequency: 120V 60Hz, 220V 50/60Hz, 230-240V 50/60Hz, configuration dependent
• IEC Power Connector: 15A
• Dimensions: 19 x 3.5 x 14.4 in (48.3 x 8.9 x 36.6 cm)
• Weight: 43 lb (19.5 kg)
• Finish: Dark gray

Crown XLI3500 (Crown XLI-3500)
