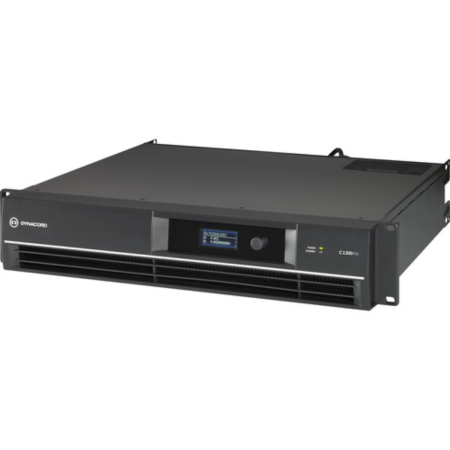

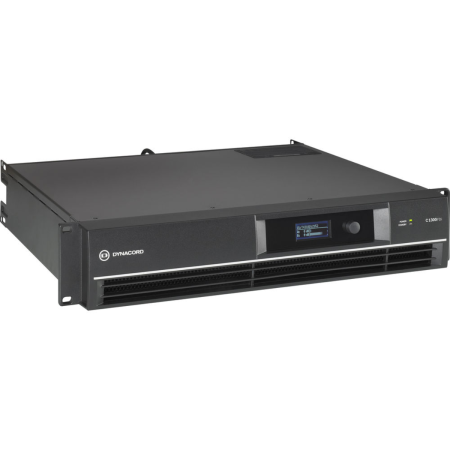

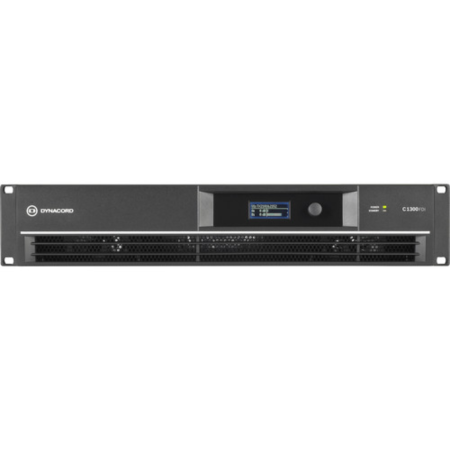

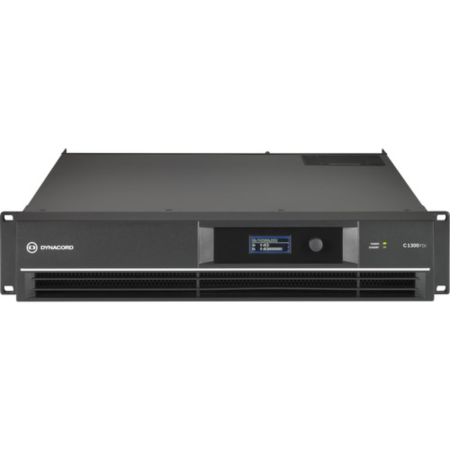

Dynacord C1300FDi

Installation Power Amplifier

Dynacord C1300FDi is a 2-channel installation power amplifier designed for permanent sound systems that need dependable output power, flexible speaker-line support, and advanced onboard DSP. With FIR-Drive speaker processing, Euroblock connections, low-Z and 70V/100V operation, and advanced protection circuitry, it is built for background music, live music, paging, and distributed audio applications.

Dynacord C1300FDi Competitive Differences

• Delivers up to 2 x 1000W at 2 ohms, 2 x 600W at 4 ohms, and 2 x 320W at 8 ohms in dual-channel mode
• Supports low-impedance operation plus 70V and 100V high-impedance speaker lines
• Integrated DSP includes FIR filters, PEQ, 31-band GEQ, crossovers, limiters, delay, and channel grouping
• Euroblock connectors simplify wiring for permanent installation applications
• Single-channel, dual-channel, and bridged modes provide flexible system design options
• Advanced protection circuitry helps protect the amplifier and connected loudspeakers

Dynacord C1300FDi Description

The Dynacord C1300FDi is engineered for installed audio systems in bars, restaurants, houses of worship, sports facilities, performing arts centers, and other venues that need reliable amplification with professional loudspeaker processing. Its robust power supply and Class-AB amplifier topology provide stable performance for demanding permanent installation environments.

In dual-channel operation, the amplifier delivers 2 x 1000W at 2 ohms, 2 x 850W at 2.6 ohms, 2 x 600W at 4 ohms, and 2 x 320W at 8 ohms. It also supports bridged operation and high-impedance 70V and 100V systems, making it suitable for both direct low-Z loudspeaker systems and distributed audio lines.

Onboard DSP gives installers the tools needed to tune and protect the system. Processing includes FIR filters, audio limiters, output delay per channel, PEQ per channel, 31-band GEQ per channel, and load impedance monitoring. FIR-Drive technology helps optimize loudspeaker settings for accurate system performance.

The Dynacord C1300FDi also includes Euroblock connectors, remote power-on delay, GPIO control support, standby power mode, and software-based configuration and monitoring. Its protection system covers high temperature, DC, HF, back-EMF, peak current, inrush current, and turn-on delay conditions for reliable operation.

C1300FDi Features

• 2-channel installation power amplifier
• Designed for permanent installation sound systems
• Suitable for background music, live music, paging, and distributed audio
• 2 x 1000W at 2 ohms in dual-channel mode
• 2 x 600W at 4 ohms in dual-channel mode
• 2 x 320W at 8 ohms in dual-channel mode
• Single-channel, dual-channel, and bridged operating modes
• Low-Z and 70V/100V high-impedance operation
• Integrated DSP with FIR-Drive technology
• FIR filters, PEQ, 31-band GEQ, crossovers, limiters, and delay processing
• True channel grouping control with additional DSP capabilities
• Euroblock connectors for installation wiring
• Remote power-on delay
• GPIO support for third-party control integration
• Power-saving standby mode reduces running costs and power consumption
• Advanced amplifier and loudspeaker protection circuitry
• Front-to-rear cooling with 3-stage fans
• Engineered for constant stability at 2 ohms
• Engineered in Germany

C1300FDi Specifications

• Amplifier Type: 2-channel installation power amplifier
• Topology: Class-AB
• Load Impedance: 2 ohms, 2.6 ohms, 4 ohms, 8 ohms
• High-Impedance Operation: 70V, 100V
• Single-Channel Output Power at 2 Ohms: 1100W
• Single-Channel Output Power at 2.6 Ohms: 950W
• Single-Channel Output Power at 4 Ohms: 660W
• Single-Channel Output Power at 8 Ohms: 350W
• Dual-Channel Output Power at 2 Ohms: 2 x 1000W
• Dual-Channel Output Power at 2.6 Ohms: 2 x 850W
• Dual-Channel Output Power at 4 Ohms: 2 x 600W
• Dual-Channel Output Power at 8 Ohms: 2 x 320W
• Bridged Output Power at High Impedance: 1 x 600W at 2 ohms and 2.6 ohms
• Bridged Output Power at 4 Ohms: 2000W
• Bridged Output Power at 8 Ohms: 1200W
• Maximum RMS Voltage Swing: 55.3V
• Voltage Gain: 32.0 dB, ref. 1 kHz
• Maximum Input Level: +21 dBu
• Input Impedance: 20 kOhms
• Frequency Response: 10 Hz to 21 kHz, ±1 dB
• Signal-to-Noise Ratio: >104 dB, A-weighted
• Output Noise: <-68 dBu
• Total Harmonic Distortion: <0.05% at 450W / 4 ohms, MBW = 80 kHz, 1 kHz
• IMD SMPTE: <0.1%, 60 Hz / 7 kHz
• DIM 30: <0.05%, 3.15 kHz / 15 kHz
• Crosstalk: <-80 dB, ref. 1 kHz, at 100W / 4 ohms
• Signal Processing: FIR filters, audio limiters, output delay per channel, 31-band GEQ per channel, PEQ per channel, load impedance
• Protection: Audio limiters, high temperature, DC, HF, back-EMF, peak current limiter, inrush current limiters, turn-on delay
• Cooling: Front-to-rear, 3-stage fans
• Power Requirement: 120 VAC, 60 Hz
• Power Consumption: 550W at 1/8 maximum output power at 4 ohms
• Mains Fuse: T20AH
• Safety Class: Class I
• Operating Temperature: 40°F to 105°F (4°C to 41°C)
• Color: Black
• Dimensions: 3.5 x 19.0 x 18.2 in (88.9 x 482.6 x 462.3 mm)
• Weight: 28.4 lb (12.9 kg)
• Package Weight: 34.29 lb
• Box Dimensions: 23.4 x 22.3 x 8.4 in

What's In The Box

• Dynacord C1300FDi power amplifier
• Power cord
• USB cable
• Euroblock connectors
• Power remote connectors
