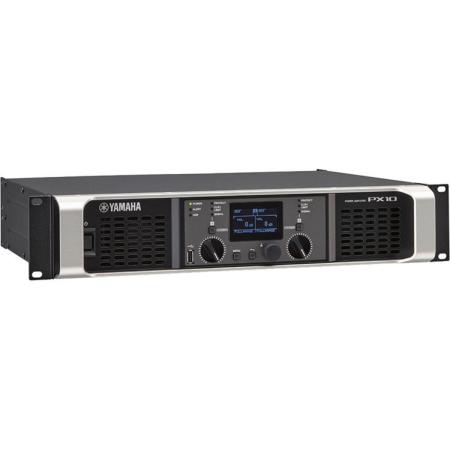

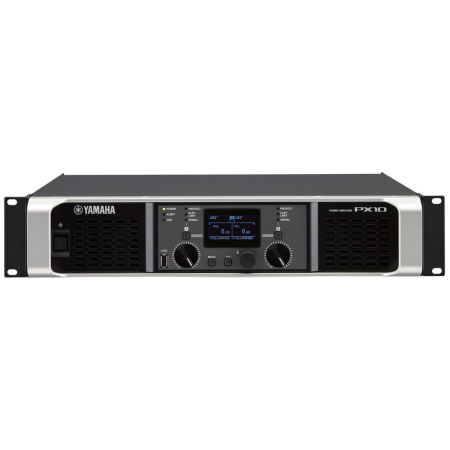

Yamaha PX10

2-Channel Power Amplifier

Yamaha PX10 is a high-output 2-channel power amplifier built for sound reinforcement, installed audio, and studio applications where clean power, system control, and long-term reliability matter. With Class D efficiency, integrated DSP, and flexible connectivity, it offers a practical solution for powering passive loudspeakers in a wide range of professional environments.

Yamaha PX10 Competitive Differences

• Delivers up to 1200W per channel at 4 ohms with a lightweight Class D amplifier engine and custom LSI design
• Integrated DSP includes PEQ, crossover, filters, delay, limiter, D-CONTOUR processing, and Yamaha speaker presets

Yamaha PX10 Description

The Yamaha PX10 combines high output power with intelligent signal processing in a durable 2U chassis. Designed around a newly developed Class D amplifier engine with a custom LSI chip and PLL technology, it is made to provide strong performance while keeping weight down and maintaining excellent efficiency. This makes it a strong choice for mobile sound systems, fixed installations, and studio monitoring applications that demand dependable amplification.

Beyond raw power, the PX10 includes a sophisticated DSP section that helps users optimize system performance without needing additional outboard processors. Built-in functions include parametric EQ, crossover, high-pass and low-pass filters, delay, limiter control, and Yamaha’s D-CONTOUR multi-band dynamic processing for front-of-house and monitor use. Speaker presets for Yamaha passive loudspeakers further simplify setup and system matching.

The amplifier is also designed to be approachable for users at different experience levels. Basic mode speeds up setup for straightforward applications, while Advanced mode provides deeper control over routing, gain, sensitivity, impedance, and processing parameters. The Config Wizard helps streamline speaker setup even further, and presets can be stored internally or saved to USB for recall across compatible Yamaha PX amplifiers.

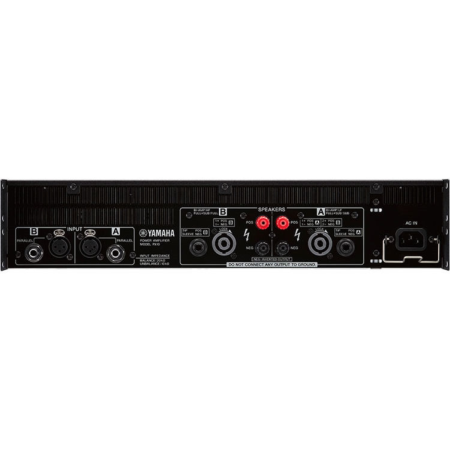

With XLR and 1/4-inch TRS inputs plus SpeakON, binding post, and 1/4-inch phone outputs, the PX10 adapts easily to a variety of live sound and installation scenarios. Its sturdy chassis, panel lock function, dual variable-speed fans, and multiple protection circuits help support safe and secure operation during extended use on the road or in fixed systems.

PX10 Features

• 2-channel Class D power amplifier
• Up to 1200W x 2 at 4 ohms
• Custom LSI amplifier engine with PLL technology
• Flexible onboard PEQ, crossover, filters, delay, and limiter functions
• Yamaha speaker presets for supported passive loudspeakers
• Config Wizard for optimized system setup
• Digital routing modes including dual, parallel, single, and sum
• D-CONTOUR multi-band dynamic processing
• Basic mode for quick setup and Advanced mode for precise control
• XLR and 1/4-inch TRS inputs
• SpeakON, binding post, and 1/4-inch phone speaker outputs
• USB save/load, preset update, and firmware update support
• 8 user amplifier presets
• Panel lock function for secure settings
• Two 16-step variable-speed cooling fans
• Lightweight 2U chassis

PX10 Specifications

• Amplifier Type: 2-channel Class D, balanced output circuit (BTL)
• Output Power at 8 ohms: 1000W x 2
• Output Power at 4 ohms: 1200W x 2
• Output Power at 2 ohms: 700W x 2
• Sampling Frequency: 48 kHz
• A/D and D/A Conversion: 24-bit linear, 128 times oversampling
• Total Harmonic Distortion: 0.1% (1 kHz, 10W), 0.3% (1 kHz, half power)
• Frequency Response: ±1.0 dB (1W, 8 ohms, 20 Hz to 20 kHz)
• S/N Ratio: 101 dB (A-weighted, 8 ohms, gain setting = +14 dBu)
• Crosstalk: Less than -60 dB
• Maximum Input Voltage: +24 dBu
• Input Impedance: 20 kOhm balanced, 10 kOhm unbalanced
• Inputs: 2 x XLR-3-31, 2 x 1/4-inch TRS
• Speaker Outputs: 2 x Neutrik speakON NL4, 2 x binding post pairs, 2 x 1/4-inch TS
• Other Connections: USB 2.0 Type-A, AC inlet with cord clamp
• Processors: Input summing, D-CONTOUR, delay, HPF/LPF, speaker processor with 6-band PEQ, limiter, and delay
• Latency: 1.5 ms (analog input to speakers)
• Presets: 8 user presets plus factory speaker presets for Yamaha passive speakers
• Cooling: 2 x 16-step variable-speed fans, front-to-rear airflow
• Power Consumption: 310W (1/8 max power, 4 ohms), 60W (4 ohms, idling)
• Power Requirements: 100V 50/60Hz, 120V 60Hz, or 220-240V 50/60Hz depending on region
• Width: 18.9 in (480 mm)
• Height: 3.5 in (88 mm), 2U
• Depth: 15.3 in (388 mm)
• Weight: 16.3 lb (7.4 kg)
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

What's In The Box

• Yamaha PX10 power amplifier
• AC adaptor (2 m)
• USB cover
• Owner’s manual
• Spec sheet

Yamaha PX10 (Yamaha PX-10)
