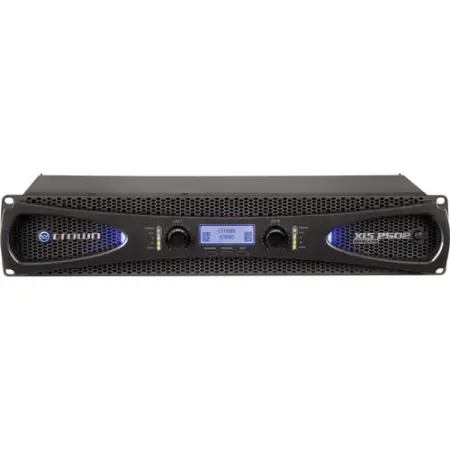

The Crown XLS 2502 Stereo Power Amplifier offers 775W at 4 Ohm in a lightweight chassis using the company's ultra-efficient DriveCore Class D amplification platform. The amplifier includes built-in DSP with a dedicated band pass filter per channel, an integrated PureBand Crossover System, and Peakx Limiters to provide maximum output while protecting your speakers.
For inputs, the rear panel includes a pair of XLR-3F connectors, 1/4" and RCA inputs for flexible connections with a selectable input sensitivity of either 1.4 Vrms or 0.775 Vrms. Outputs are provided on both speakON and binding post connectors.
You can set the amplifier's sleep mode for a designated period of time without having to press a button, as well as turn off all LED indicators except for clip and thermal to reduce distractions in dark venues. A security mode can be engaged to disable menu buttons, which can be locked and unlocked by entering a combination code. Full system reset allows for factory settings to be restored and a remote power trigger allows you to turn the unit on and off.
Features:
775W at 4 Ohm Per Channel
Band Pass Filter Per Channel
Selectable Input Sensitivity
Security Settings Disables Menu Buttons
Crown Audio XLS2502 Specs:
Power Amplifier
Number of Channels 2
Power Rating 2 Ohms:
1200 W per Channel
4 Ohms:
775 W per Channel
2400 W Bridged
8 Ohms:
440 W per Channel
1550 W Bridged
Performance
Frequency Response 20 Hz to 20 kHz +0/-1 dB (at 1 W)
Damping Factor >200
Input Sensitivity 1.4 Vrms
SNR >103 dB
THD
Intermodulation Distortion
Crosstalk >85 dB (at 1 khz)
>55 dB (at 20 kHz)
Connectivity
I/O 2 x XLR Input
1 x 2RCA Input
2 x 1/4" Thru
2 x Binding Post Pair Output
2 x speakON NL4 Output
Physical
Dimensions 19.0 x 3.5 x 10.7" / 48.3 x 8.9 x 27.2 cm
Weight 10.8 lb / 4.9 kg
Packaging Info
Package Weight 14.55 lb
Box Dimensions (LxWxH) 21.6 x 14.6 x 6.1"
