High-Power 2-Channel Amplifier for Passive Sound Systems
The

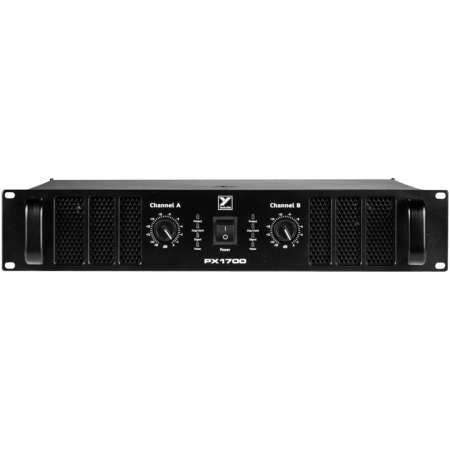

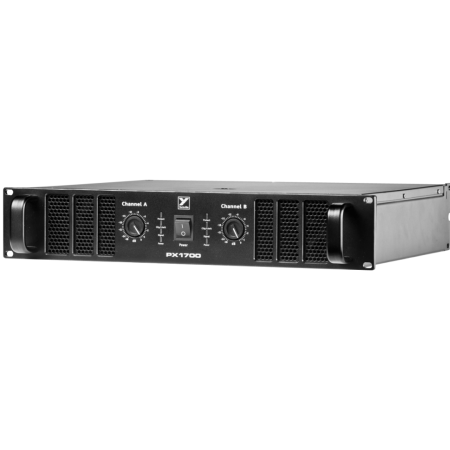

Yorkville PX1700 is a robust, Class H stereo power amplifier designed for small to mid-sized venues using passive loudspeakers. With powerful output, flexible I/O options, and reliable protection features, this amplifier is a top-tier choice for clubs, churches, and touring systems needing high-performance audio in a compact 2U chassis.
Yorkville PX1700 Competitive Differences
- 850W per channel @ 2Ω or 1700W bridged @ 4Ω for full-range or subwoofer applications
- Advanced Class H design for high efficiency and reduced heat output
- Toroidal transformer minimizes hum and electromagnetic interference
- Transparent peak limiting and comprehensive protection (short circuit, DC, thermal)
- Soft-start circuitry protects connected speakers from power-on surges
- All-steel chassis and rackmountable 2U design for road or install use
Yorkville PX1700 Description
The

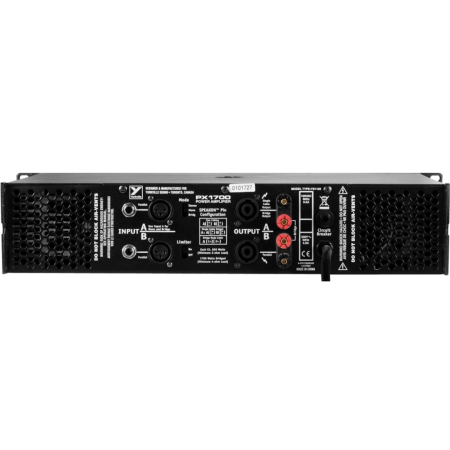

Yorkville PX1700 is built to deliver consistent, clean audio power under demanding conditions. Each channel offers up to 850 watts at 2 ohms, or it can be bridged for 1700 watts at 4 ohms, making it ideal for driving both full-range cabinets and subwoofers. Balanced XLR and 1/4" inputs, along with speakON® and binding post outputs, ensure compatibility with nearly any system configuration.
The PX1700 includes a fan-cooled, front-to-rear ventilation path and internal protection for thermal overload, short circuits, and DC offset, enhancing its durability and performance. With THD less than 0.1% and a high damping factor, it maintains exceptional sound quality at all volumes.
PX1700 Features
- 2-channel stereo/bridgeable Class H amplifier
- 850W/ch @ 2Ω, 600W/ch @ 4Ω, 400W/ch @ 8Ω
- 1700W bridged mono @ 4Ω
- Balanced XLR and 1/4" TRS inputs
- Outputs via binding post and speakON® connectors
- Peak limiter with defeat option
- Short circuit, DC, and thermal protection circuits
- Soft start circuitry for speaker protection
- Toroidal power transformer for clean, low-noise power delivery
- All-steel 2U rackmountable chassis
PX1700 Specifications
- Amplifier Class: H
- Continuous Power @ 8Ω: 400W/ch
- Continuous Power @ 4Ω: 600W/ch
- Continuous Power @ 2Ω: 850W/ch
- Bridged Power @ 4Ω: 1700W
- Frequency Response: 30 Hz – 20 kHz (±1 dB)
- THD: <0.1%
- S/N Ratio: -100 dB unweighted
- Input Sensitivity: 1.4 V
- Damping Factor (30–400 Hz @ 8Ω): >300
- Crosstalk: -75 dB @ 1 kHz / -60 dB (20 Hz–20 kHz)
- Input Impedance: 30kΩ (balanced), 15kΩ (unbalanced)
- Cooling: Fan-cooled, front-to-rear path
- Dimensions: 16" x 19" x 3.5" (40.6 x 48.3 x 8.9 cm)
- Weight: 35 lbs (16 kg)
What's In The Box
- Yorkville PX1700 Power Amplifier
- User Manual
- AC Power Cable
Yorkville PX1700
(Yorkville PX-1700)
