Crown XTI4002

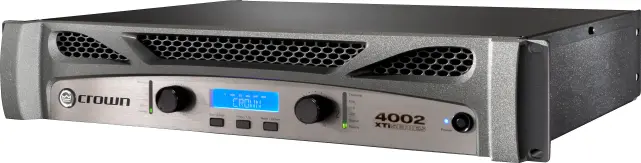

Crown XTI 4002 Power Amplifier

The Crown XTi Series
There's no debate – when you choose Crown's XTi 2 Series, you're choosing one of the most powerful and innovative amplifiers on the market today. That's because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.

Next Generation Features

Peakx Plus Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application
New system monitoring provides software visibility of AC line voltage and power supply temperature
Integrated cast-aluminum handles for easy handling and enhanced durability
Locking power cord clip provides a secure connection between the amplifier and power cord
Updated HiQnet System Architect™ control software
Increased number of presets to a total of 50; 49 of which are user definable

Crown's Integrated Processing

Input EQ
6 parametric filters per channel with adjustable Q, ±15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed.

Crossover Filters
Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes ± 15 dB bandpass gain and polarity control.

Output EQ
8 parametric filters per channel with adjustable Q, ±15 dB boost/cut. This 8-filter EQ section can be bypassed.

Delay
For signal alignment of driver; 50 mS of total delay.

SubHarmonic Synth
Takes the low-frequency content of the input signal and "synthesizes" a new signal that is the same as the input signal but one octave lower. The new synthesized signal is then mixed with the original signal to create the effect. New: Users now have control over frequency, gain, and filter type.

Peakx Plus Limiter
User defeatable limiter that allows users to control Threshold, Attack, and Release times.

Presets
50 total presets, 49 of which are user-definable.

The XTI Series Performance

Sensitivity (for full rated power at 4 ohms)
1.4 Vrms

Frequency Response (at 1 watt, 20 Hz - 20 kHz)
+0 dB, –1 dB

Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms)
XTi1002/2002/4002: 100 dB (A weighted)
XTi6002: 103 dB (A weighted)

Total Harmonic Distortion (THD)
< 0.5%

Damping Factor 20 Hz to 1 kHz
> 500

Crosstalk (below rated power)
20 kHz - 1 kHz: > 70 db

Input Impedance (nominal)
20k ohms balanced, 10k ohms unbalanced

Maximum Input Signal
+22 dBu typical

AC Line Voltage and Frequency Configurations
100 VAC, 120 VAC, 220-240 VAC 50/60 Hz

AC Line Current
(120 VAC amplifier playing 1/8 power pink noise into 4 ohms per ch)


XTi1002: 6.8A; no more than 38W at idle
XTi2002: 8.3A; no more than 38W at idle
XTi4002: 10.5A; no more than 38W at idle
XTi6002: 15.3A; no more than 180W at idle

Operating Temperature
0°C to 40°C at 95% relative humidity (non-condensing)

Controlling your Crown XTI 4002 Power Amplifier

Level
Two front-panel rotary level controls, one for each channel

Power Switch
On/Off switch applies AC power to the amplifier

Sel/Prev/Next Buttons
Three buttons near the LCD screen that are used to access menu items and front panel lockout

LCD Screen
Backlit liquid crystal display that shows preset and processing status

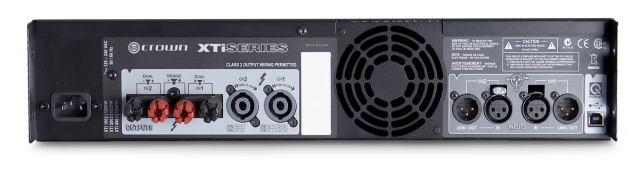

The In's and Out's of the Crown XTI Power Amplifier

Input Connectors
XLR, one per channel

Link/Out Connector
Loop-thru signal from input connector for linking another amplifier, one per channel.

Output Connectors
Two Neutrik Speakon NL4MP output connectors. Channel-1 Speakon® is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon® connectors).

HiQnet USB Connector
Type B, connects to HiQnet network.

Crown XTI 4002 2-Channel Power Amplifier Construction

Chassis
Steel

Front Panel
Cast-aluminum

Cooling
Proportional speed fan with front-to-rear airflow.

Dimensions
XTi 1002/2002/4002: 19" (W) x 3.5" (H) x 12.25" (D)
XTi 6002: 19" (W) x 3.5" (H) x 16.2" (D)

Net Weight
XTi 1002/2002/4002: 18.5 lbs (8.4kg)
XTi 6002: 24.0 lbs (10.9kg)

Shipping Weight
XTi 1002/2002/4002: 21.5 lbs (9.8kg)
XTi 6002: 30.0 lbs (13.6kg)
