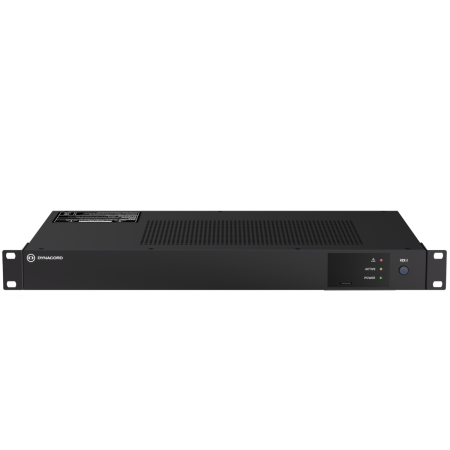

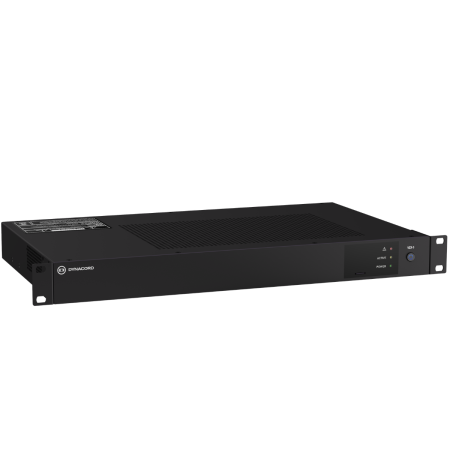

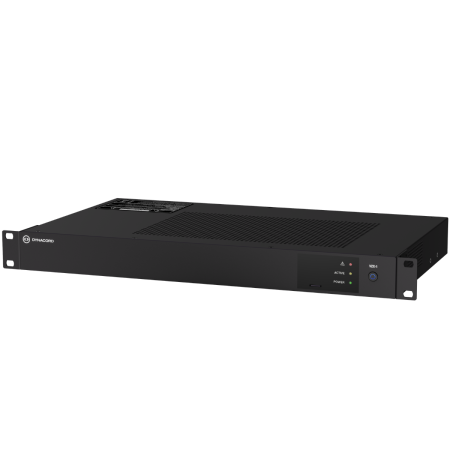

Dynacord VZX-8

8-Zone Audio Processor

Dynacord VZX-8 is an 8-zone audio processor designed for flexible commercial sound systems that require routing, mixing, paging, and advanced DSP control. With 20 processed input sources, 8 processed zone outputs, and support for accessory controllers, it provides a powerful system hub for installed audio applications.

Dynacord VZX-8 Competitive Differences

• 20 processed input sources including 8 balanced mic/line inputs
• Full Matrix DSP with AMM, ANC, AGC, FIR EQ, room EQ, speaker EQ, compression, noise gate, and effects

Dynacord VZX-8 Description

The Dynacord VZX-8 is built for installers and system designers who need a flexible processor for multi-zone audio systems. It supports 20 processed input sources and 8 processed zone outputs, making it suitable for venues such as hospitality spaces, retail environments, schools, houses of worship, corporate facilities, and entertainment spaces.

Its Full Matrix DSP provides detailed control over inputs and outputs, including input EQ, compression, AGC, noise gate, effects, room EQ, and speaker EQ with FIR processing. The Virtual Mixer with Automixer functionality and effects can be used for live mixing on any zone, allowing the VZX-8 to handle both everyday background music and more active presentation or event needs.

The included 32 GB MicroSD card can store music, messages, and configuration files, helping support playback, announcements, and system setup. Compatibility with SONICUE speaker databases for Electro-Voice and supported third-party loudspeakers gives installers access to speaker presets that help maximize system performance quickly.

For system expansion and user control, the VZX-8 includes two RJ45 accessory ports that support cable lengths up to 1640 feet per port and allow up to 16 total devices. Add VCS-8 call stations and VWP wall panel controllers to provide zone paging, level control, source selection, and media playback control throughout the installation.

VZX-8 Features

• 8-zone audio processor for commercial installations
• 20 processed input sources
• 8 processed zone outputs
• 8 balanced mic/line inputs
• Full Matrix DSP processing
• Input EQ, compression, AGC, noise gate, and effects
• Room EQ and speaker EQ with FIR processing
• Virtual Mixer with Automixer (AMM)
• ANC, AGC, EQ with FIR, and advanced DSP tools
• Live mixing available on any zone
• 32 GB MicroSD card included for music, messages, and configuration files
• Compatible with SONICUE speaker databases for Electro-Voice and supported third-party loudspeakers
• 2 RJ45 accessory ports for system controllers
• Supports cable lengths up to 1640 ft (500 m) per accessory port
• Supports up to 16 total accessory devices
• Compatible with Dynacord VCS-8 call stations
• Compatible with Dynacord VWP wall panel controllers

VZX-8 Specifications

• Product Type: 8-Zone Audio Processor
• Processed Input Sources: 20
• Balanced Mic/Line Inputs: 8
• Processed Zone Outputs: 8
• DSP: Full Matrix DSP
• Virtual Mixer: Yes, with Automixer (AMM) and FX
• Processing: ANC, AGC, EQ with FIR, Compression, Noise Gate, Effects, Room EQ, Speaker EQ
• Storage: 32 GB MicroSD Card Included
• Accessory Ports: 2 x RJ45
• Accessory Cable Length: Up to 1640 ft (500 m) per port
• Accessory Device Support: Up to 16 Total Devices
• Compatible Controllers: Dynacord VCS-8 Call Stations and VWP Wall Panel Controllers

Electro-Voice VZX-8 (Electro-Voice VZX-8-US)
